JDI Stereo Features

1
2
3

Thru

Thru-put from the JDI Stereo to the amp. Hi impedance will not load instrument down.

1

Inputs Left & Right

Unbalanced 1/4” input jacks used to connect instruments to the JDI Stereo.

2

-15dB Pad

Reduces the input sensitivity for active basses and high output keyboards.

3
1
2
3
4

XLR Out

Balanced 150Ω mic-level output wired to the AES standard with pin-1 ground, pin-2 (+) and pin-3 (-).

1

Ground

Disconnects pin-1 at XLR output to reduce hum and buzz caused by ground loops.

2

No Slip Pad

Provides electrical & mechanical isolation and keeps the JDI Stereo from sliding around.

3

Powder Coat

Durable finish keeps your JDI Stereo looking great for years.

4
1
2
3
4

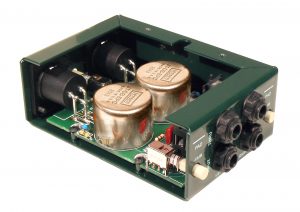

Mil-Spec PCB

Full ground plane for noise-free performance, double sided for durability.

1

Jensen Tranformers

Nickel core for the best signal transfer and MuMetal® shield for protection against EMI.

2

Metal Switches

Rated at over 20,000 cycles for added durability and years of use.

3

14-Gauge Steel

I-Beam construction prevents circuit board from torque which could lead to part failure.

4

JDI Stereo Resources

Part no: R800 1012 00
