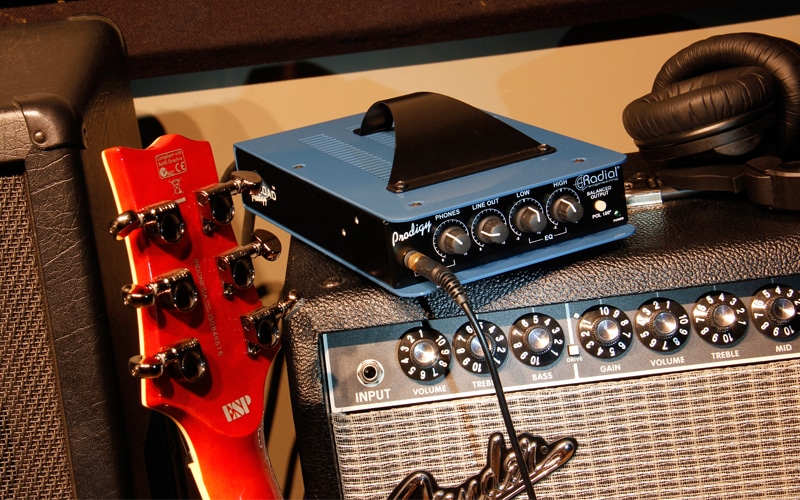

The Headload Prodigy is a combination load box and DI that enables one to drive a guitar amp at a higher output in order to maximize the tone, yet produce a lower stage volume when needed.
Like the original Headload, the Prodigy employs custom made cement-encrusted resister coils to convert the excessive power from the amplifier to heat and is able to withstand up to 100 watts RMS. The Prodigy may be used in three different ways, depending on the need. First, it may be used as a simple direct box connection via a built-in Radial JDX Reactor™. This combines a reactive load with a proprietary filter bank to emulate the tone of a 4 x 12 half stack using a Shure SM57. The second is as a load box where you can attenuate 50% of the output power for use on quiet stages. Third, the Prodigy can be used without a cabinet for completely silent recording. In all cases, the balanced JDX output is available. This is transformer isolated to eliminate hum and buzz caused by ground loops and is equipped with a pin-1 ground lift and polarity reverse. One simply connects the head to the Headload Prodigy and the desired speaker output to suit.
In order to optimize the playing experience for in-ear monitors, a dual band EQ on the front panel is included. To add greater connectivity options, two additional ¼” outputs are included with one that is post EQ, post JDX, the other pre EQ, pre JDX. These can be used to feed additional amplifiers, effects racks or recording systems and adjusted using the front panel level control. Headphones have their own control for volume.
Housed in 14-gauge steel, the Headload Prodigy features Radial’s unique book-end design that creates protective zones around the switches and controls. An internal I-beam construction adds tremendous rigidity, protecting the internal PC board from torque which could lead to solder joints going cold prematurely. One or two Prodigys may be rack-mounted into a single 19″ rack space using an optional rack kit. Power is supplied by an external 15VDC supply.
