Specifications

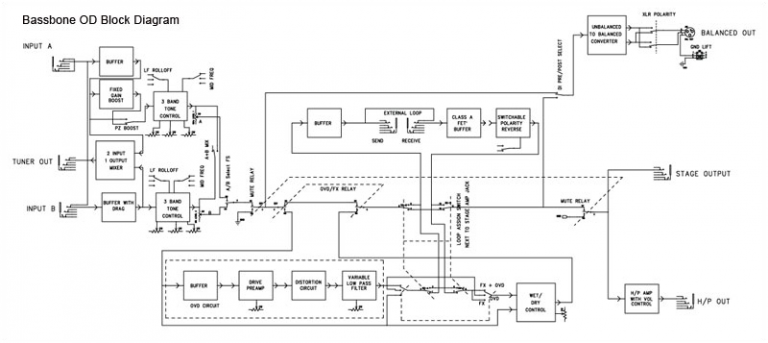

Block Diagram

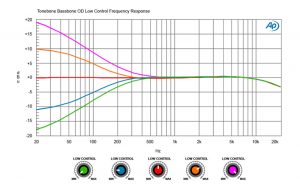

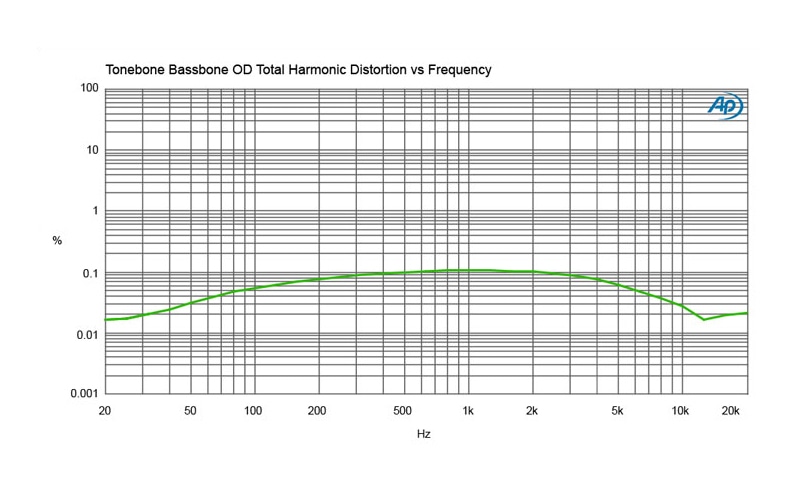

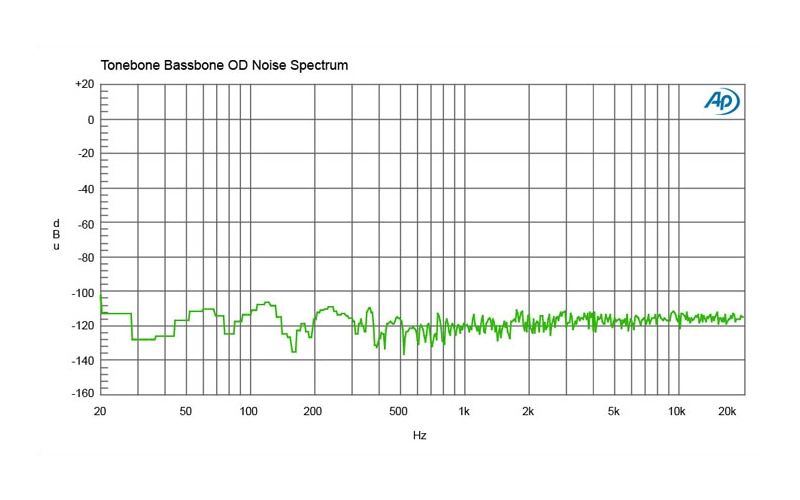

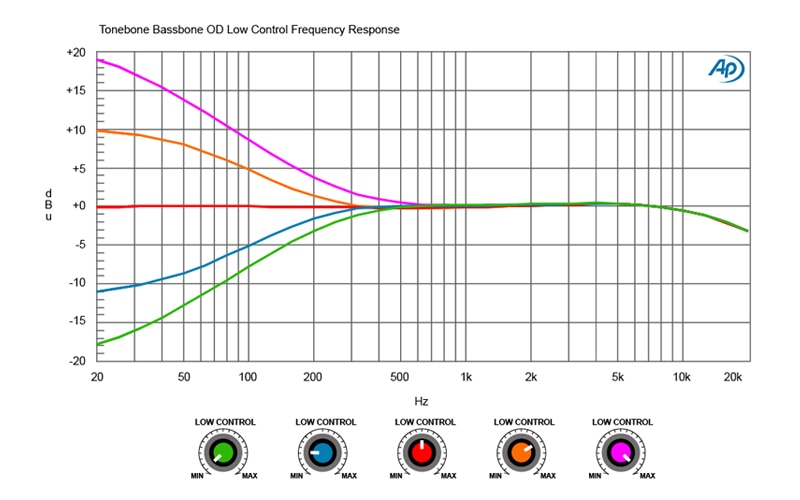

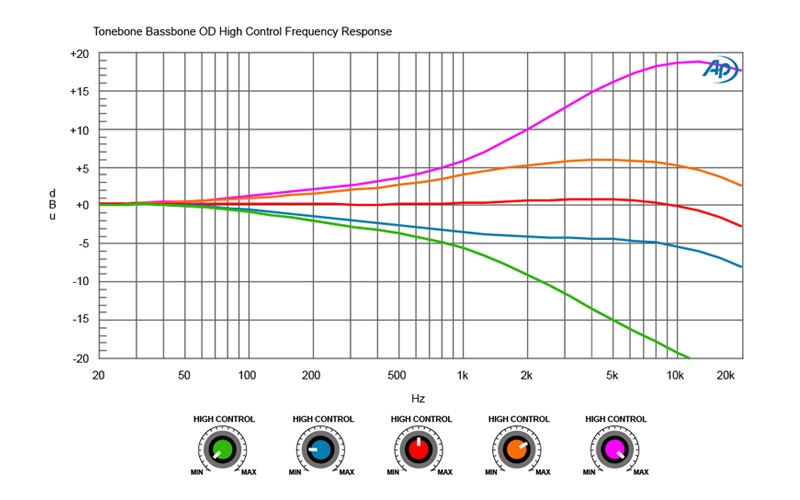

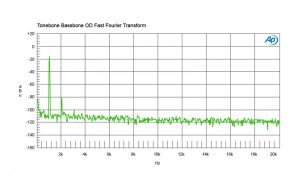

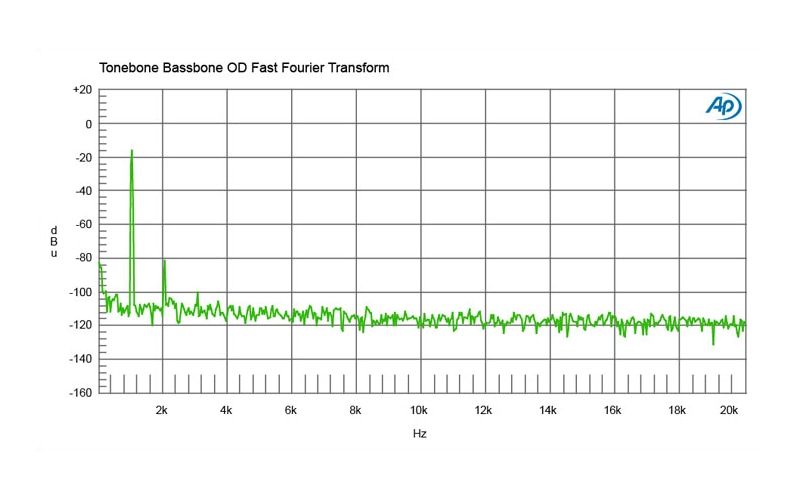

Graphs
| Specifications | ||
|---|---|---|
| Audio circuit type: | Discrete class-A FET input with low noise ICs. | |
| Frequency response: | 20Hz ~ 18kHz | |
| Dynamic range: | 85dB | |
| Gain: | Unity gain device | |
| Clip Level: | +10dBu at XLR | |

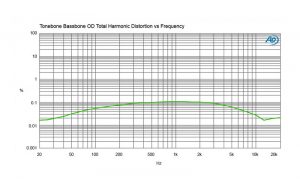

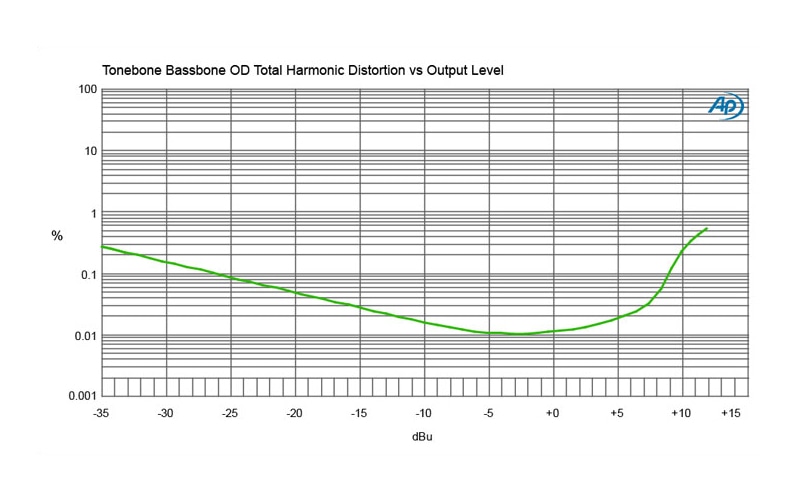

| Total harmonic distortion: | 0.05% @ -15dBu | |
| Intermodulation Distortion: | 0.2% @ -20dBu | |
| Input Impedance: | CH-A: 220K/10M CH-B Variable from 22K to 1.8M | |
| Output Impedance: | 300 Ohms at XLR | |
| Equivalent Input Noise: | -92dBu at XLR | |

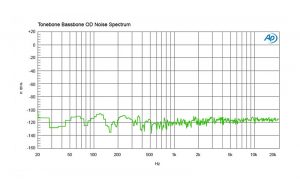

| Noise Floor: | -100dB | |
| Maximum Input: | +7 dBu | |
| Features | ||
| 180° polarity reverse, Ground lift, HPF, Drag Control, Level Control, Phase Adjustment, Effects Loop, EQ Control, Boost | ||
| Input Connectors: | 1/4" | |
| Output Connectors: | 1/4", XLR, 3.5mm | |
| General | ||
| Construction: | 14-gauge steel | |
| Size (L x W x D): | 8" x 4.2" x 2" (203 x107 x 48mm) | |
| Weight: | 2.55lb (1157 grams) | |
| Shipping size (L x W x D): | 10.75" x 5"x 2.75" (273 x 127 x 70mm) | |
| Shipping weight: | 2.8lb (1270 grams) | |
| Power: | +15VDC/400mA adapter included | |
| Conditions: | For use in dry locations only between 5°C and 40°C | |
| Warranty: | Radial 3-year, transferable | |

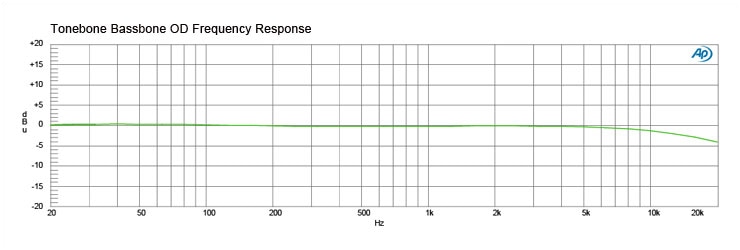

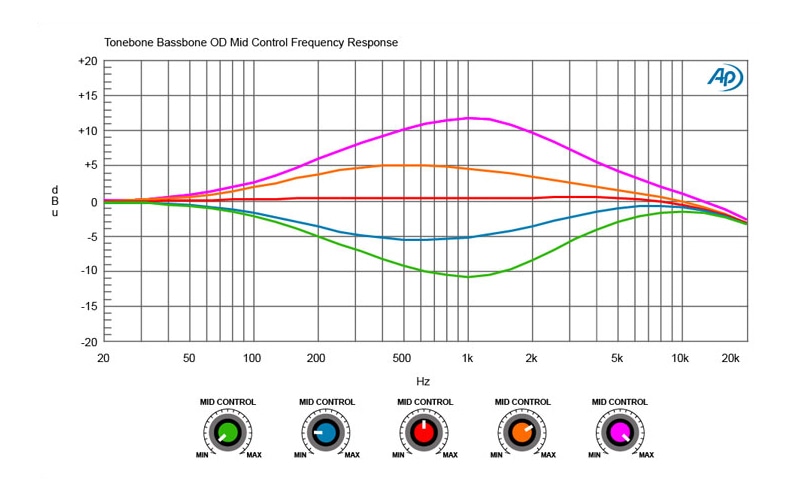

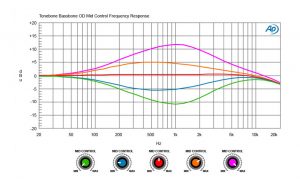

Frequency Response
What do these graphs mean? Learn what to look for and why it matters.
Learn More
