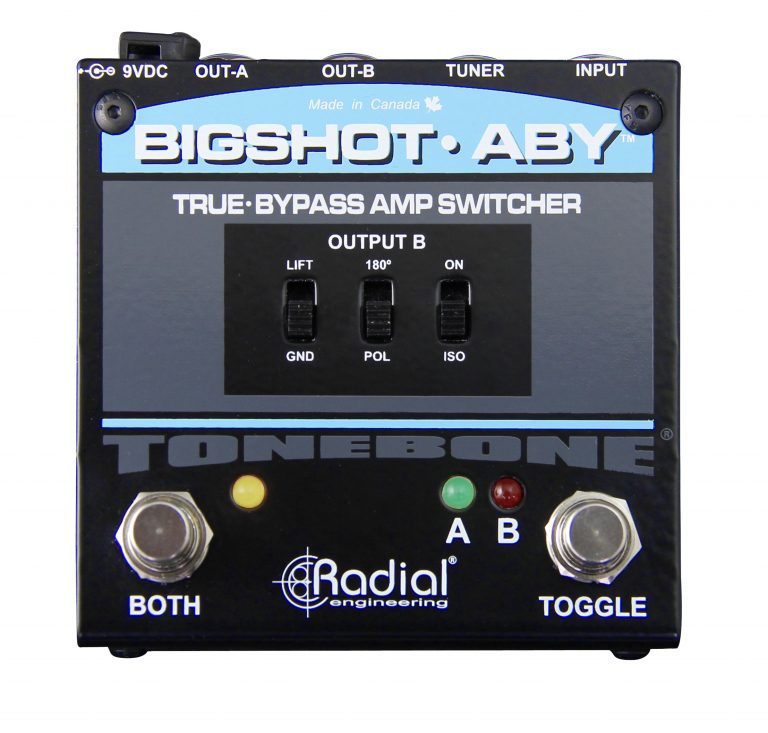

Both
Footswitch turns both outputs A and B on at the same time.
Both LED
Lets you know when both amplifier outputs are active.
Lift
Disconnects the ground from the cable shield on output B.
180°
Reverses the phase on output B. This switch only works when the ISO transformer is engaged.
ISO
Engages the internal isolation transformer on output B to eliminate the hum and buzz caused by ground loops.
A-B LED
High visibility LED indicators indicate which output is active.
A-B
Footswitch toggles between outputs A or B.

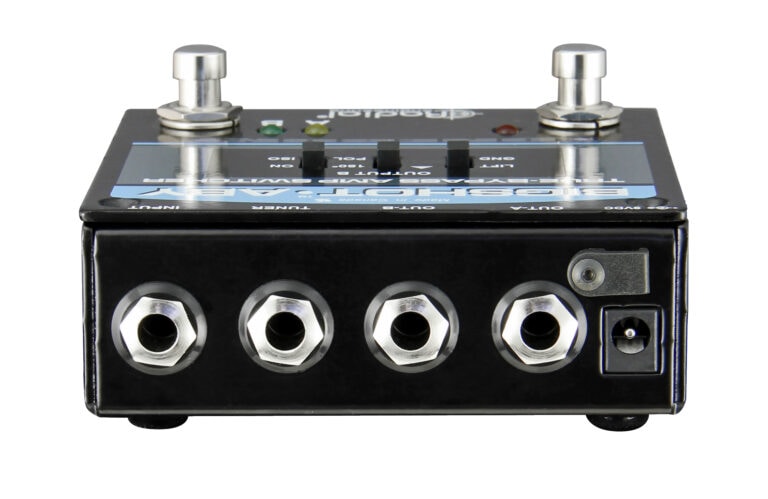

Input
Standard ¼” jack connects the instrument to the ABY.
Tuner
Seperate ¼” output for your guitar tuner. It is always on.
Output-B
¼” jack connects to your main amp.
Output-A
¼” jack connects to your main amp.
PSU
Connection for 9-12 volt DC (center pin negative)
Connectors
Glass filled nylon housing is tougher than steel and provides isolation for reduced noise. Nickel silver contacts will not tarnish.
Extra Durable Switches
Switches with metal outer casing are rated at over 20,000 cycles for added durability.
Footswitch
Heavy duty 9 pole footswitches control signal flow and LED indicators.
Transformer Isolated
Custom Radial transformers for distortion-free signal transfer and 100% isolation from ground loop hum.

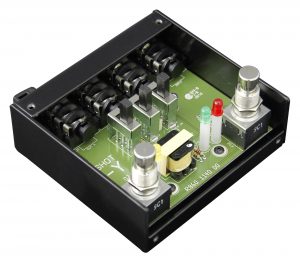

Mil-Spec PCB
Full ground plane for noise free performance. Double sided through hole solder points for durability.
14-Gauge Steel
Prevents circuit board from being torqued which could lead to part failure.
