Antenna Cavity
Milled Sintra T-shape cavity for the hidden antenna. Allows wireless reception distances of 12 meters (40’) or more with line of sight between devices.

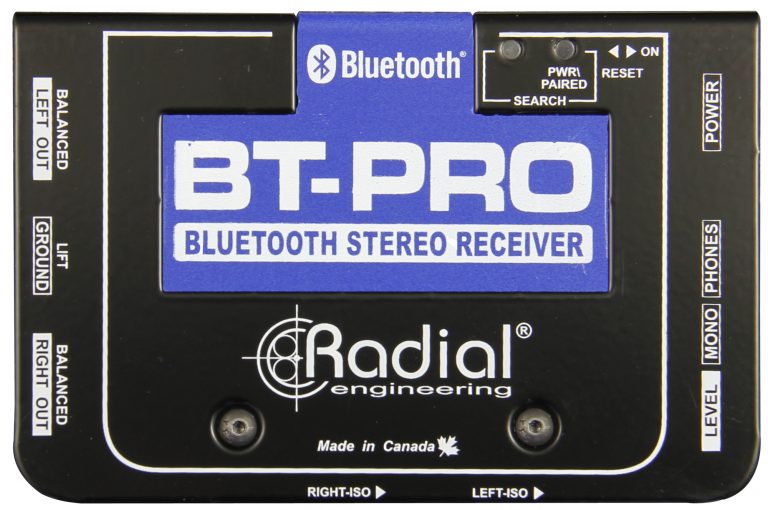

Pairing LEDs
Illuminate to provide visual feedback status of the wireless Bluetooth connection.
On/Off Switch
Activates Bluetooth pairing. Turn off and back to on to reset the BT-Pro or connect to a different Bluetooth device.

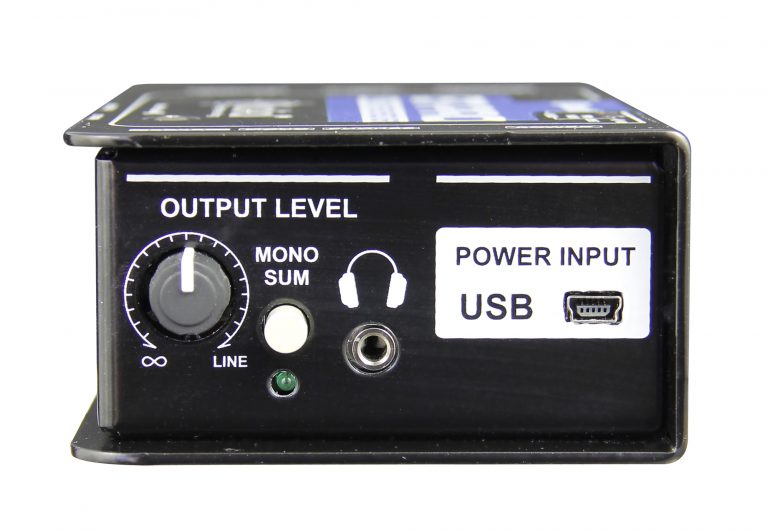

Level
Used to set the balanced output level at the XLRs. Also controls the headphone volume for troubleshooting.
Mono
Sums the output from the stereo digital audio converter to mono. Used to save channels or split signal to more than one destination.
Phones
Mini 3.5mm TRS stereo headphone connection used to check signal coming from the Bluetooth receiver and digital audio converter output.
USB
Power input – employs standard USB Mini-B for easy connection to a laptop or to the included power supply.

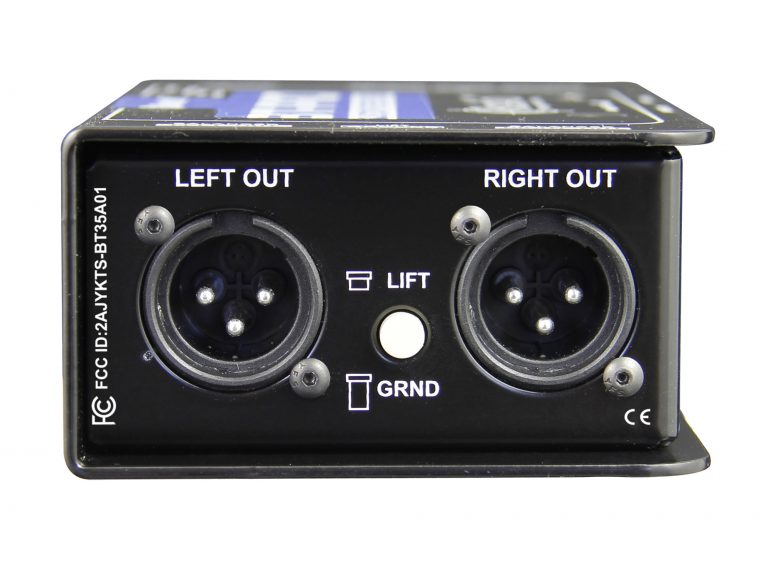

Balanced Out
Male XLR outputs deliver up to +4dB signal for professional audio systems. These employ the AES standard with pin-1 (ground), pin-2 (+), and pin-3 (-).
Ground Lift
Lifts pin-1 ground on both XLR outputs to aid in eliminating ground-loop noise.

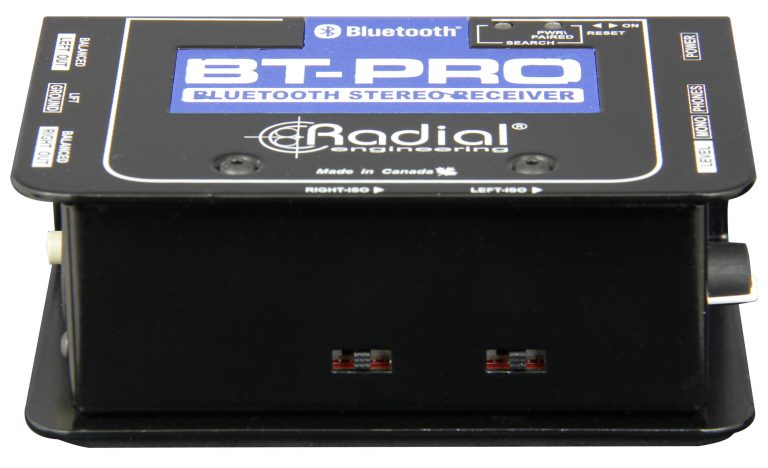

Isolation
Switches used to insert isolation transformers into the audio signal path to help eliminate hum and buzz caused by ground loops.
I-beam Reinforced
Enclosures makes it impossible to torque the PC board & eliminates cold solder joints.
Powder Coat
Durable finish keeps your BT-Pro looking great for years.
Metal Switches
Are rated at over 20,000 cycles for added durability and years of use.

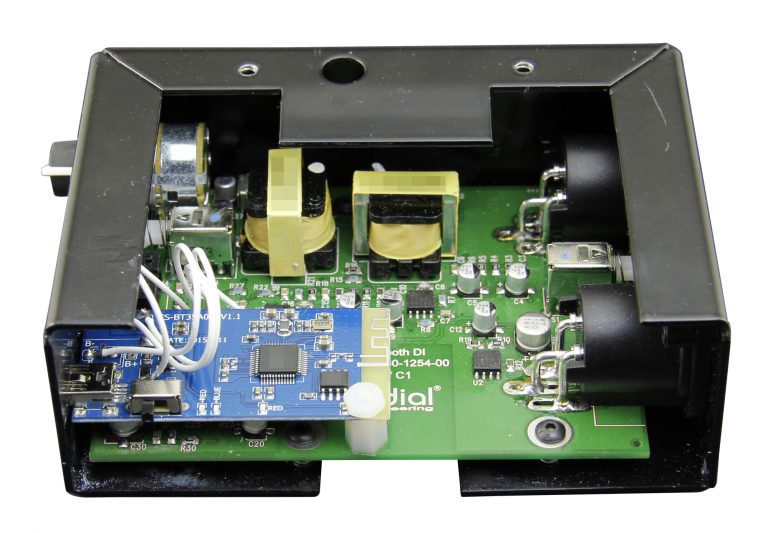

Transformers
For distortion-free signal transfer and 100% isolation from ground loop hum.
Mil-Spec PCB
Full ground plane for noise free performance, double sided for durability.
