RJ45 Pin (T568) | XLR/TRS Pin |
1 | CH 4 Pin 2 |
2 | CH 4 Pin 3 |
3 | CH 3 Pin 2 |
4 | CH 2 Pin 2 |
5 | CH 2 Pin 3 |
6 | CH 3 Pin 3 |
7 | CH 1 Pin 2 |
8 | CH 1 Pin 3 |
Specifications

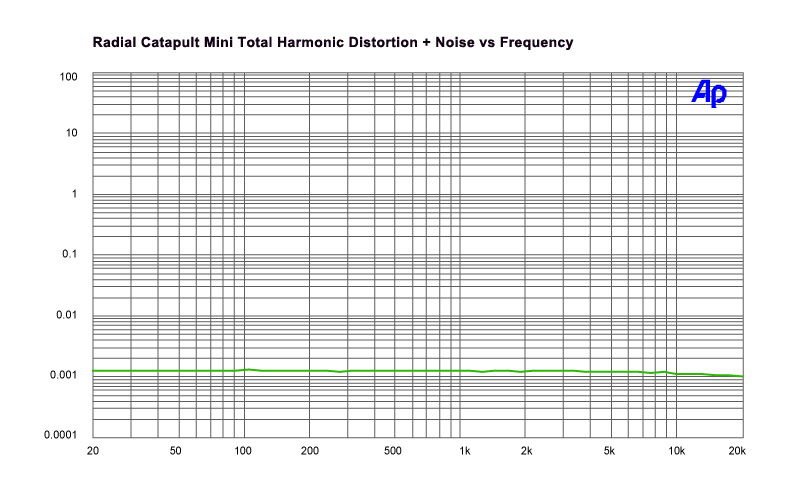

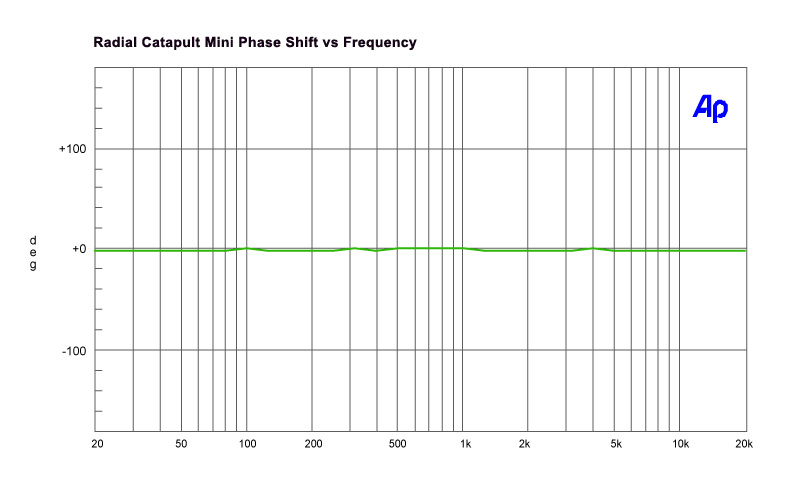

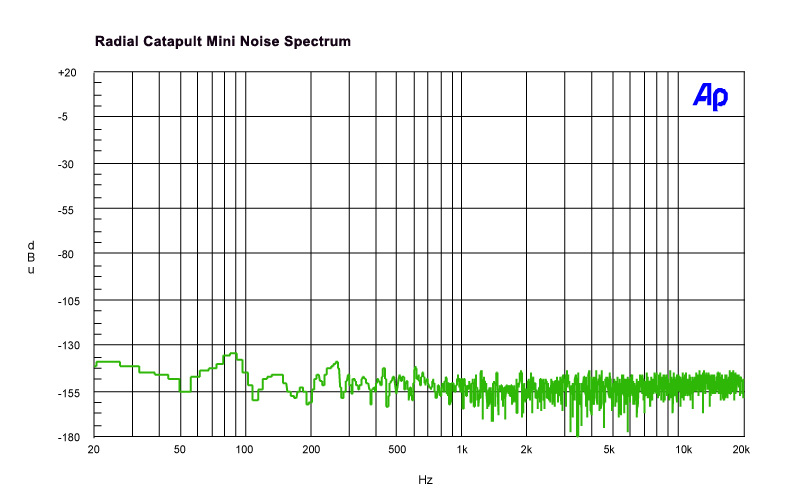

Graphs
Specifications | ||
---|---|---|
Audio circuit type: | Passive splitter | |
Frequency response: | 7Hz ~ 20KHz | |
Dynamic range: | 140dB | |
Total harmonic distortion: | 0.0005% @ 1kHz | |
Common Mode Rejection Ratio: | >103dB | |
Maximum Input: | +35dBu | |
Features | ||
Ground lift | ||
Input Connectors: | XLR, TRS, RJ45 (model dependant) | |
Output Connectors: | XLR, TRS, RJ45 (model dependant) | |
General | ||
Construction: | 16-gauge steel chassis & outer shell | |
Size (L x W x D): | 4.125" x 1.56" x 1.31" (105 x 40 x 33mm) | |
Weight: | 0.85lb (0.4kg) | |
Shipping size (L x W x D): | 6.25" x 4.25" x 3" (159 x 108 x 76mm) | |
Shipping weight: | 1.1lb (0.5kg) | |
Power: | Passive, no power required | |
Conditions: | For use in dry locations only between 5°C and 40°C | |
Warranty: | Radial 3-year, transferable |
Frequency Response
![](https://www.radialeng.com/wp-content/uploads/2018/06/catapult-mini-graph-freq-response-768x346.jpg)
What do these graphs mean? Learn what to look for and why it matters.
Learn MoreCatapult Mini Resources
- Model:
- TX (Female XLRs)
- RX (Male XLRs)
- TRS
- Part No:
- R800 8028 00
- R800 8029 00
- R800 8032 00
