The Catapult TX4L and RX4L are four-channel line level splitters and isolators that allow you to split four audio channels and transmit them over a single standard cat5 shielded twisted pair cable. This allows you to split line level signals between three different destinations, either on stage or using a buildings existing Cat 5 or Cat 6 cabling to route the signal. Each unit features line level isolation transformers which help to eliminate buzz and hum caused by ground loops, saving hours of troubleshooting. The TX4L has four XLR-F inputs and four isolated XLR-M outputs, while the RX4L has four direct XLR-M outputs and four isolated XLR-M outputs. Both units feature RJ45 type Ethercon connections with ground lift switches.
Specifications | ||
---|---|---|
Audio circuit type: | Passive line splitter, transformer based | |
Frequency response: | 7Hz ~ 20KHz | |
Dynamic range: | 140dB | |
Total harmonic distortion: | 0.0007% @ 1kHz | |
Common Mode Rejection Ratio: | >113dB | |
Maximum Input: | +35dBu | |
Features | ||
Ground lift | ||
Input Connectors: | XLR, RJ45 | |
Output Connectors: | XLR, RJ45 | |
General | ||
Construction: | 14 gauge steel chassis & outer shell | |
Size (L x W x D): | L: 8 1/8 x W: 4 1/8 x H: 2 | |
Weight: | 2.6 LBS | |
Shipping size (L x W x D): | L: 11 x W: 5 x H: 2.75 | |
Shipping weight: | 2.9 LBS | |
Power: | Passive, no power required | |
Conditions: | For use in dry locations only between 5°C and 40°C | |
Warranty: | Radial 3-year, transferable |

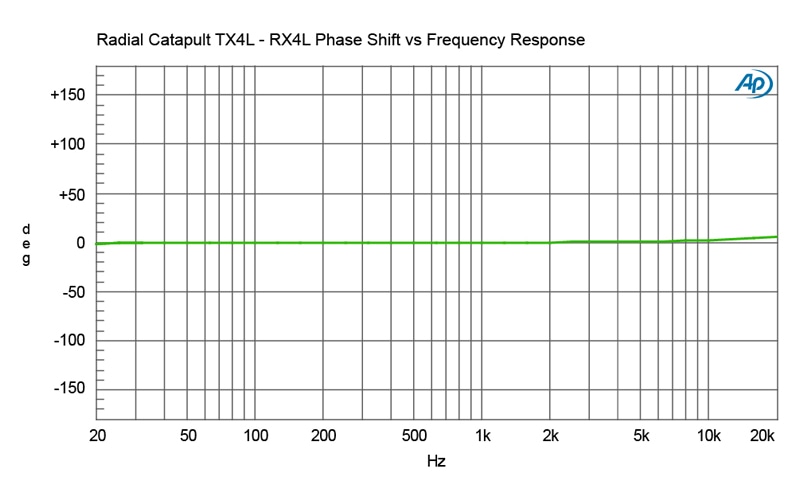

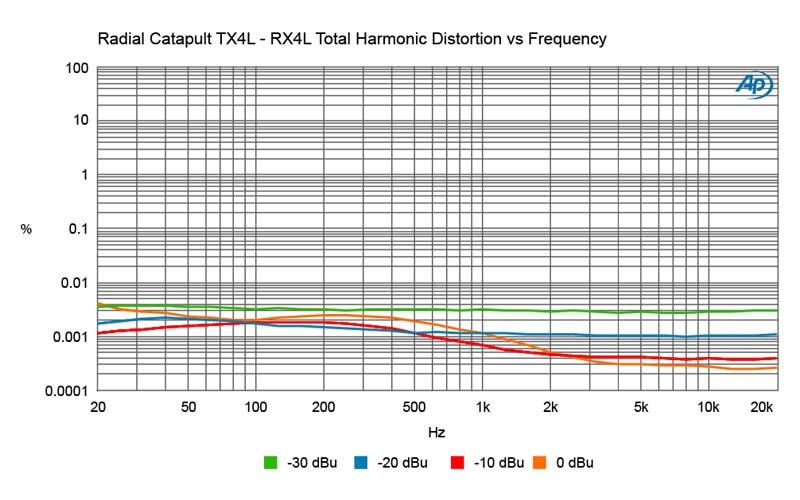

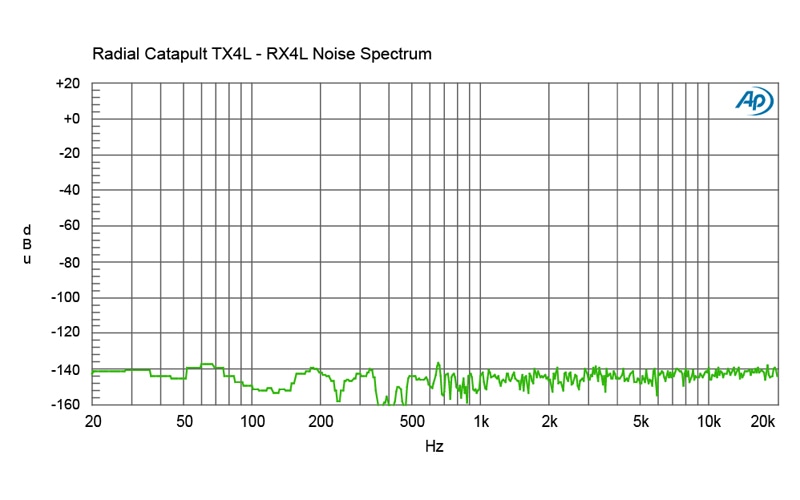

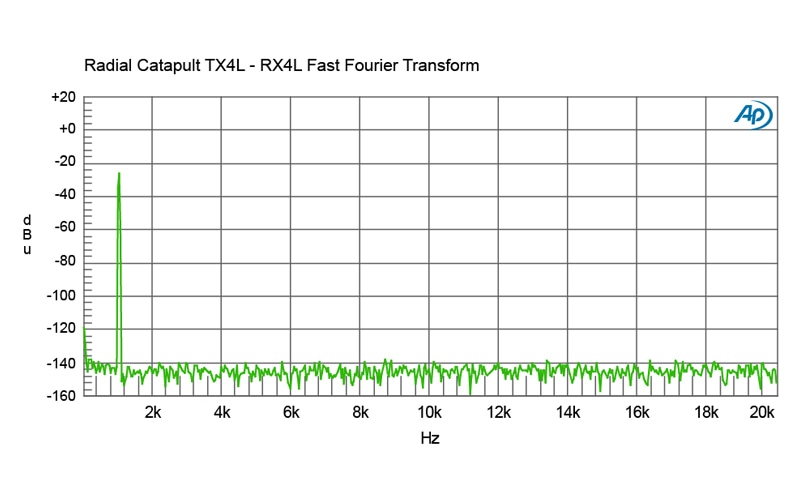

Frequency Response
What do these graphs mean? Learn what to look for and why it matters.
Learn MoreCatapult Resources
- Model:
- TX4
- RX4
- TX4M
- RX4M
- TX4L
- RX4L
- Part No:
- R800 8022 00
- R800 8025 00
- R800 8023 00
- R800 8026 00
- R800 8024 00
- R800 8027 00
