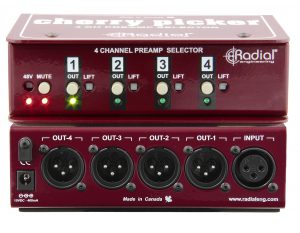

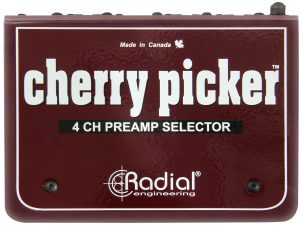

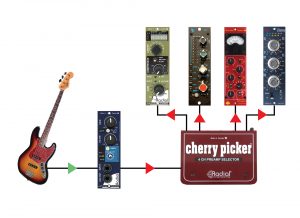

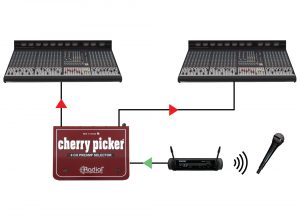

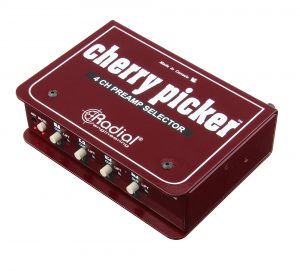

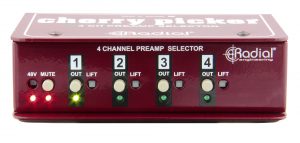

The Cherry Picker is a ‘straight wire’ switcher that lets you to compare up to four preamps using a single microphone. This balanced interface employs high performance gold contact sealed relays and is void of any buffering whatsoever. This results in distortion levels that are below measurement, zero phase shift at all audio frequencies and a linear performance that is equivalent to a solid piece of wire. The external power supply is used to control the relays, power the LEDs and generate 48V phantom power.
Specifications

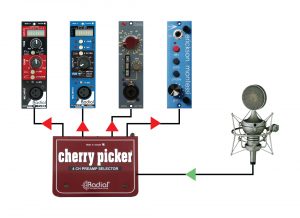

Block Diagram

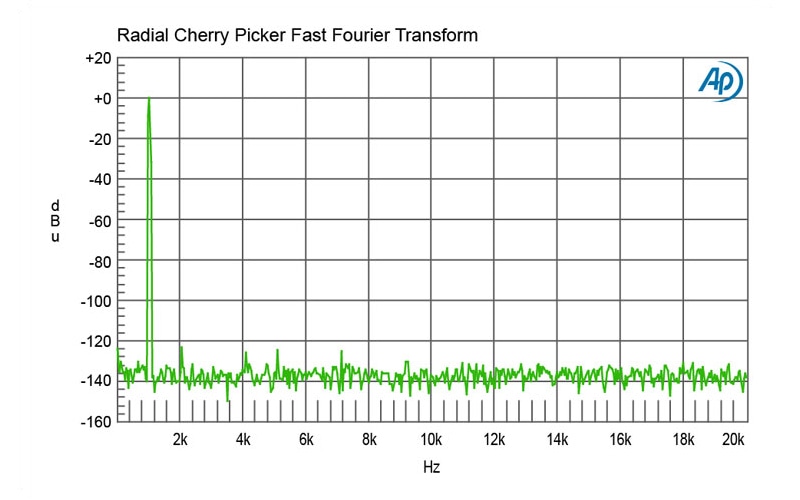

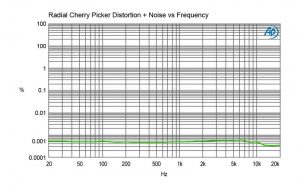

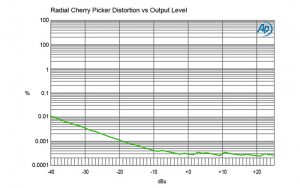

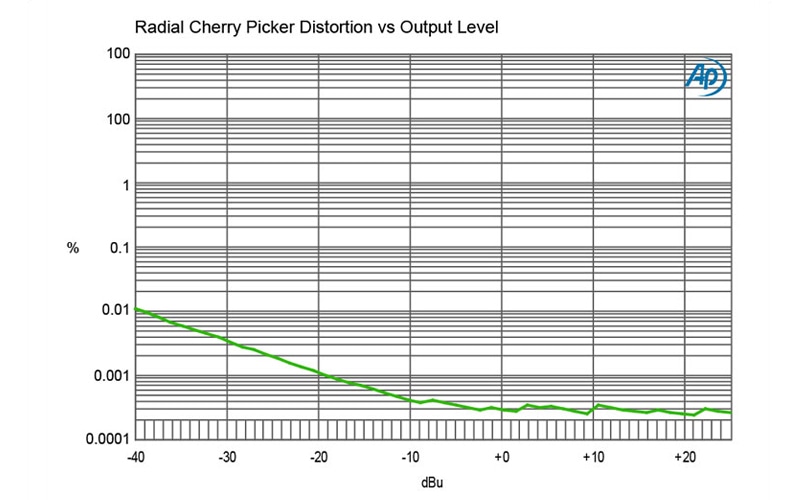

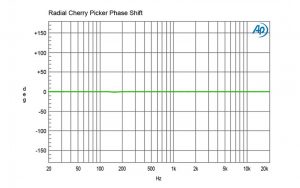

Graphs
Specifications | ||
---|---|---|
Audio circuit type: | Passive signal path with active relay switching | |
Frequency response: | 10Hz to 40kHz | |
Dynamic range: | >115dBu | |
Gain: | 0.0dB – Unity gain device | |

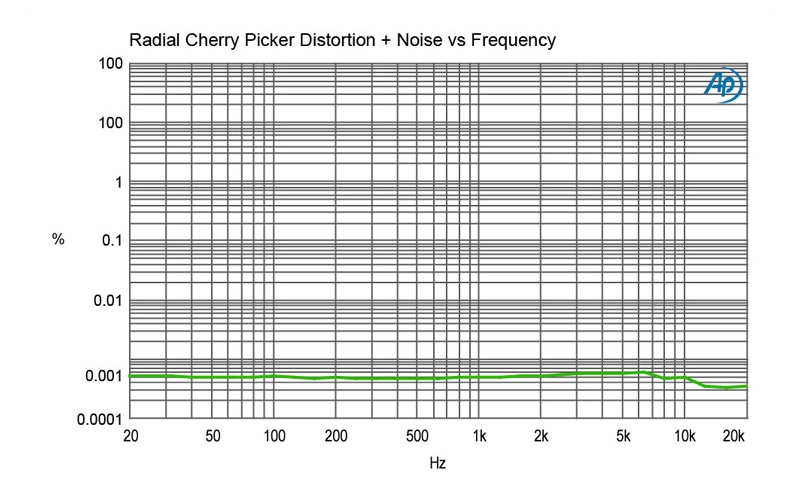

Total harmonic distortion: | 0.0003% | |

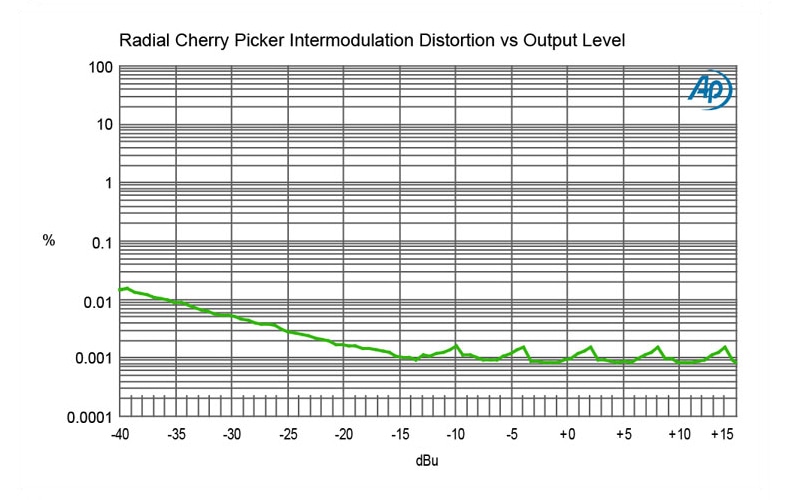

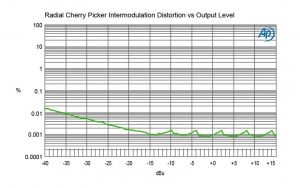

Intermodulation Distortion: | 0.001% | |

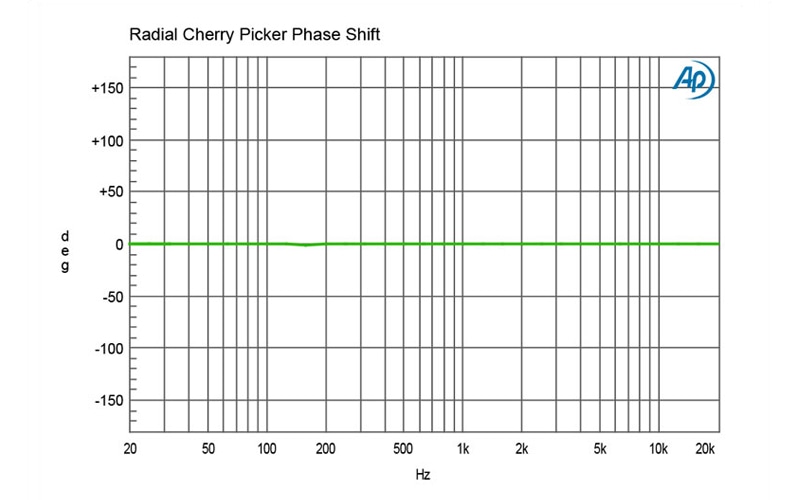

Phase Deviation: | < 0.001 degrees at all frequencies | |
Input Impedance: | 10k Ohms | |
Common Mode Rejection Ratio: | -97dB @55Hz | |

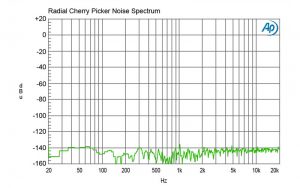

Equivalent Input Noise: | -115dB | |
Maximum Input: | +26dBu | |
Maximum Output: | +26dBu | |
Features | ||
Ground lift, Phantom Power | ||

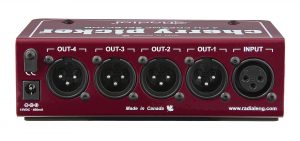

Input Connectors: | Balanced XLR female | |
Output Connectors: | 4 x XLR male | |
General | ||
Construction: | 14 gauge steel chassis & outer shell | |
Size (L x W x D): | 4.5" x 2" x 6" (121 x 64 x 147mm) | |
Weight: | 2.8 lb (1.3kg) | |
Shipping size (L x W x D): | 4.75" x 2.5" x 10.75" (121 x 64 x 273mm) | |
Shipping weight: | 3.05 lb ( 1.4kg) | |
Power: | +15V DC/400mA power supply included | |
Conditions: | For use in dry locations only between 5°C and 40°C | |
Warranty: | Radial 3-year, transferable |

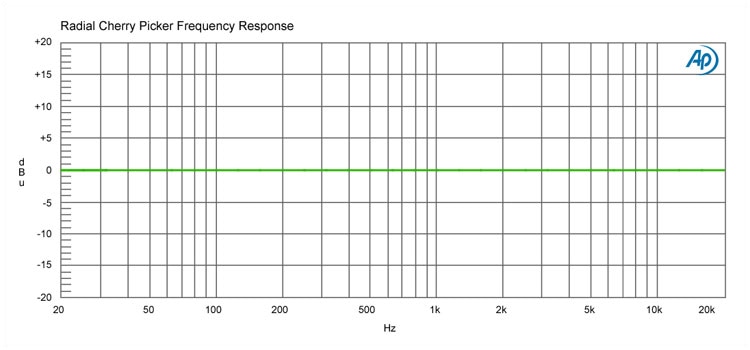

Frequency Response
