![](https://www.radialeng.com/wp-content/uploads/2023/06/dan-tx2-front-768x385.jpg)

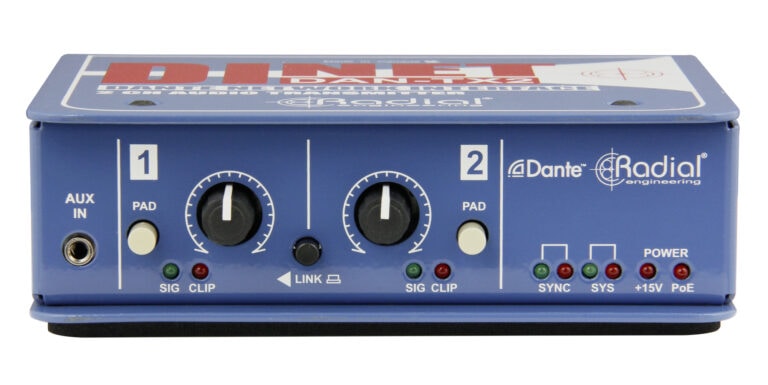

3.5mm Input
Stereo TRS input for use with Laptops, tablets and phones. Wired in parallel with the XLR inputs.
Pad
Engages a -18dB input pad for high output line level sources.
Trim
Adjustable trim control to set input levels, with unity gain at 12 o’clock. Provides -10dB of cut or +10db of gain at the min/max settings.
Stereo Link
When engaged, the Trim control on channel 1 becomes the master for stereo operation.
SIG/CLIP LEDs
Will illuminate when input signal is present or clipping is detected on each input channel.
SYNC LED
Red LED is illuminated when unit is powered. Green LED will illuminate once connected to an Ethernet network. Flashing green LED indicates that the DAN-TX2 is in master clock mode, solid green LED indicates that it is in slave mode.
SYS LED
Red LED illuminates when power is first applied. Switches to green LED once Dante processor becomes active.
+15V LED
Will illuminate when the DAN-TX2 is connected to the included DC power adapter. A cable lock is provided to prevent accidental power loss.
PoE LED
Will illuminate when the DAN-TX2 is receiving power over Ethernet (PoE).
![](https://www.radialeng.com/wp-content/uploads/2023/06/dan-tx2-back-768x446.jpg)

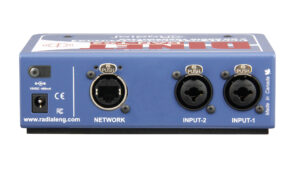

Power
15VDC connection for use with included Radial power adapter when PoE is not available.
EtherCON Compatible Connection
Connects to the Dante network via standard CAT5e or CAT6 Ethernet cable. This port delivers the digital audio signal to the network and powers the DAN-TX2 when Power over Ethernet (PoE) is available.
XLR/TRS Inputs
Balanced inputs for connection to professional audio playback sources.
