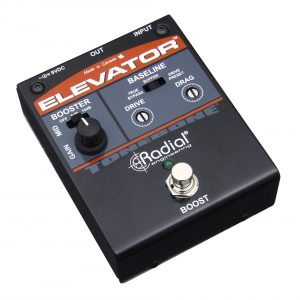

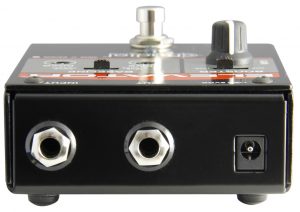

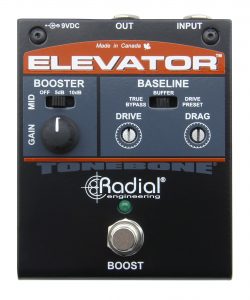

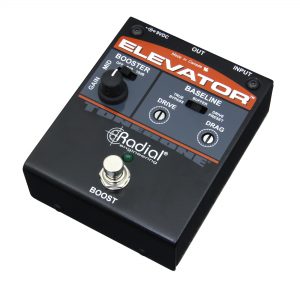

The Elevator is a high performance instrument preamp disguised as a pedal. It features 100% discrete class-A electronics with user definable load correction that together deliver the sound, character and feel of the instrument – yet with more. Reviewing the specifications, one can quickly surmise that the Elevator delivers the goods with exceptional linearity, low noise and plenty of signal handling capacity.
Specifications

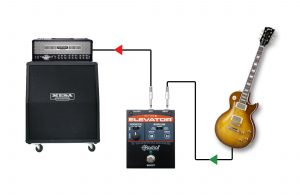

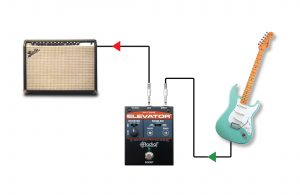

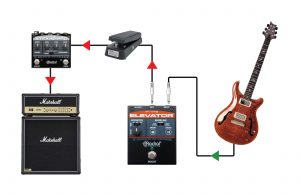

Block Diagram

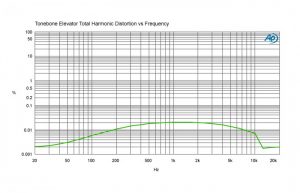

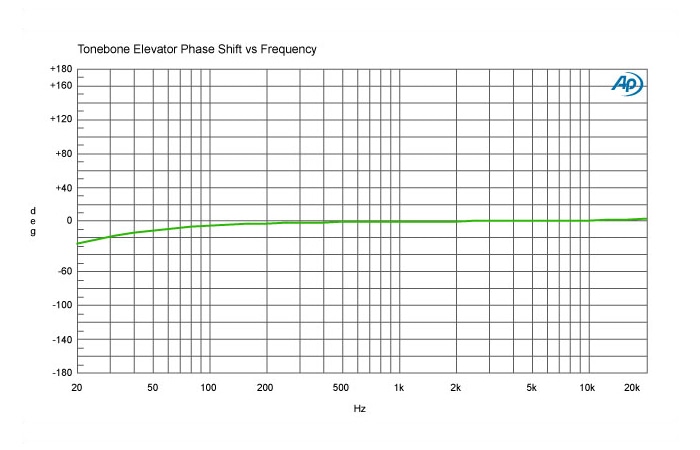

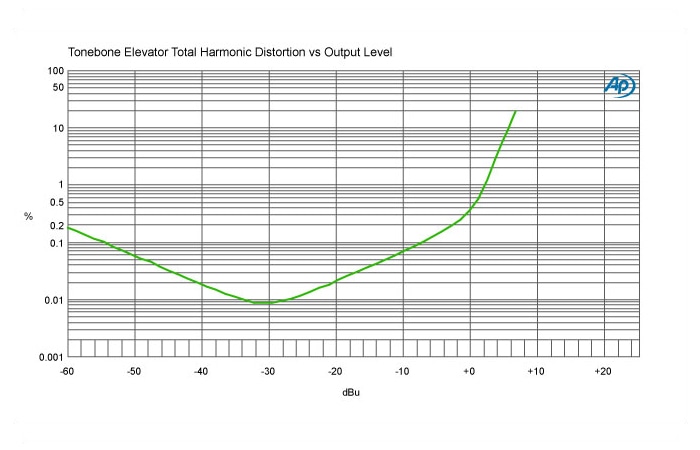

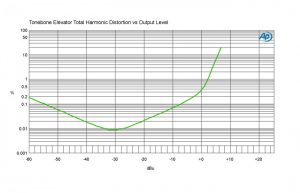

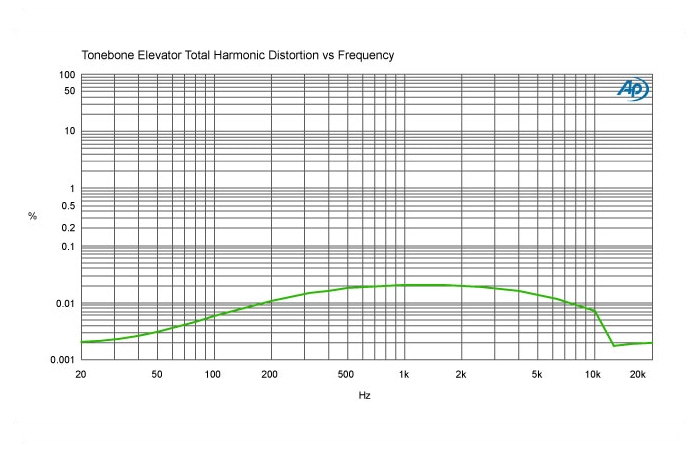

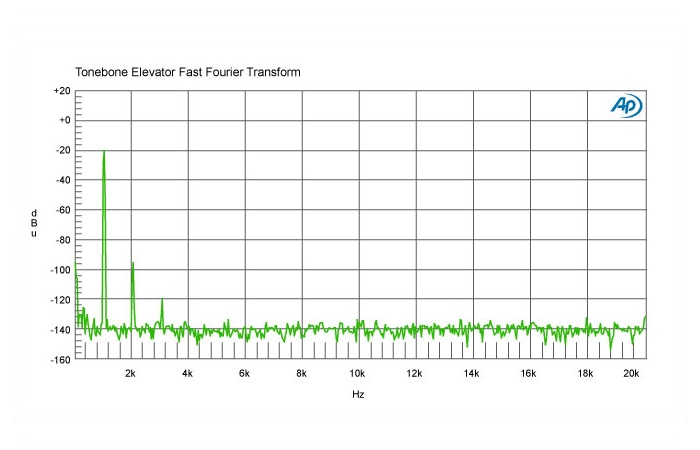

Graphs
| Specifications | ||
|---|---|---|
| Audio circuit type: | 100% Discrete class-A | |
| Frequency response: | 20Hz to 20KHz | |
| Dynamic range: | >100dB | |
| Gain: | Unity to +18dB | |
| Clip Level: | +10dBu | |
| Total harmonic distortion: | 0.02% | |
| Intermodulation Distortion: | 0.02% | |
| Phase Deviation: | <6 degrees at 100Hz | |
| Input Impedance: | Variable 22K to 1M ohms | |
| Output Impedance: | 1k Ohms | |
| Equivalent Input Noise: | -100dBu | |
| Maximum Input: | +4dBu | |
| Features | ||
| Drag Control, Level Control, Boost | ||
| Input Connectors: | 1/4" | |
| Output Connectors: | 1/4" | |
| General | ||
| Construction: | 14-gauge steel chassis & outer shell | |
| Size (L x W x D): | 4.7" x 3.5" x 1.9" (118.8 x 88.9 x 48.9mm) | |
| Weight: | 1.25lbs (567 grams) | |
| Shipping size (L x W x D): | 6.25" x 4.5" x 2.50" (158.8 x 114.3 x 63.5mm) | |
| Shipping weight: | 1.55lbs (703 Grams) | |
| Power: | 9V Adapter/50mA | |
| Conditions: | For use in dry locations only between 5°C and 40°C | |
| Warranty: | Radial 3-year, transferable | |

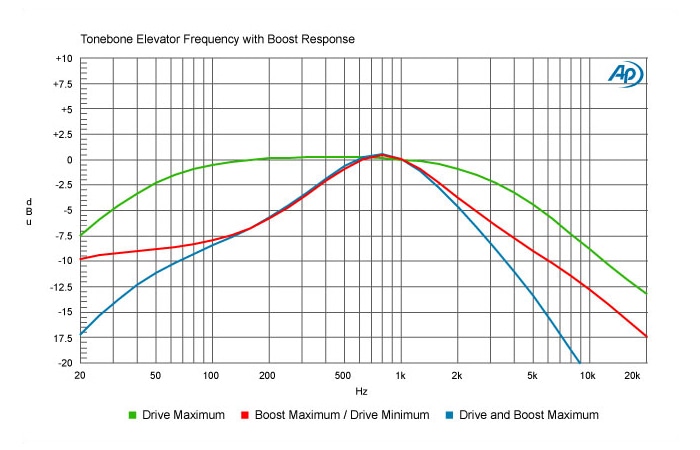

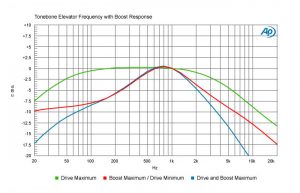

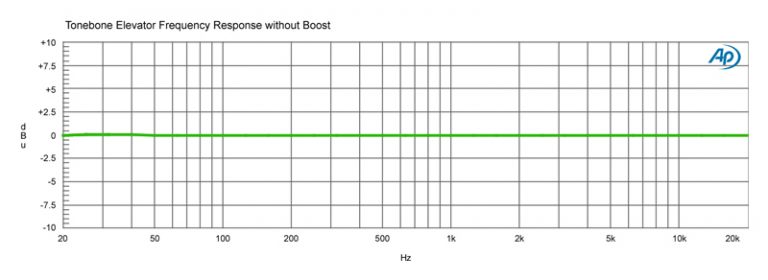

Frequency Response
