The Exo-Pod is a passive modular splitter for professional audio distribution to a large number of mic or line level recorders. Exo-Pods can be used as standalone devices, but multiple units can also be daisy-chained together for even more outputs. Each Exo-Pod features ten XLR outputs with ground lift switches, and four 3.5mm stereo TRS jacks; all of these outputs are transformer isolated. A trim control at the input allows you to adjust the level. The Exo-Pod is built to last, with a 14-gauge steel enclosure and a steel handle that protects the XLR input, loop-thru output, and trim control. With its flat frequency response and noise-eliminating isolation transformers and ground lifts, the Exo-Pod will ensure that your audio is distributed cleanly.
Specifications | ||
---|---|---|
Audio circuit type: | Passive | |
Number of channels: | 14 outputs | |
Frequency response: | <20Hz to >20kHz ±1dB | |
Dynamic range: | >136dB / >100dB | |
Gain: | -3.5dB / -18dBu | |
Clip Level: | >+26dBu | |

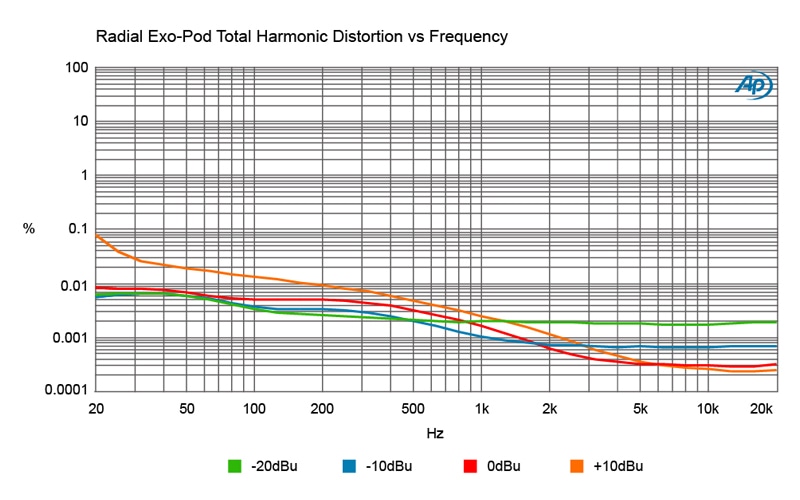

Total harmonic distortion: | 0.001% | |

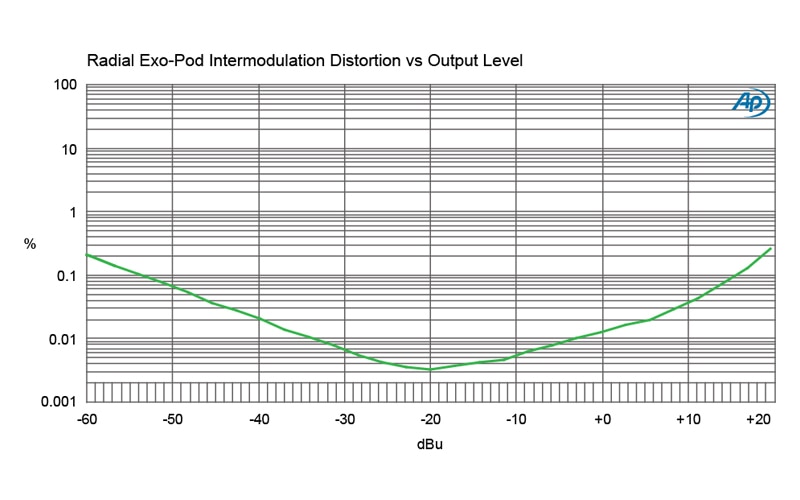

Intermodulation Distortion: | 0.006% | |

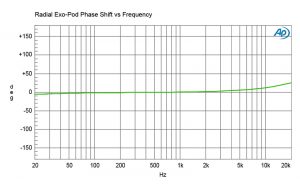

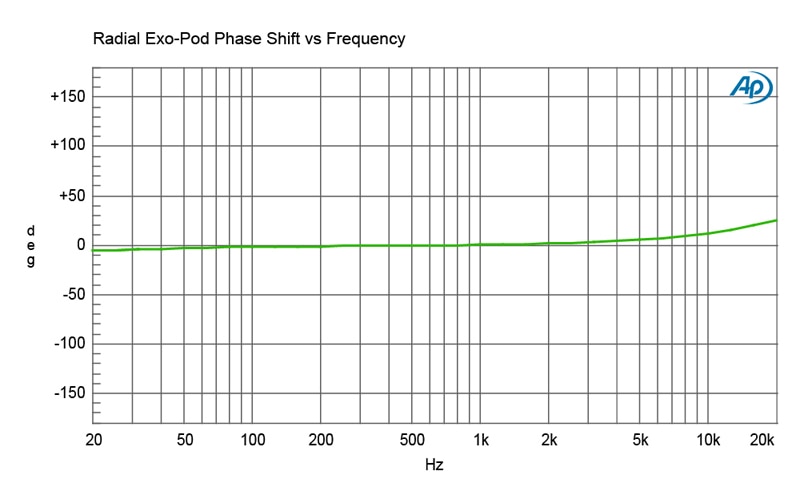

Phase Deviation: | -5/+25° | |
Input Impedance: | 350 Ω | |
Output Impedance: | XLR: 1000 Ω | 3.5mm: 4600 Ω | |
Common Mode Rejection Ratio: | 63dB | |
Equivalent Input Noise: | -108dBu/-84dBu | |

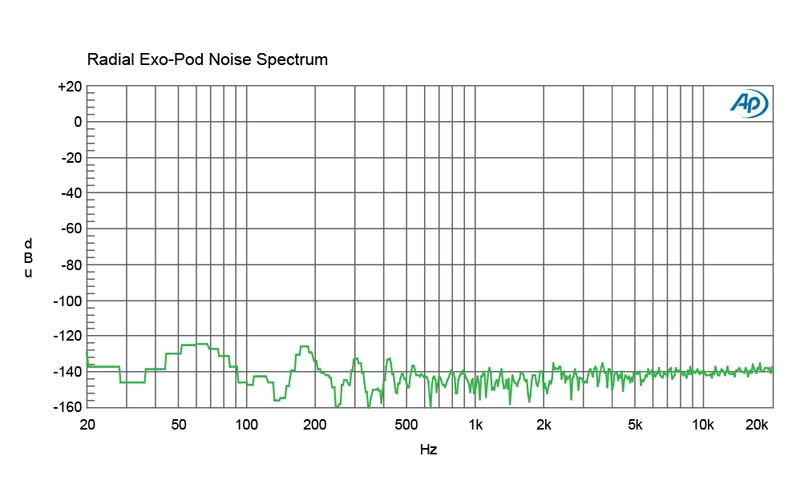

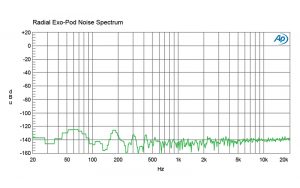

Noise Floor: | XLR: -111dBu | 3.5mm: -86dBu | |
Features | ||
Ground lift, Level Control | ||
Input Connectors: | XLR | |
Output Connectors: | XLR, 3.5mm | |
General | ||
Construction: | 14-gauge steel chassis & outer shell | |
Size (L x W x D): | L:11.75"" x W:5" H:2.25" (298.45mm x 127mm x 57.15mm) | |
Weight: | 3.6lb | |
Shipping size (L x W x D): | L:13.37" x W:5.5" H:3.25" (571.5mm x 260.35mm x 114.3mm) | |
Shipping weight: | 4lb | |
Power: | Passive, no power required | |
Conditions: | For use in dry locations only between 5°C and 40°C | |
Warranty: | Radial 3-year, transferable |

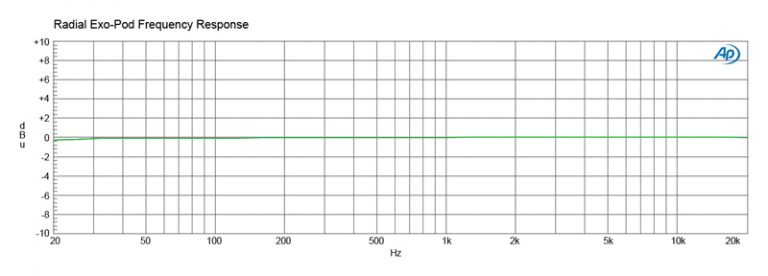

Frequency Response
