The EXTC is a guitar effects interface designed for use inside the Radial Workhorse and other API compatible rack 500 series systems. It features a balanced line level input with variable guitar level send & receive controls for hi-impedance guitar effects. Transformer isolation combined with class-A discreet electronics assures optimal signal transfer. This makes the EXTC the perfect interface for all kinds of effects that otherwise are difficult to use, cause noise or create unbearable hum.
Specifications

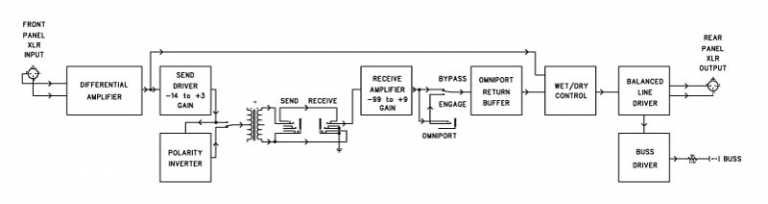

Block Diagram

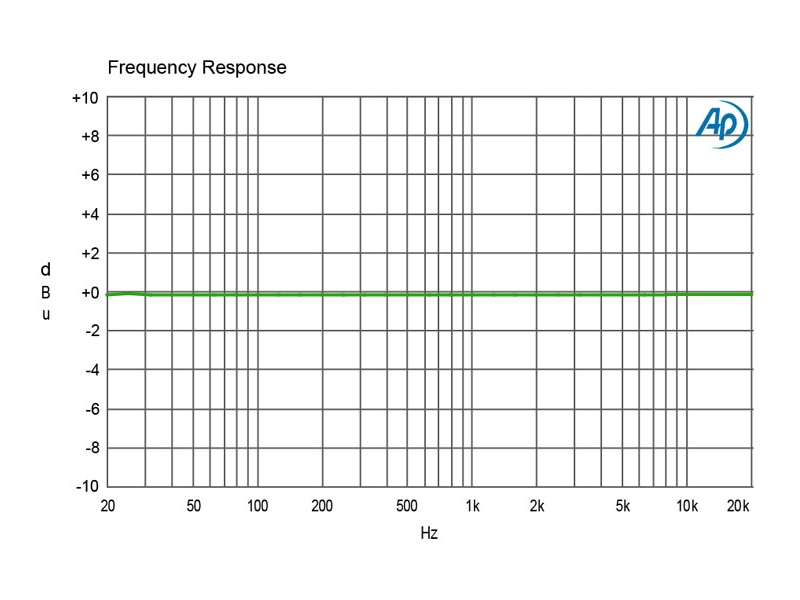

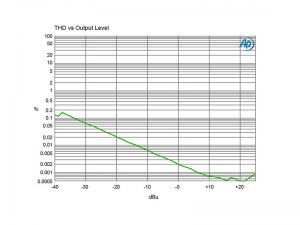

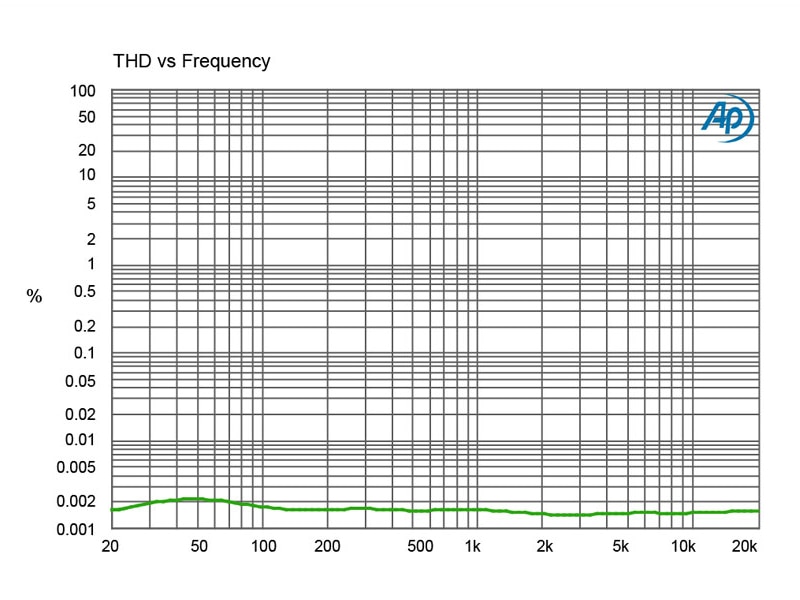

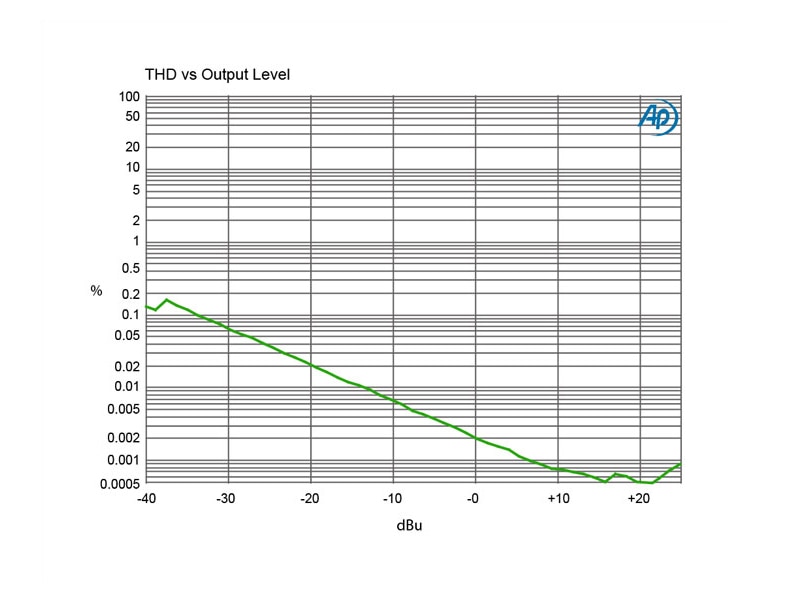

Graphs
| Specifications | ||
|---|---|---|
| Audio circuit type: | Solid state with transformer coupled effects loop | |
| Frequency response: | Dry: 10Hz ~ 21kHz 0dBu, -3dBu | Wet: 10Hz ~ 21kHz 0dBu, -3dBu | |
| Dynamic range: | Dry: 94dB | Wet: >99dB | |
| Gain: | Dry: +5dB | Wet: +27dB | |
| Total harmonic distortion: | Dry: <0.0006% 0dBu output | Wet: <0.0012% 0dB output | |
| Intermodulation Distortion: | Dry: -117dBu | Wet: -110dBu | |
| Signal to Noise: | Dry: 94dB | Wet: >99dB | |
| Maximum Input: | Dry: +26dBu | Wet: +20dBu | |
| Current Draw: | 60mA, +/-16VDC | |
| Features | ||
| 180° polarity reverse, OmniPort | ||
| Input Connectors: | 1/4", XLR | |
| Output Connectors: | 1/4", XLR | |
| General | ||
| Conditions: | For use in dry locations only between 5°C and 40°C | |
| Warranty: | Radial 3-year, transferable | |
