When viewing specifications, one has to differentiate between products that are designed to provide accuracy versus those designed to color and enthral. The Firefly falls into the second category. Therefore the specifications that are normally used to qualify ‘accuracy’ have been omitted leaving those that are still relevant such as noise. One must also consider that tubes are inherently noisy compared with solid state devices, so even here, the specs may seem less than ideal. But tubes bring a sonic character that excites. With the Firefly… one must really listen to appreciate.
Specifications
Block Diagram

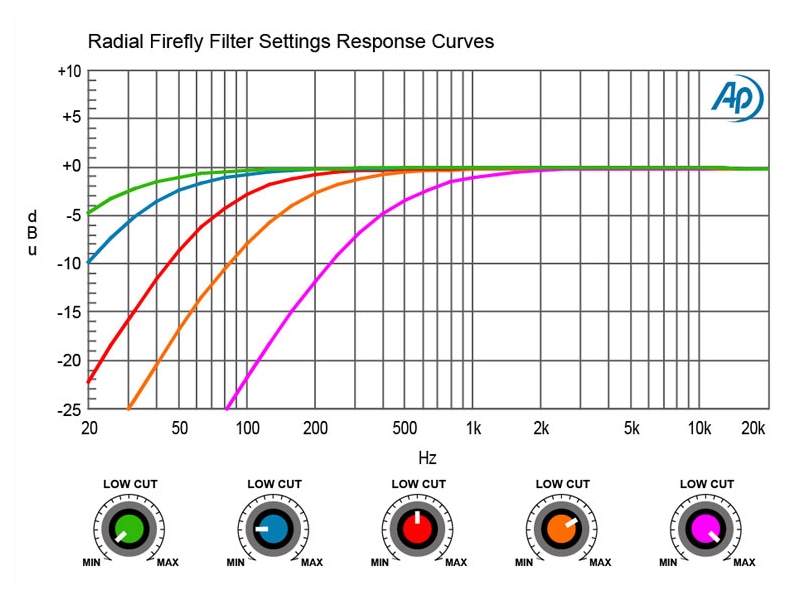

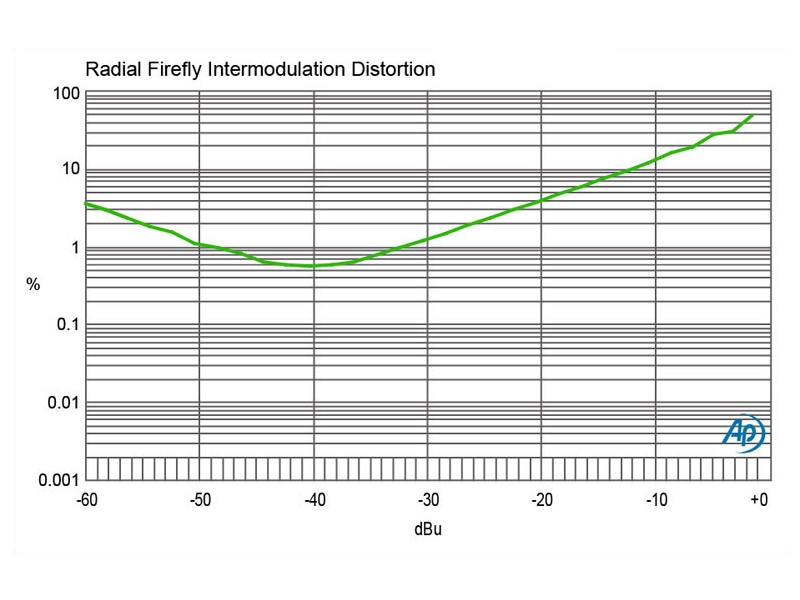

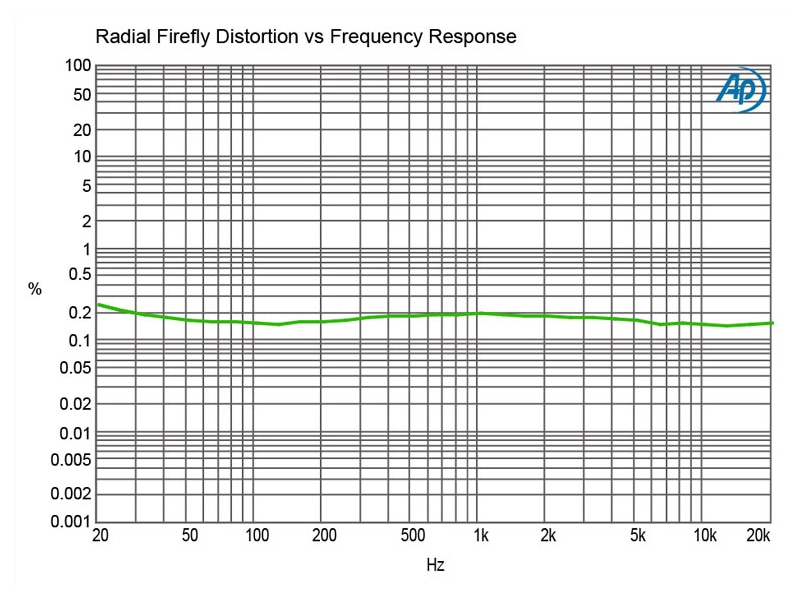

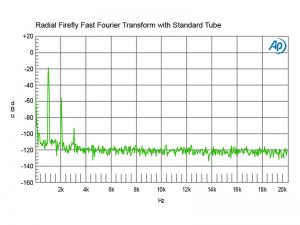

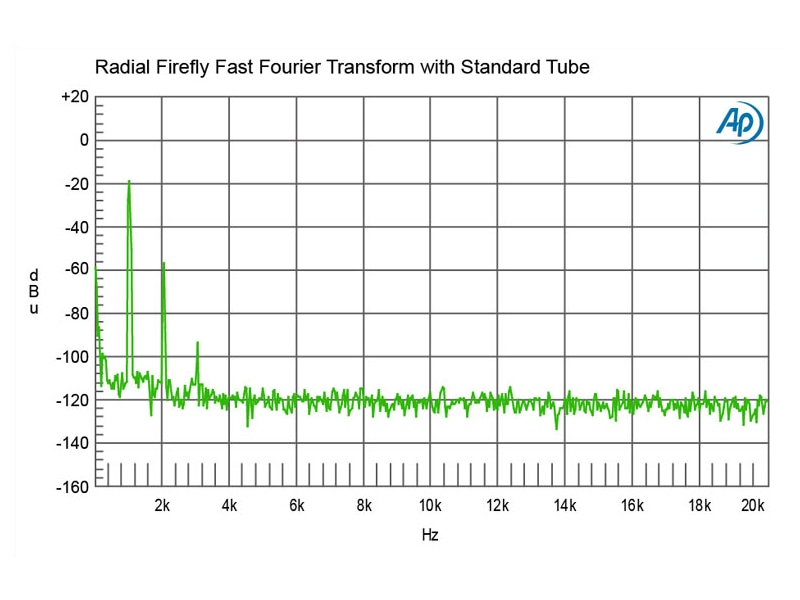

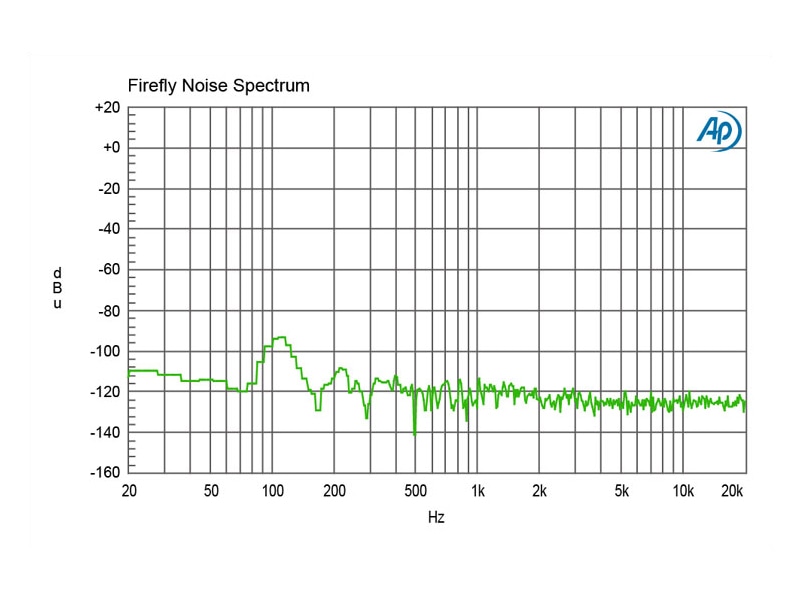

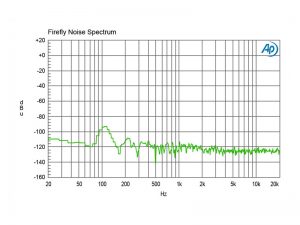

Graphs
Specifications | ||
---|---|---|
Audio circuit type: | 100% discrete class-A FET with tube drive | |
Number of channels: | 1 with A/B input select | |
Frequency response: | 20Hz ~ 20kHz | |
Dynamic range: | >100dB | |
Gain: | 20dB (Maximum) | |
Total harmonic distortion: | 0.15% from 20Hz ~ 20kHz | |
Intermodulation Distortion: | 0.3% | |
Input Impedance: | Drag Off: 3.9 Meg-Ohm | Drag On: Variable 22k ~ 500k | |
Output Impedance: | 150Ω | |
Equivalent Input Noise: | -101dB | |
Noise Floor: | -98dB at unity gain | |
Maximum Input: | Variable from -12dB ~ +20dB | |
Features | ||
180° polarity reverse, Ground lift, HPF, Drag Control, Level Control, Phase Adjustment, Effects Loop, Remote Footswitch, Boost | ||
Input Connectors: | 1/4" Hi-Z, 1/4" TRS Insert | |
Output Connectors: | XLR, 1/4" | |
General | ||
Construction: | 14-gauge steel | |
Size (L x W x D): | 5.75" x 8.25" x 1.75" (2.75" with handle) 146mm x 210mm x 45mm (70mm with handle) | |
Weight: | 3.95lbs. (1.80kg) | |
Power: | 5-pin XLR, +/-16V & 48V, 1600mA | |
Conditions: | For use in dry locations only between 5°C and 40°C | |
Warranty: | Radial 3-year, transferable |
Frequency Response
What do these graphs mean? Learn what to look for and why it matters.
Learn More
