Gold Digger Features

1
2
3
4

Channel On

Radio-style pushbutton switches automatically turn the selected mic on and the other microphones off to eliminate bleed. Activates the LED to let you know which channel is active.

1

Trim Adjust

Individual 'set & forget' trim controls let you quickly match the signal level between mics to ensure a fair and honest comparison.

2

Recessed Panel

Extended lip creates protective zone around the switches and controls when using the Gold Digger on stage or in less than ideal locations.

3

48V Phantom

Phantom power switch turns on 48 volts to power condenser microphones and active direct boxes. Recessed to protect against accidental ‘turn on’ that could damage vintage ribbon mics.

4
1
2
3
4
5

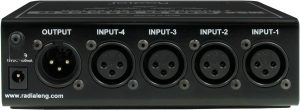

Cable Clamp

Locking cable clamp lets you secure the power cable to the Gold Digger to prevent accidental disconnection.

1

15VDC

Like professional mixers, the power supply is taken out of the box to reduce noise and ensure the most transparent signal flow.

2

14-Gauge Steel

Heavy duty construction eliminates stress on the PCB and provides excellent shielding against magnetic fields and RF which otherwise could introduce noise.

3

XLR Connectors

Used to connect microphones to the Gold Digger and the output to a preamp.

4

Pad

Full bottom no-slip neoprene foam pad provides electrical insulation and mechanical isolation for plenty of stay-put.

5
1
2
3

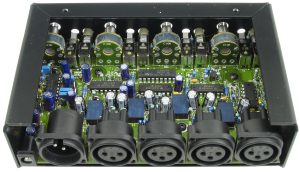

Isolated XLRs

Heavy duty glass-filled XLRs with nickel-silver contacts are stronger than steel and provide 100% isolation between channels to reduce noise and crosstalk.

1

Heavy Duty Switches

Both switches and potentiometers employ steel casings and shafts for long-term durability.

2

Gold Sealed Relays

Military spec relays are used to switch the microphones on and off for straight-wire signal path.

3

Gold Digger Resources

Part no: R800 1440 00
