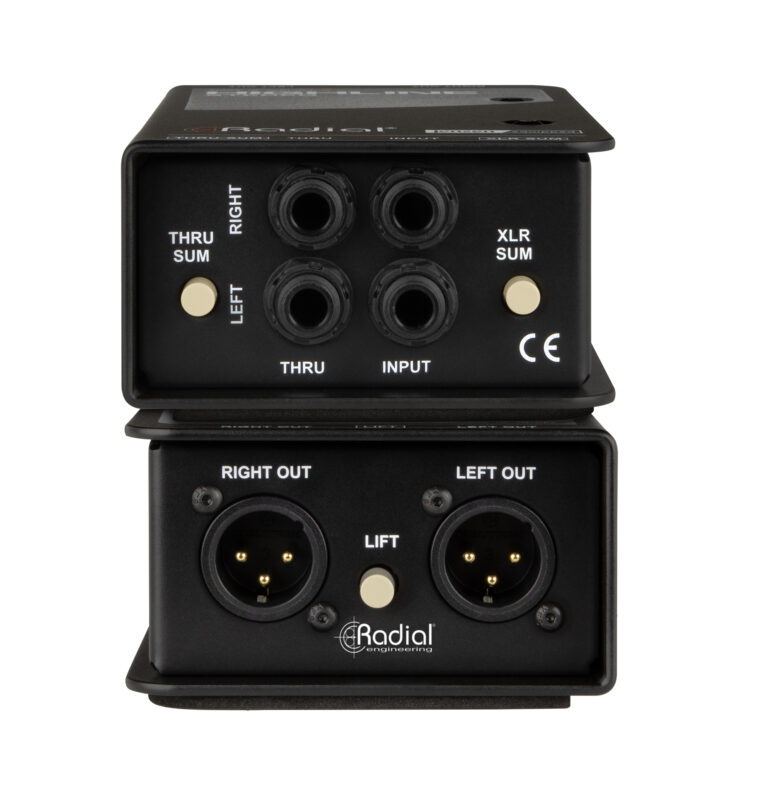

Highline Stereo

Stereo Passive Line Isolator

From Pedal to Performance

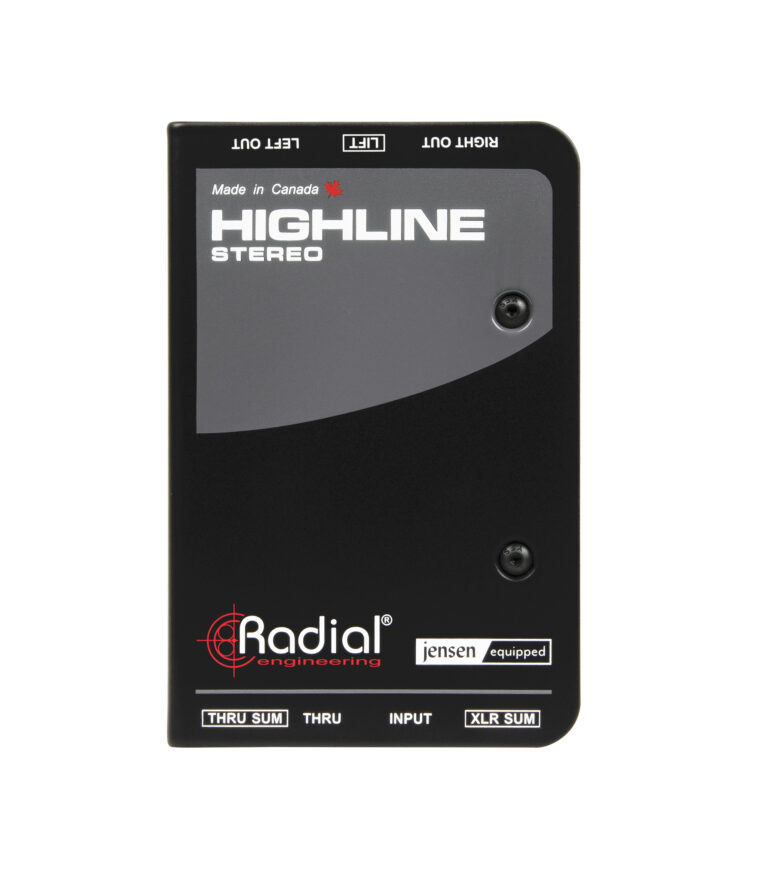

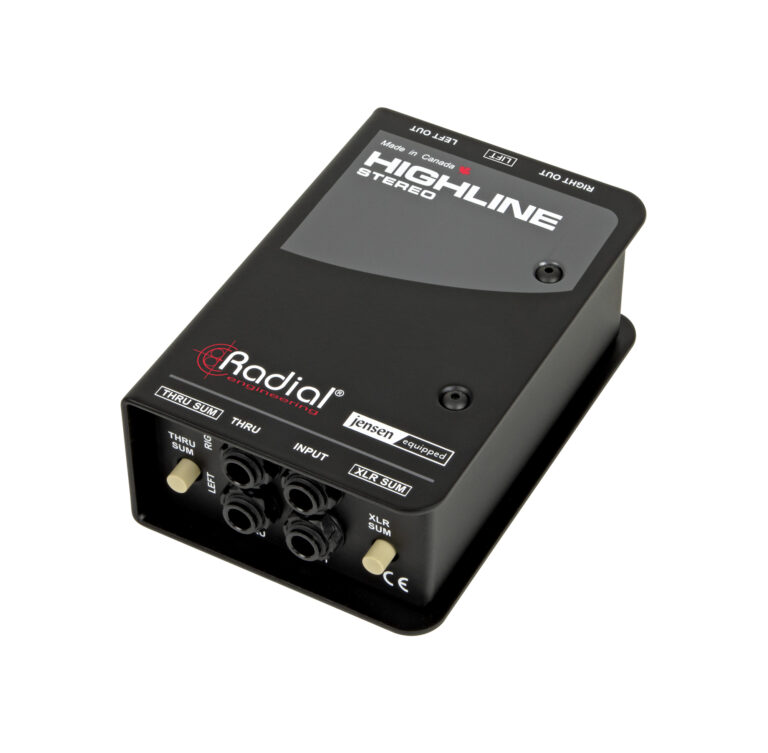

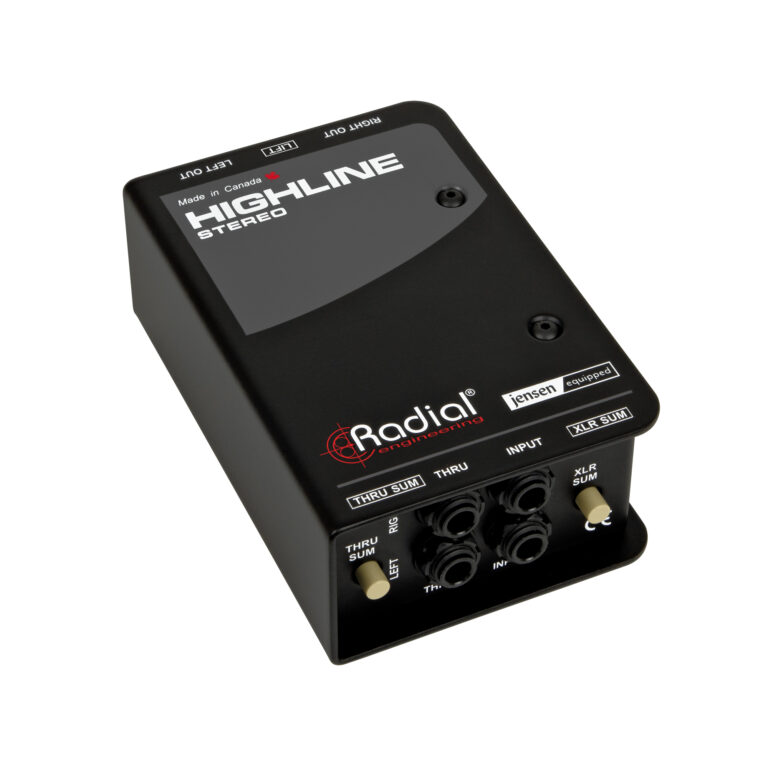

The Highline Stereo is a two channel passive line isolator designed to connect guitar and amp modelers to a mixer for live touring and recording applications, featuring premium Jensen transformers for exceptional audio performance.

  • Two channel isolator with stereo Thru outputs
  • No loss of signal strength or tone when connecting to a mixer
  • Radial’s renowned reliability & build quality
  • Precision-wound Jensen Transformers
  • XLR and Thru Sum options for added versatility

Elevate your tone

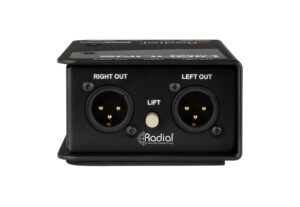

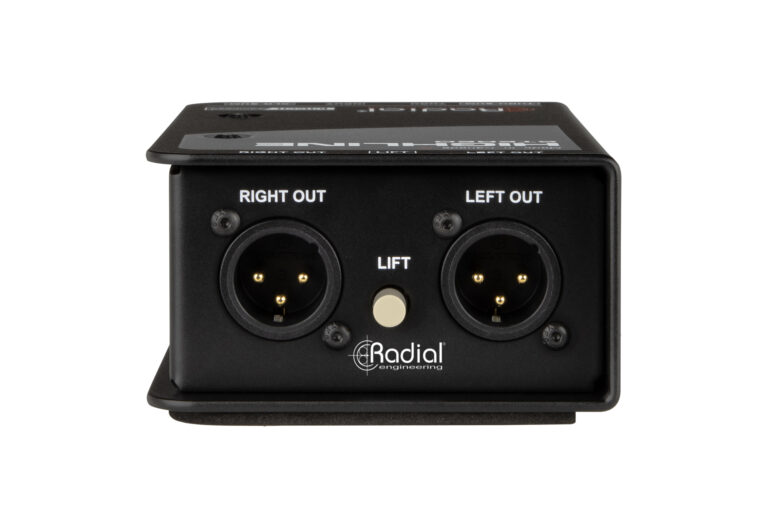

The Highline Stereo is a full-featured line isolator that is specifically designed to address the needs of instrumentalists who use amp modelers, allowing them to seamlessly connect to a PA or a recording system while maintaining their full signal integrity with no added noise or distortion. The Highline features premium Jensen 1:1 transformers, which retain the full volume level from the pedalboard to the PA, while also providing galvanic isolation that eliminates ground loop noise for a clean and noise-free signal. The balanced outputs of the Highline Stereo allow for long cable runs to the PA, and the device also blocks phantom power so it never reaches the pedalboard. The Highline Stereo can be easily reconfigured for multiple setups with the use of two summing switches: these allow you to connect to the PA or your stage monitors in either stereo or mono.

Designed for amp modelers

Guitarists and bassists who use utilize amp modelers on their pedalboard have a unique set of problems: While amp sims can produce line-level outputs, they often still use 1/4" unbalanced connectors that won't support long cable runs without degrading the tone of the instrument, and they are particularly susceptible to noise from ground loops when connected directly to the PA. The Highline Stereo addresses these issues by inserting 1:1 Jensen transformers into the signal path, which provide isolation to reduce noise, protect against phantom power, and ensure that the audio signals remain at line level for direct connection to the PA system.

Highline Stereo Applications

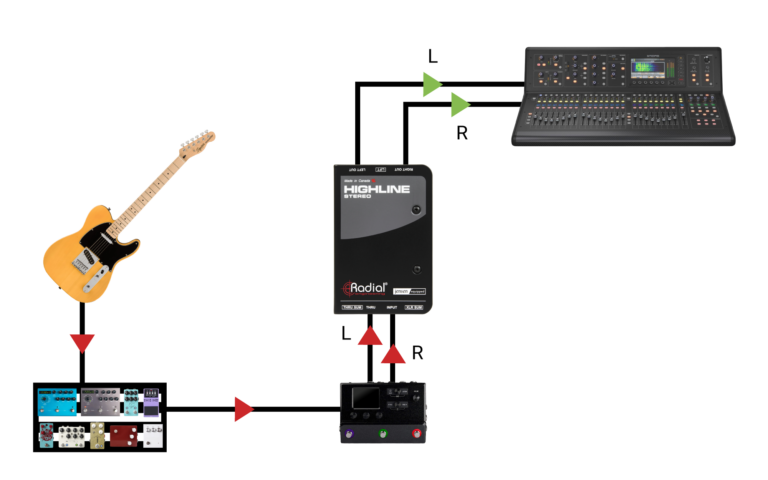

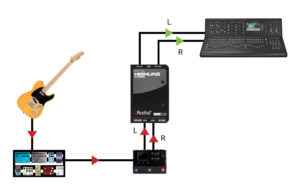

Connect your amp sim to the PA

The Highline Stereo allows you to send the signal from your guitar amp sim right to the PA while retaining the signal level and sound quality. The Jensen transformers inside provide isolation to reduce noise while protecting your gear from accidental phantom power activation.

Sum a stereo amp sim to mono

The Highline Stereo can also be configured to accept a stereo signal and sum both channels to the XLR output, so you don’t have to change any cabling on your pedalboard when channel space is limited at the PA. When the XLR outputs are summed together, the Thru outputs can still operate in stereo.

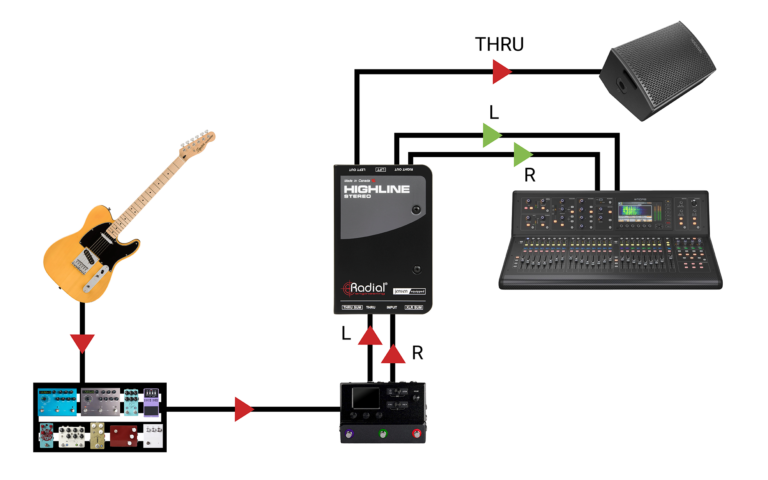

Use the Thru to monitor locally

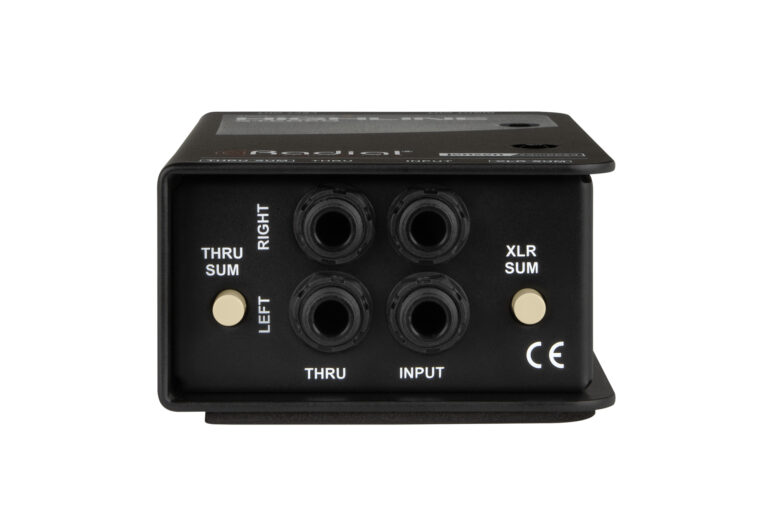

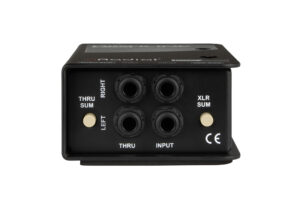

The Thru outputs can be used to monitor your signal locally on one or two stage amplifiers. If using a single stage amp, press the Thru Sum switch to automatically feed both channels to the amp, while maintaining a stereo signal at the XLR outputs.

Highline Stereo Resources

Part no: R800 1539 00
