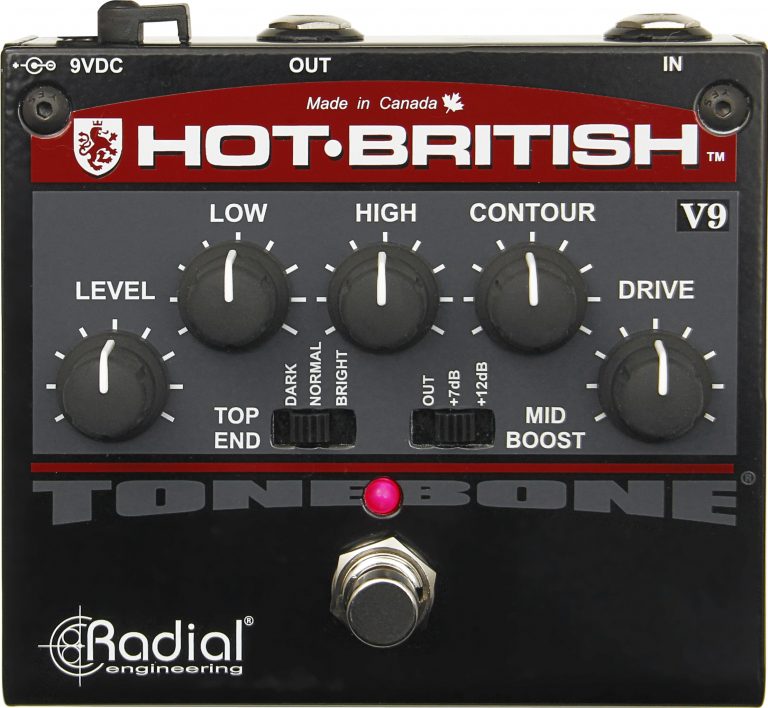

Level
Sets the output volume of the pedal.
1
Low
Post-distortion EQ control for high frequencies.
2
High
Post-distortion EQ control for high frequencies.
3
Contour
Alters the character of the distortion, turn clockwise for more high frequencies and counter-clockwise for a warmer tone.
4
Drive
Used to adjust the overall amount of input gain and distortion.
5
Top-End
3-position switch controls the high frequency response.
6
Mid-Boost
3-position switch controls the midrange response.
7
Bypass Footswitch
Latching switch bypasses the effects.
8
1
2
3
Input
Standard ¼” instrument input for your guitar.
1
Output
¼” output for connection to your amp.
2
PSU
Connection for 9VDC power supply (center-pin negative).
3
