Hot-British V9 Specifications

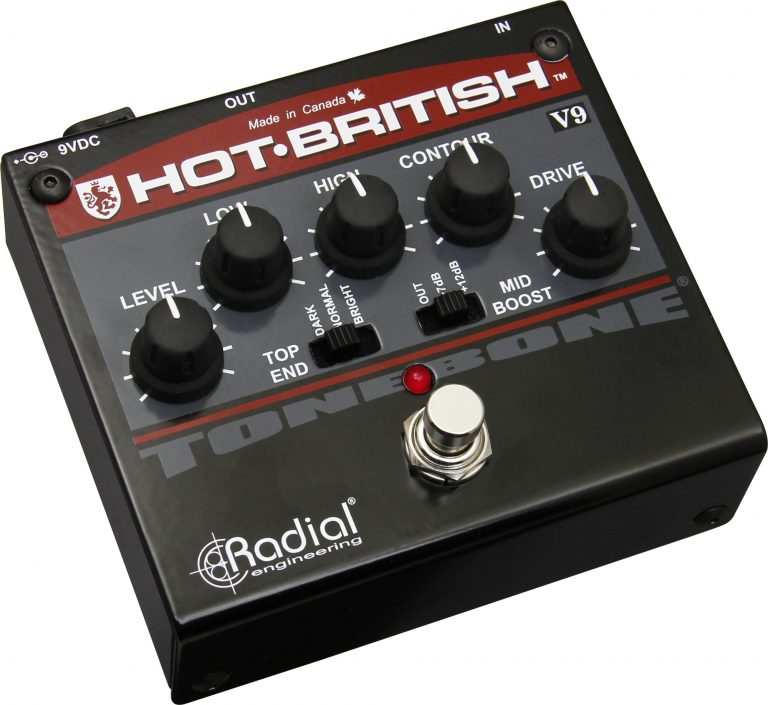

The Hot-British V9 provides the warm saturated distortion of a tube amp in a compact and feature-rich pedal. The solid-state design includes Radial’s Class-A buffering circuit, which provides the same feel as true-bypass, but allows you to run long cables and pedal chains with ease. Once engaged, three tone-shaping stages provide a high degree of control over the resulting sound, from subtle tube saturation textures to high-gain over-the-top distortion. A Drive control sets the overall distortion amount and input level, while a Contour knob changes the character of the distortion itself. A two band EQ section after the distortion circuit allows you to tailor the output to match your guitar and amp. Three-position Mid Boost and Top End switches round out the post-distortion EQ controls, while an overall level setting allows you to choose how hard to drive your amp. The Hot-British V9 is housed in an ultra-durable 14-gauge steel chassis, and can be powered by a standard 9V power supply or multi-pedal power brick.

Specifications
Audio circuit type: Class-A Discrete
Frequency response: Shaped for guitar use
Gain: +5dBu
Input Impedance: 200kΩ
Output Impedance: 1kΩ
Noise Floor: -87dBu
Maximum Input: +15dBu
Features
EQ Control
Input Connectors: 1/4"
Output Connectors: 1/4"
General
Construction: 14-gauge steel
Size (L x W x D): 4.25" x 4.06" x 2" (108mm x 103mm x 50mm)
Weight: 1.45lb (0.66kg)
Shipping size (L x W x D): 6.4" x 4.13" x 3" (163mm x 105mm x 76mm)
Shipping weight: 1.75lb (0.8kg)
Power: 40mA, 9VDC (center pin negative)
Conditions: For use in dry locations only between 5°C and 40°C
Warranty: Radial 3-year, transferable

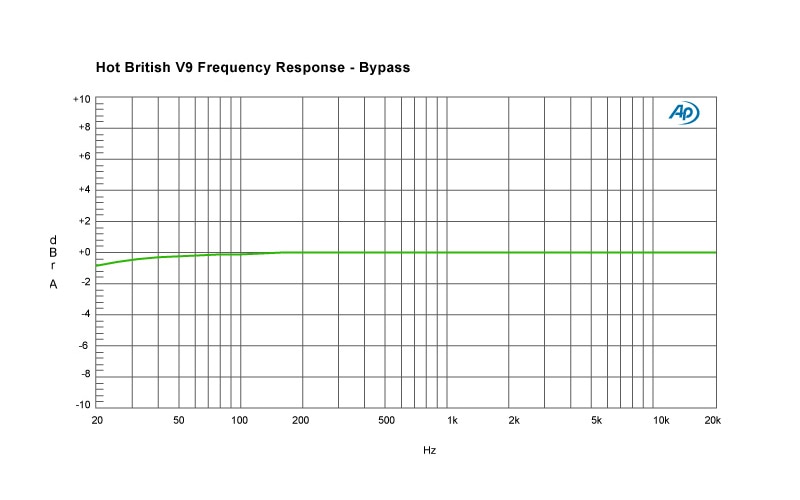

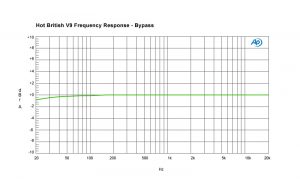

What do these graphs mean? Learn what to look for and why it matters.

Learn More

Hot-British V9 Resources

Part no: R800 7022 00
