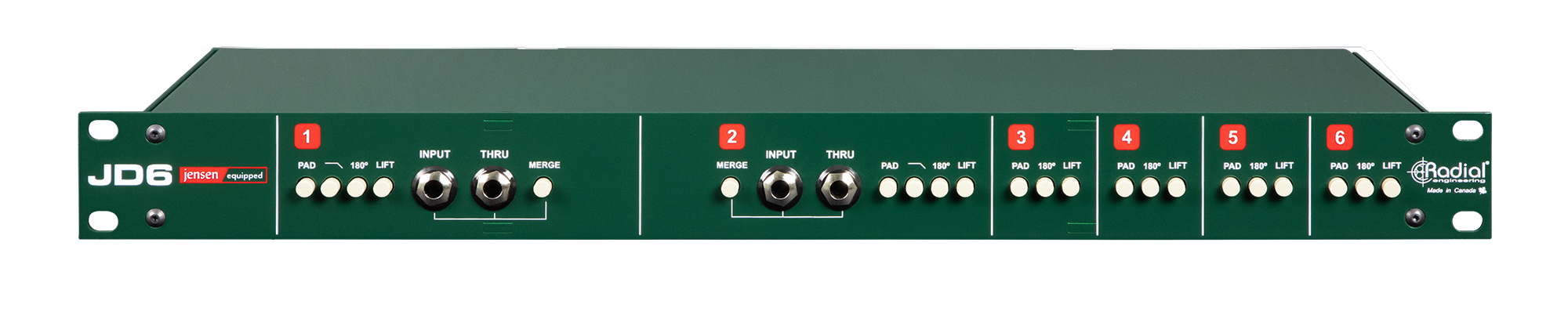

![](https://www.radialeng.com/wp-content/uploads/2023/11/JD6-Front.jpg)
1
2
3
4
5
6
Enhanced Features
On channels 1 and 2 for flexibility in the studio and live on-stage.
1
Low-Pass Filter
High-frequency roll-off at 8kHz removes noisy hiss from old equipment and computers.
2
Merge
Engages a passive mixer that sums the input and thru jacks together to save mixer channels.
3
-15dB Pad
Reduces input level for ultra hot signals such as CD players.
4
Polarity Reverse
Inverts signal polarity at the XLR output to adapt to old gear and fix phase problems.
5
Ground Lift
Disconnects the ground at the XLR pin-1 to help eliminate ground loops.
6

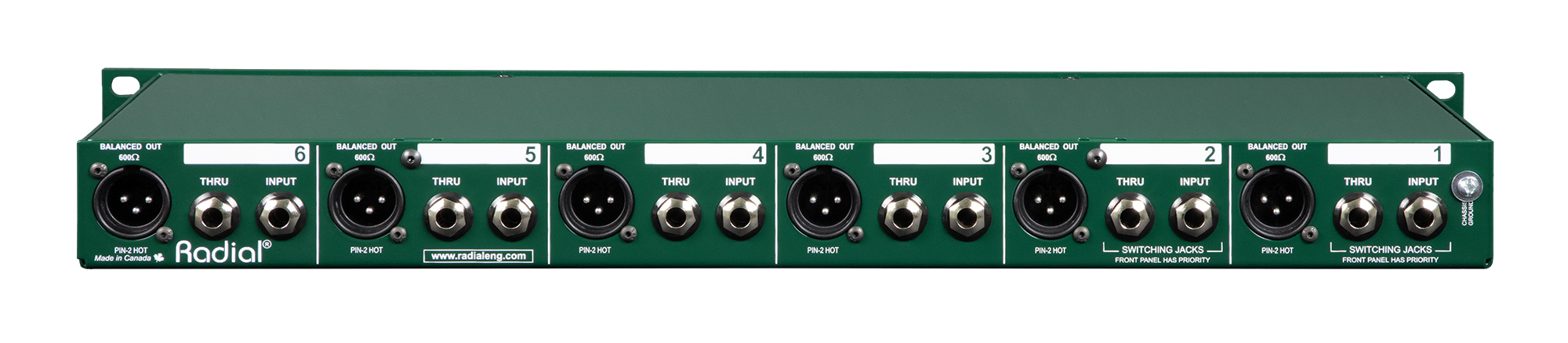

![](https://www.radialeng.com/wp-content/uploads/2023/11/JD6-Back.jpg)
1
2
3
4
5
Isolated XLR
Are made from rugged glass-filled nylon for years of use.
1
Floating Channel Design
Provides 100% isolation between channels.
2
ID Labels
For wax pencils. Makes setups easy. A great help when troubleshooting!
3
Switching Jacks
On channel 1 and 2 switch from back to front when front jacks are used.
4
External Ground
Screw allows the JD6 to be grounded to the rack.
5
