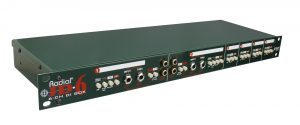

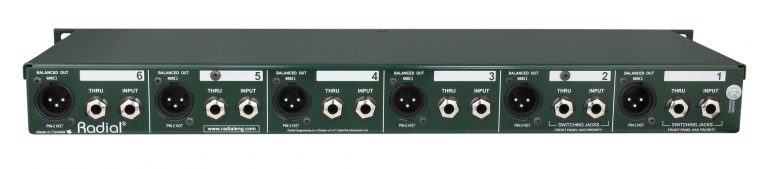

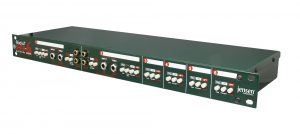

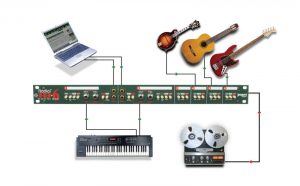

The Radial JD6 is a multi-channel passive direct box that has been specifically designed to address the needs of concert touring, while being equally at home in the studio. The JD6 houses six completely independent transformer isolated channels for minimal cross-talk and maximum protection against noise, 60 cycle hum and buzz or hum caused by ground loops. The JD6 employs the finest Jensen® audio transformers for absolute performance while delivering the warmth and character that has made Radial the world’s most revered direct box producer. The JD6 employs the same audio circuit as the renowned Radial JDI for explosive signal handling, virtually zero phase distortion and a truly linear response.
Specifications | ||
---|---|---|
Audio circuit type: | Passive, transformer based | |
Transformer: | Jensen JT-DBE, 12:1 ratio | |
Number of channels: | 6 | |

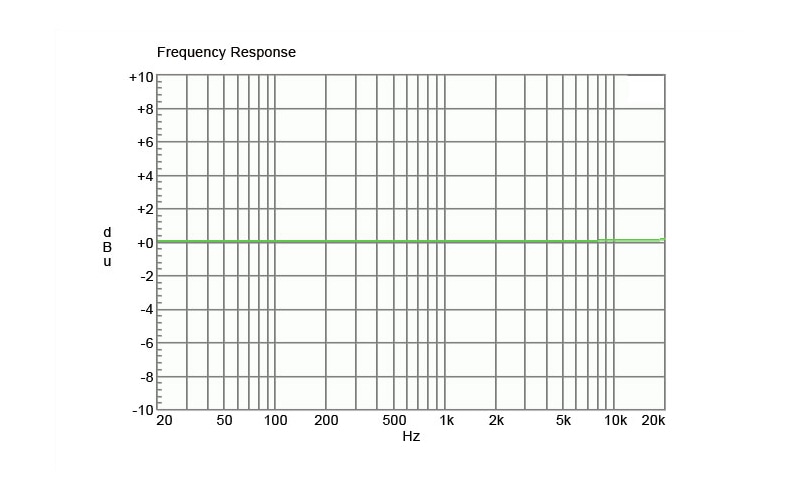

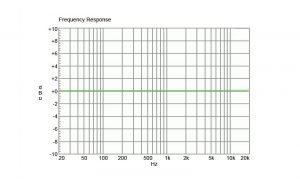

Frequency response: | 20Hz ~ 20KHz (± 0.2dB) | |
Dynamic range: | 135dB | |

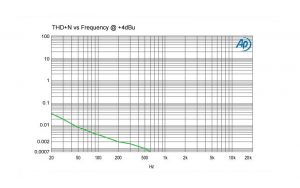

Total harmonic distortion: | 0.05% from 20Hz ~ 20kHz @-10dB | |

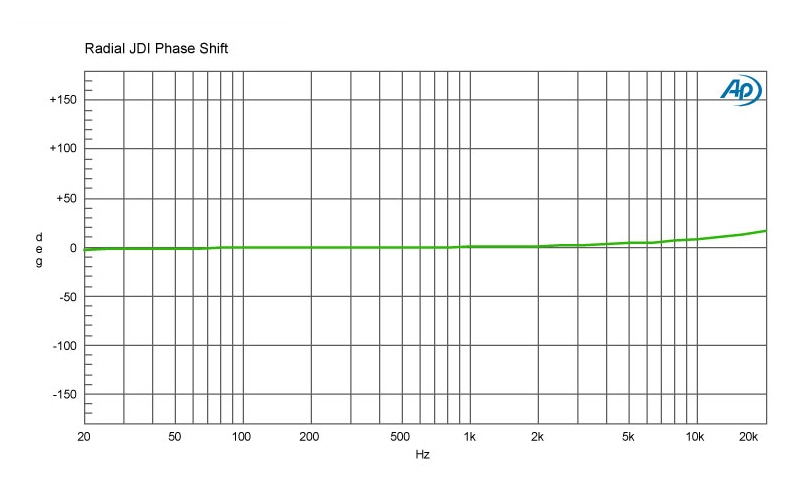

Phase Deviation: | 0.3° @ 100Hz; 3° @ 20Hz | |
Input Impedance: | 140k Ohms, unbalanced | |
Output Impedance: | 150 Ohms, balanced | |
Maximum Input: | +21dB @ 20Hz | |
Features | ||
Input pad, Mono Sum, 180° polarity reverse, Ground lift, LPF | ||
Input Connectors: | 1/4" | |
Output Connectors: | 1/4", XLR | |
General | ||
Construction: | 14-gauge steel chassis & outer shell | |
Size (L x W x D): | 19" x 6.25" x 1.75" (48.3cm x 15.875cm x 4.45cm) | |
Weight: | 3.6 kg (8 lbs) | |
Shipping size (L x W x D): | 22" x 10.375" x 4.5" (55.9cm x 26.4cm x 11.4cm) | |
Shipping weight: | 3.7 kg (8.15 lbs) | |
Power: | Passive, no power required | |
Conditions: | For use in dry locations only between 5°C and 40°C | |
Warranty: | Radial 3-year, transferable |

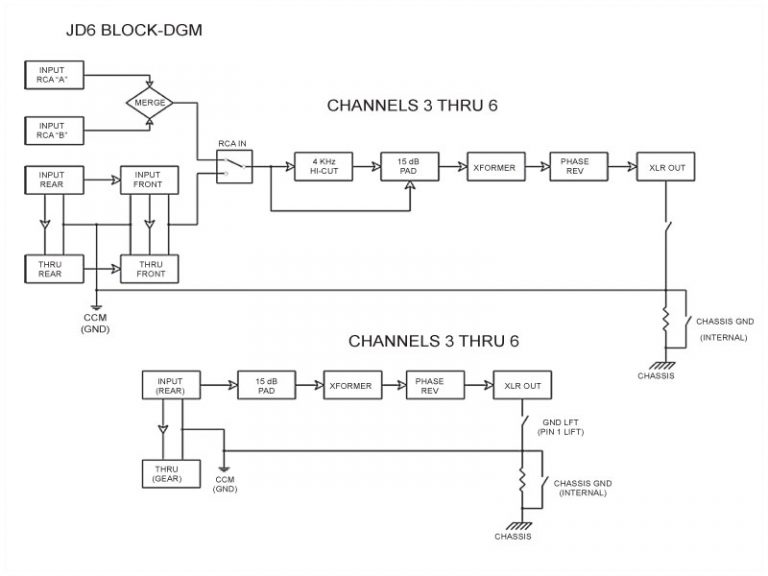

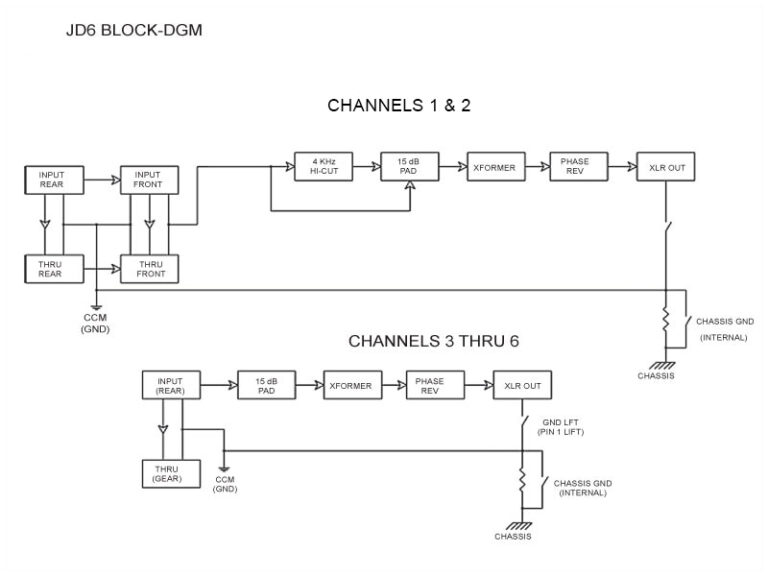

![](https://www.radialeng.com/wp-content/uploads/2018/05/jd6-block-diagram-768x576.jpg)

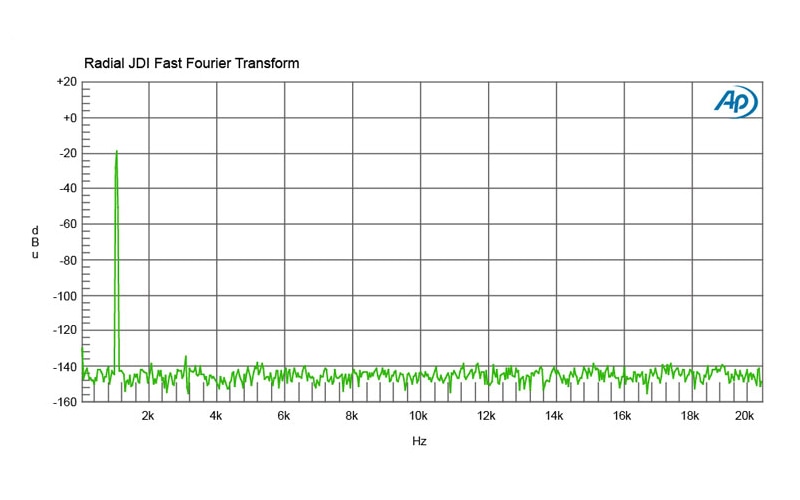

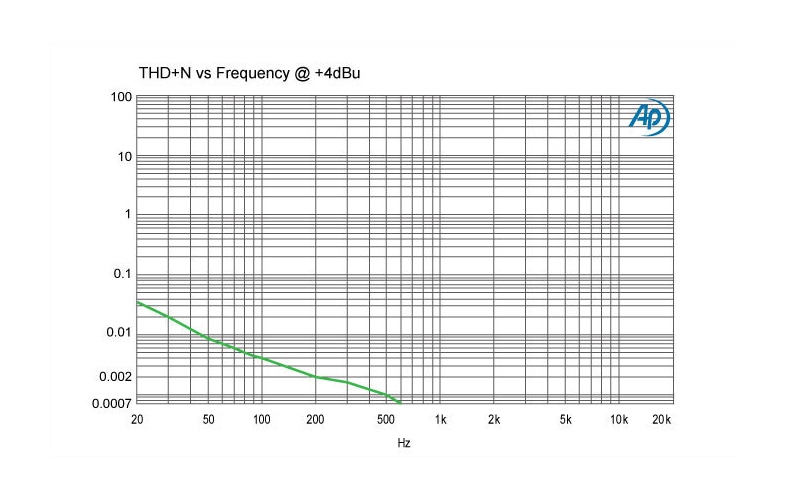

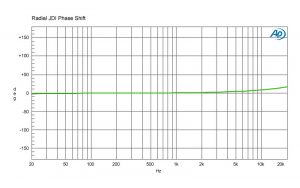

What do these graphs mean? Learn what to look for and why it matters.
