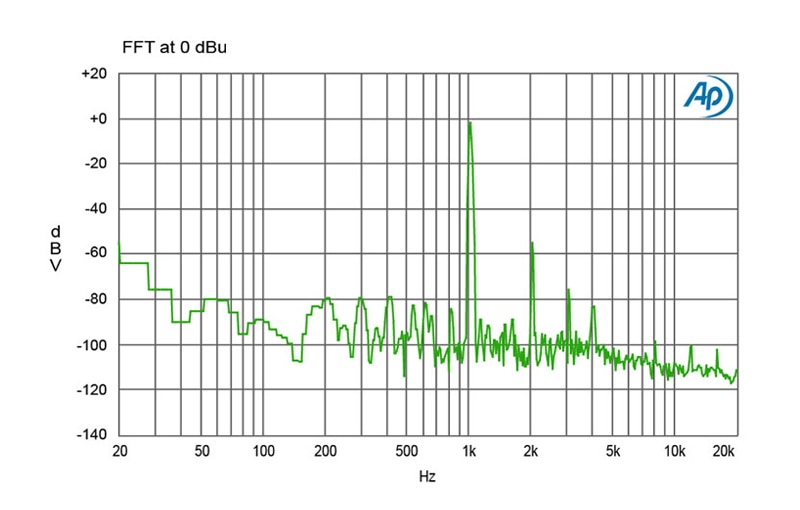

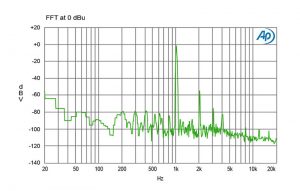

The Radial JDV-Pre is a ‘character’ product. In other words, although the specifications are important, only by listening to the JDV-Pre will you come to appreciate its true value. For instance, eliminating negative feedback for a more open sound is a trade off that will increase certain types of distortion. Building products is always a matter of compromise. One of the important specifications here is the FFT (Fast Fourier Transform) that shows the even order cascade of harmonics and the resulting warm Bessel curve. This is often considered to be the primary indicator of a good sounding circuit.
Specifications

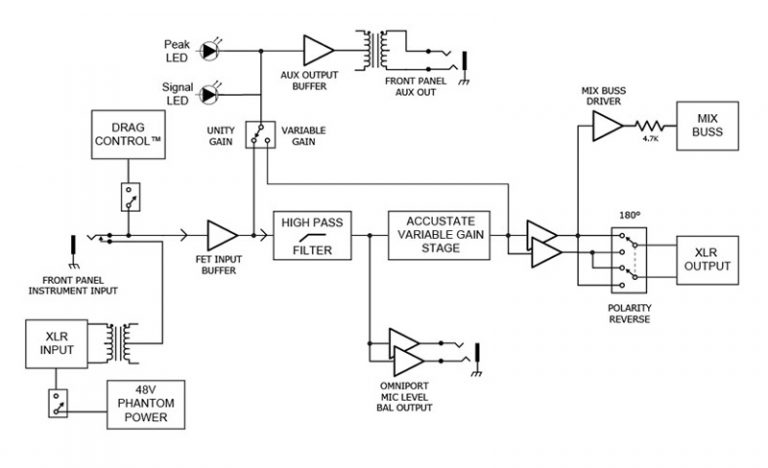

Block Diagram
Graphs
Specifications | ||
---|---|---|
Audio circuit type: | 100% discrete, class-A input | |

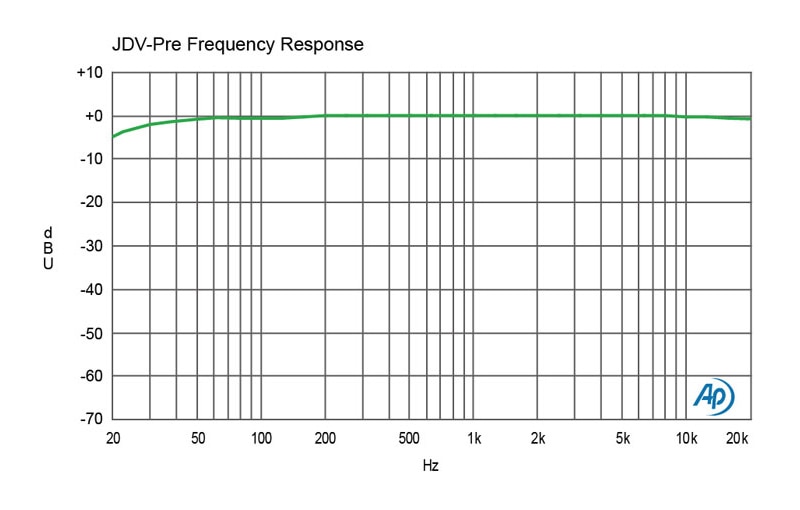

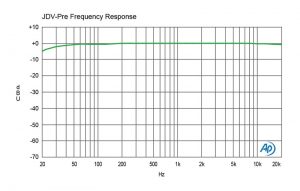

Frequency response: | 20Hz ~ 20KHz +0/-4dB | |
Dynamic range: | >93dB | |
Gain: | +46dB | |
Total harmonic distortion: | <0.05% @ +4dB | |

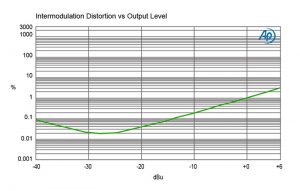

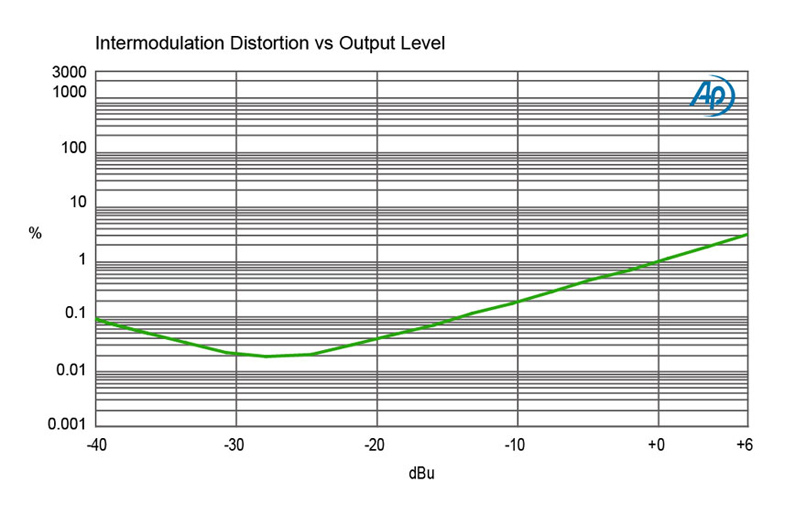

Intermodulation Distortion: | <1% @ +4dB | |
Input Impedance: | 3.9 megΩ ( 1/4" Input, Drag off); 22k ~ 500kΩ (1/4" input with Drag); 7kΩ (XLR input); 50 ~ 2.7kΩ (XLR input with Drag) | |
Equivalent Input Noise: | -90dBu | |
Features | ||
Phantom Power, OmniPort | ||

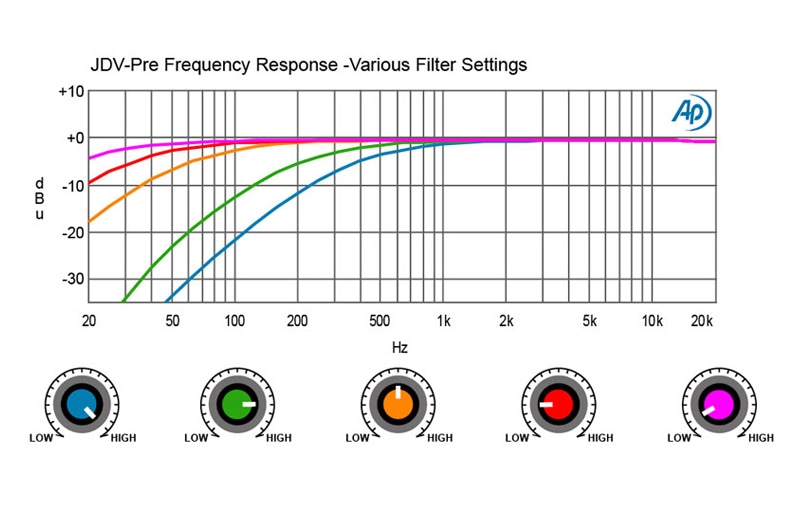

Extras: | High pass filter variable from 5Hz to 2kHz; 48V, 10mA phantom power | |
General | ||
Construction: | 14-gauge steel | |
Size (L x W x D): | 9 x 6.5 x 2" | |
Weight: | 1.5lbs (0.7Kg) | |
Power: | 80mA | |
Conditions: | For use in dry locations only between 5°C and 40°C | |
Warranty: | Radial 3-year, transferable |
