Specifications | ||
---|---|---|
Audio circuit type: | Discrete Class-A - Transformer Isolated | |
Frequency response: | Shaped for guitar use | |
Dynamic range: | 114dB | |
Total harmonic distortion: | <0.015% (+10dBu input @ 1KHz | |
Intermodulation Distortion: | 0.03% (+10dBu input @ 1KHz) | |
Input Impedance: | 15kΩ | |
Output Impedance: | 2kΩ (XLR out) | |
Noise Floor: | -100dBu below 0dBu | |
Maximum Input: | 120W @ 8Ω | |
Maximum Output: | +14dBu (clip level) | |
Features | ||
180° polarity reverse, Ground lift | ||
Input Connectors: | One 1/4" input | |
Output Connectors: | One XLR output, one 1/4" output | |
Extras: | Bass extension lowers frequency response for bass guitar, 300W amp increases power handling from 100W to 300W, Active speaker emulation band-pass filter | |
General | ||
Construction: | 14-gauge steel chassis and outer shell | |
Size (L x W x D): | 6.25" x 5" x 2" (159 x 127 x 51mm) | |
Weight: | 2.80lbs (1.28 kg) | |
Power: | 48V phantom or +15VDC/400mA adapter Included | |
Conditions: | For use in dry locations only between 5°C and 40°C | |
Warranty: | Radial 3-year, transferable |

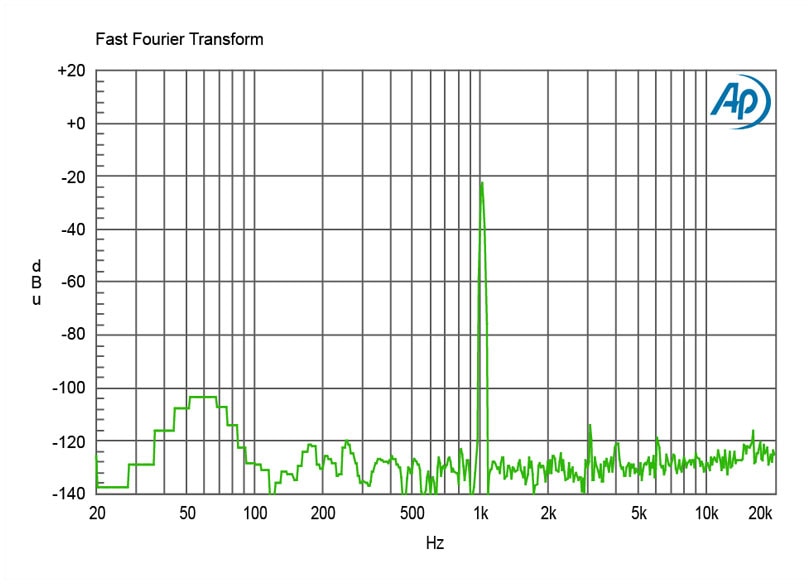

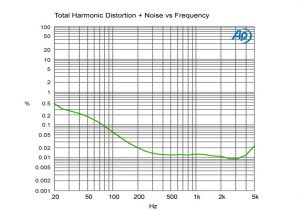

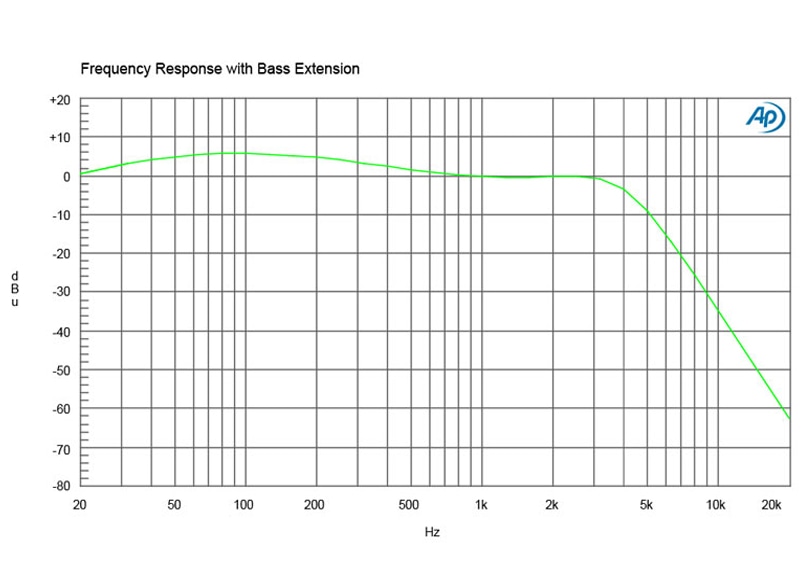

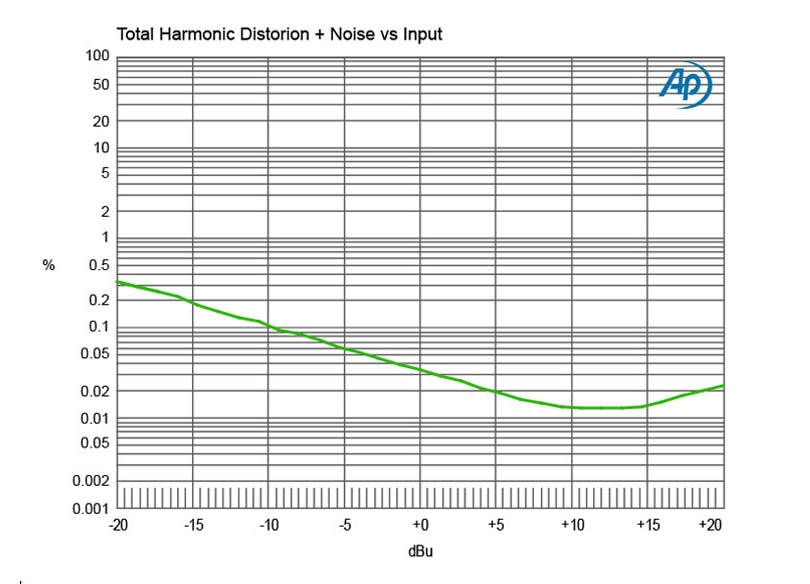

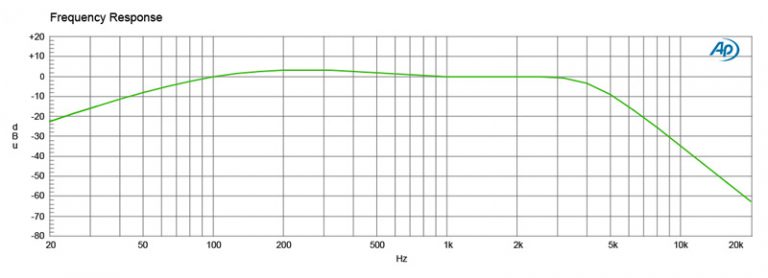

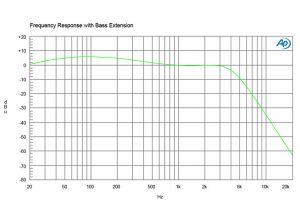

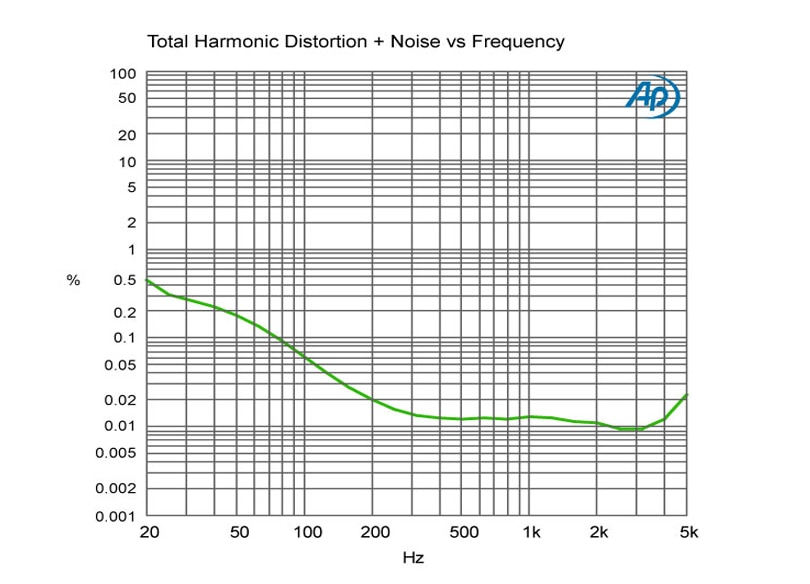

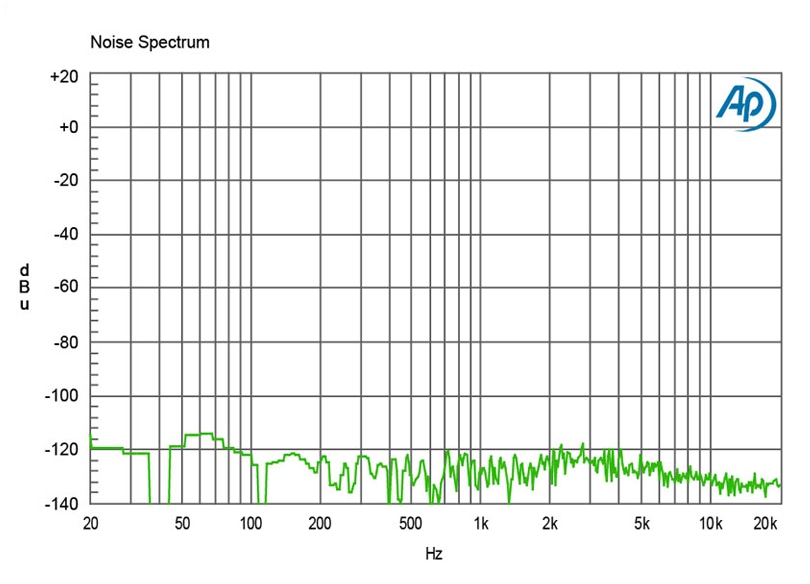

Frequency Response
What do these graphs mean? Learn what to look for and why it matters.
Learn More
