In many ways, printing out the specifications of the JDX Direct-Drive is a moot point. The Radial JDX Direct-Drive has been designed to ‘sound good’ by emulating the sonic character of iconic guitar amps. In other words, the Direct-Drive sound has absolutely nothing to do with a ‘flat frequency response’ or the typical specifications that engineers will consider. It is in fact the opposite. We have however taken the time to minimize distortion so that the Direct-Drive delivers the signal correctly without introducing noise. We also felt it worthwhile to show you the resulting EQ curves so you can get a first hand view of how we will ruin your sound! Have fun!
Specifications

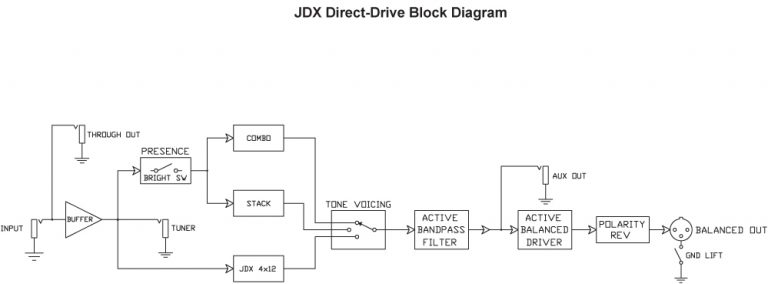

Block Diagram

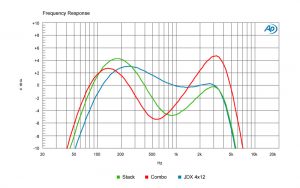

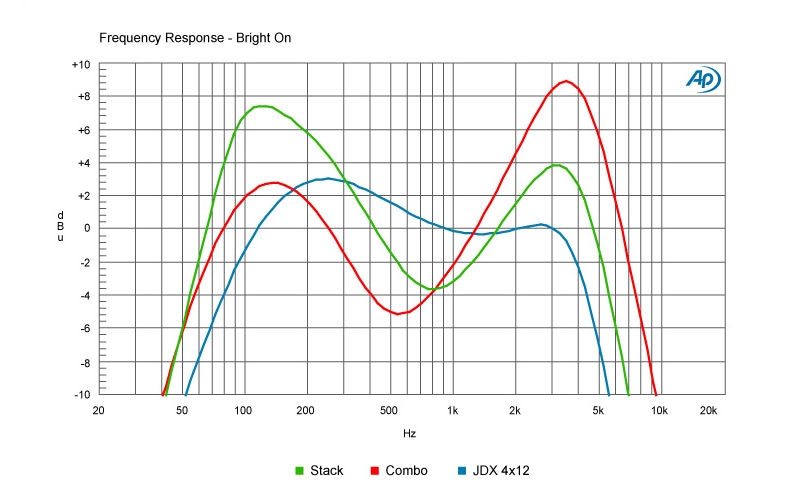

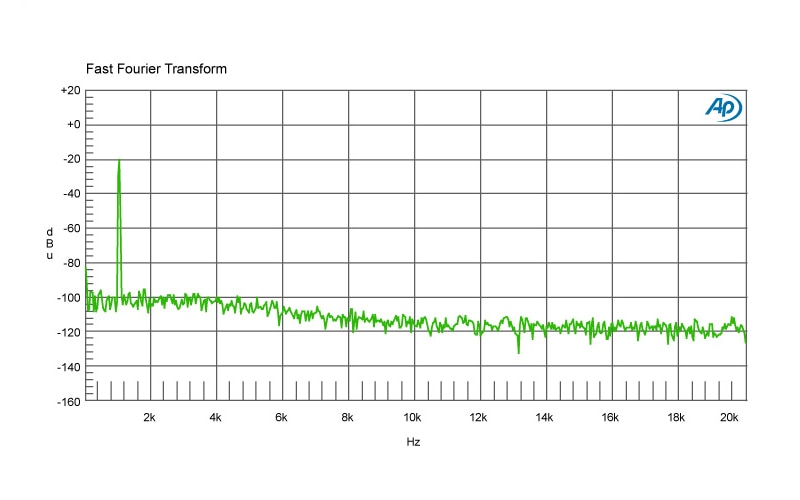

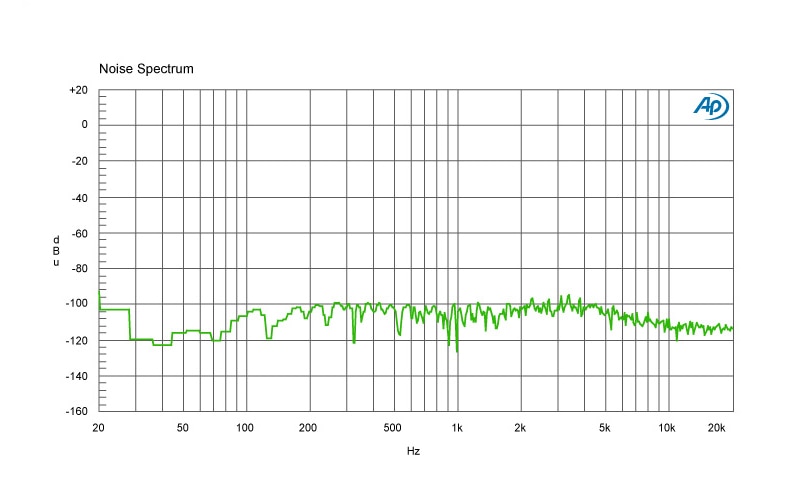

Graphs
| Specifications | ||
|---|---|---|
| Audio circuit type: | Class-A BiFET input buffer with electronic frequency shaping circuitry | |
| Frequency response: | Shaped for guitar use | |
| Dynamic range: | 83dB to 100dB | |
| Clip Level: | > +5dBu | |
| Intermodulation Distortion: | >0.1 @ -15dBu Out | |
| Output Impedance: | 600 Ohms (XLR) 100 Ohms (1/4") | |
| Noise: | -78dBU | |
| Maximum Input: | > +5dBu | |
| Features | ||
| 180° polarity reverse, Ground lift, Speaker filter | ||
| Input Connectors: | 1/4" | |
| Output Connectors: | 1/4" thru and amp tone output, XLR | |
| Extras: | Always on Tuner Output | |
| General | ||
| Construction: | 14-gauge steel chassis and outer shell | |
| Size (L x W x D): | 4.75" x 3.625" x 2" (121 x 92 x 51mm) | |
| Shipping weight: | 1.6 lbs. (.7 kg) | |
| Power: | 40mA, 9VDC (center pin negative) | |
| Conditions: | For use in dry locations only between 5°C and 40°C | |
| Warranty: | Radial 3-year, transferable | |
