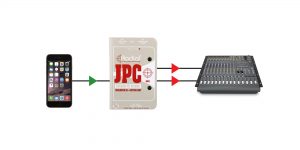

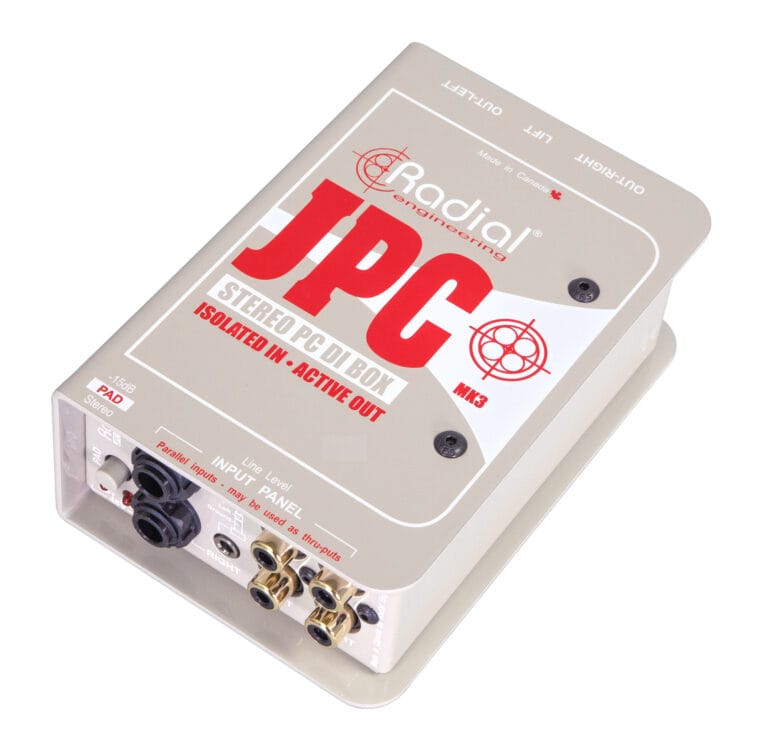

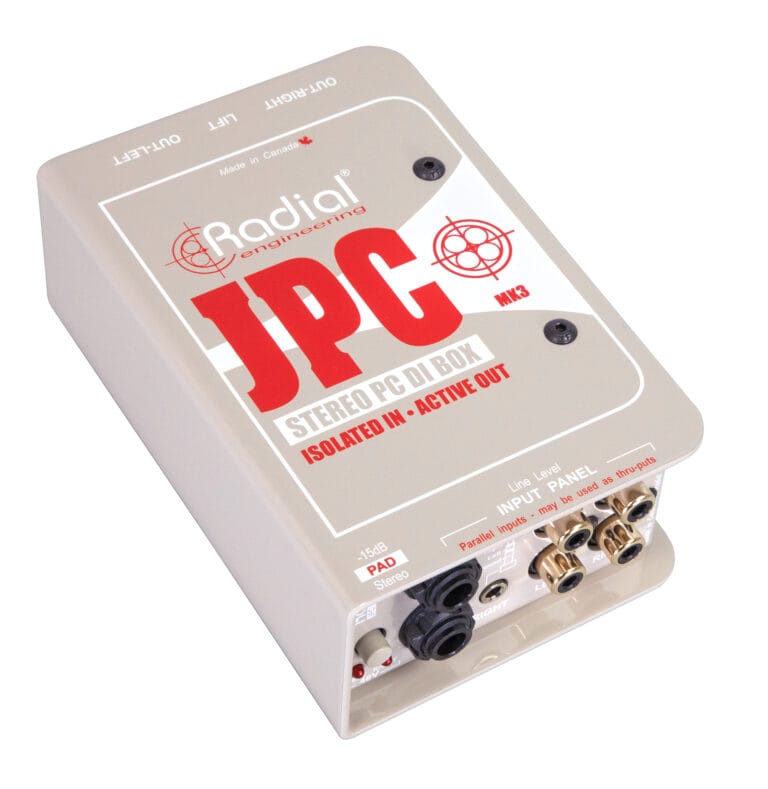

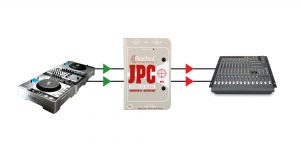

The JPC is a stereo consumer to mic level interface that offers a myriad of input connector options to simplify interfacing your computer, DVD/CD, MP3 player or other consumer audio device with the world of balanced professional audio equipment. As with all Radial products, tremendous attention has been paid to quality construction and delivering exceptional audio performance while eliminating noise.
Specifications

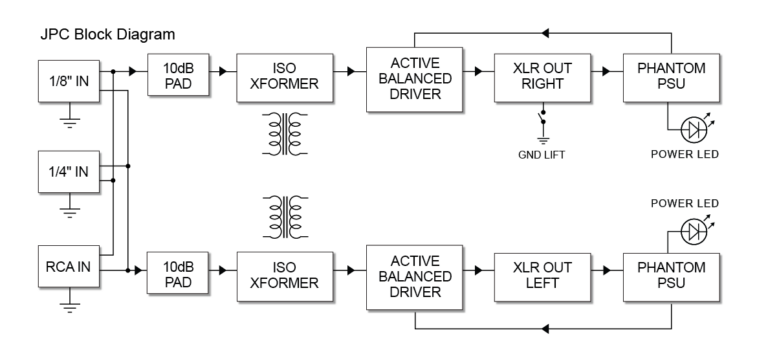

Block Diagram

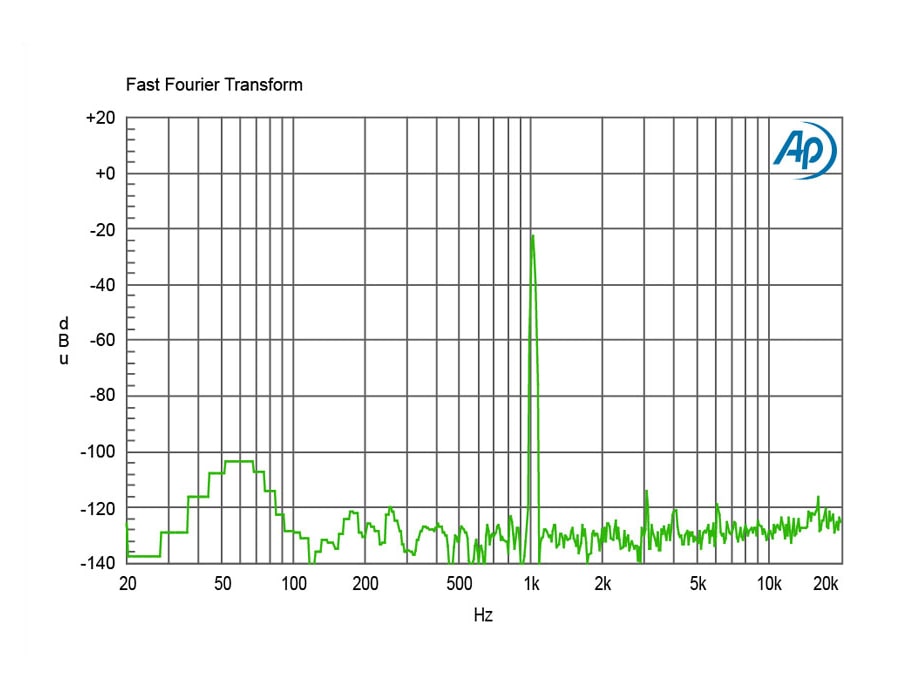

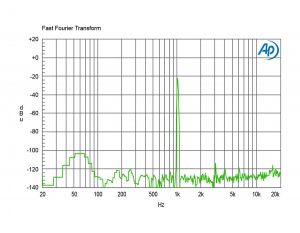

Graphs
Specifications | ||
---|---|---|
Audio circuit type: | Unity Gain buffers and inverters using low noise high end audio grade operational amplifiers | |
Number of channels: | 2 | |
Frequency response: | 20Hz ~ 20kHz +/- 2dB | |
Dynamic range: | 111dB | |

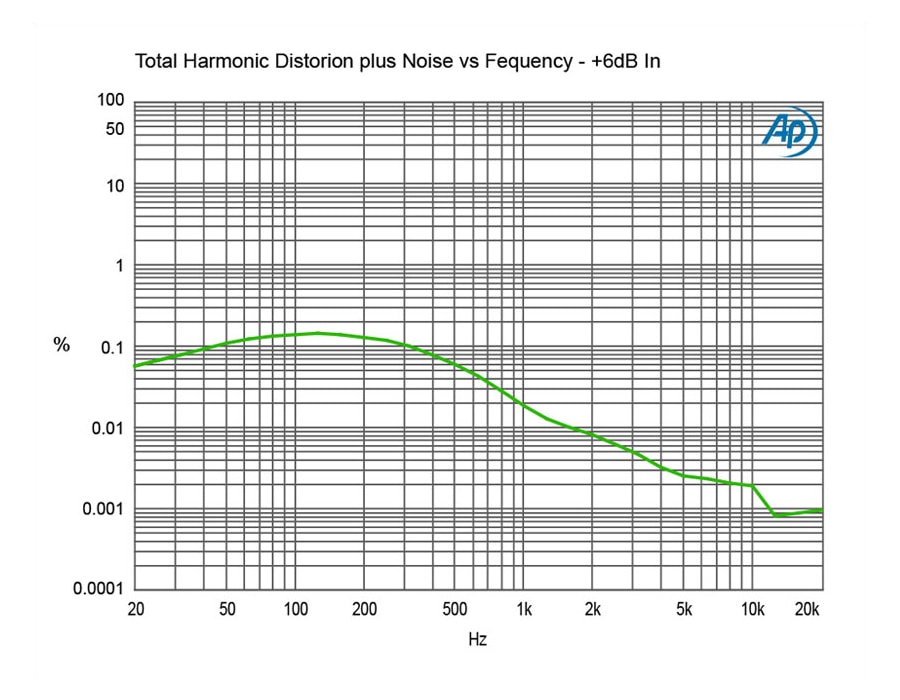

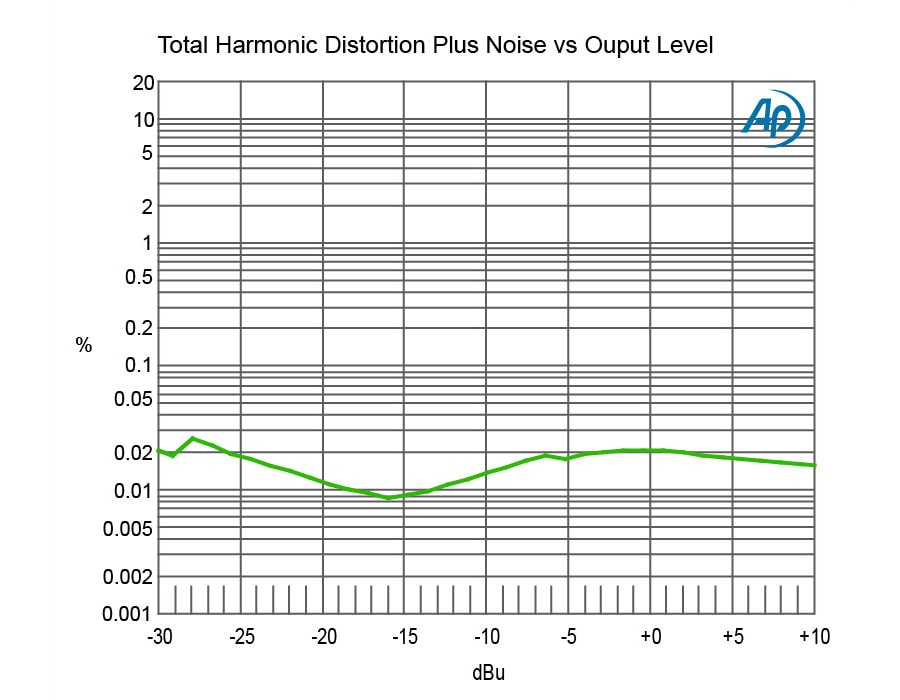

Total harmonic distortion: | 0.01% @ -15dBu Output | |
Intermodulation Distortion: | Less than 0.15% at any level below clipping | |

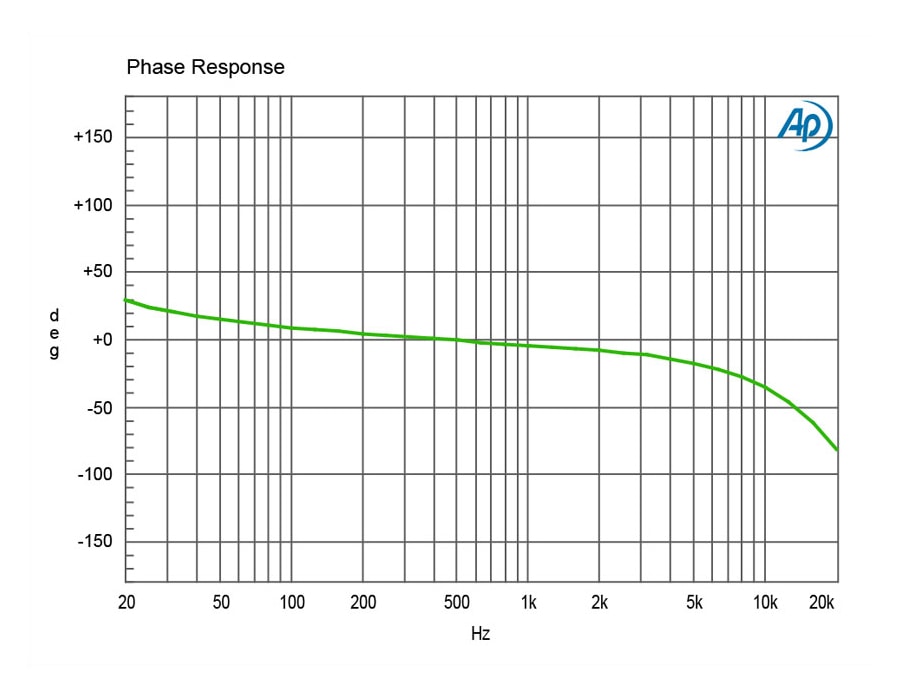

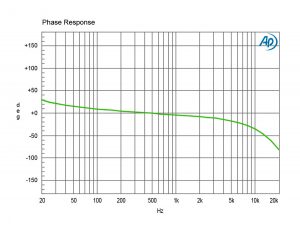

Phase Deviation: | +29º at 20Hz | -5º at 1kHz | -80º at 20kHz | |
Input Impedance: | 10kΩ | |
Output Impedance: | 600Ω | |
Equivalent Input Noise: | -94dBu | |

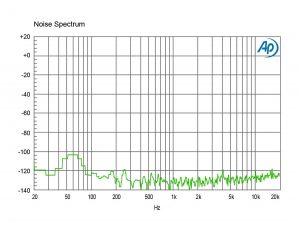

Noise Floor: | -97dB below 0dB Out | |
Maximum Input: | +17dBu | |
Features | ||
Input pad, Ground lift, Phantom Power | ||

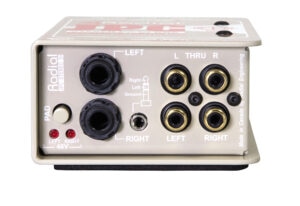

Input Connectors: | 1/4", RCA, 3.5mm TRS | |

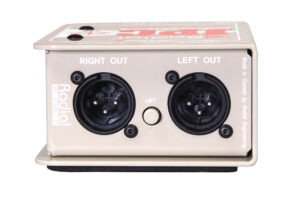

Output Connectors: | XLR | |
General | ||
Construction: | 14 gauge steel chassis and outer shell | |
Size (L x W x D): | 3.3" x 5.0" x 2" (84 x 127 x 48mm) | |
Weight: | 1.55lb (720 g) | |
Power: | 48V Phantom Power (each channel requirers 48V phantom) | |
Conditions: | For use in dry locations only between 5°C and 40°C | |
Warranty: | Radial 3-year, transferable |
![](https://www.radialeng.com/wp-content/uploads/2018/04/jpc-block-diagram.jpg)
Frequency Response
![](https://www.radialeng.com/wp-content/uploads/2018/04/jpc-graph-freq-response-768x342.jpg)
