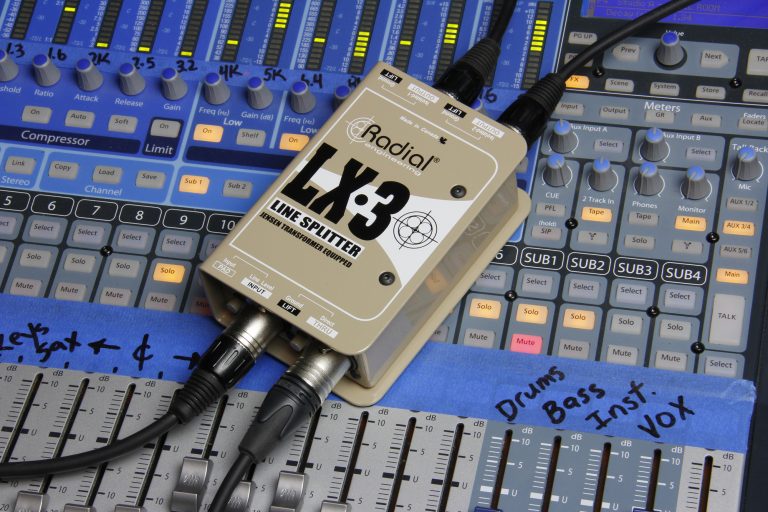

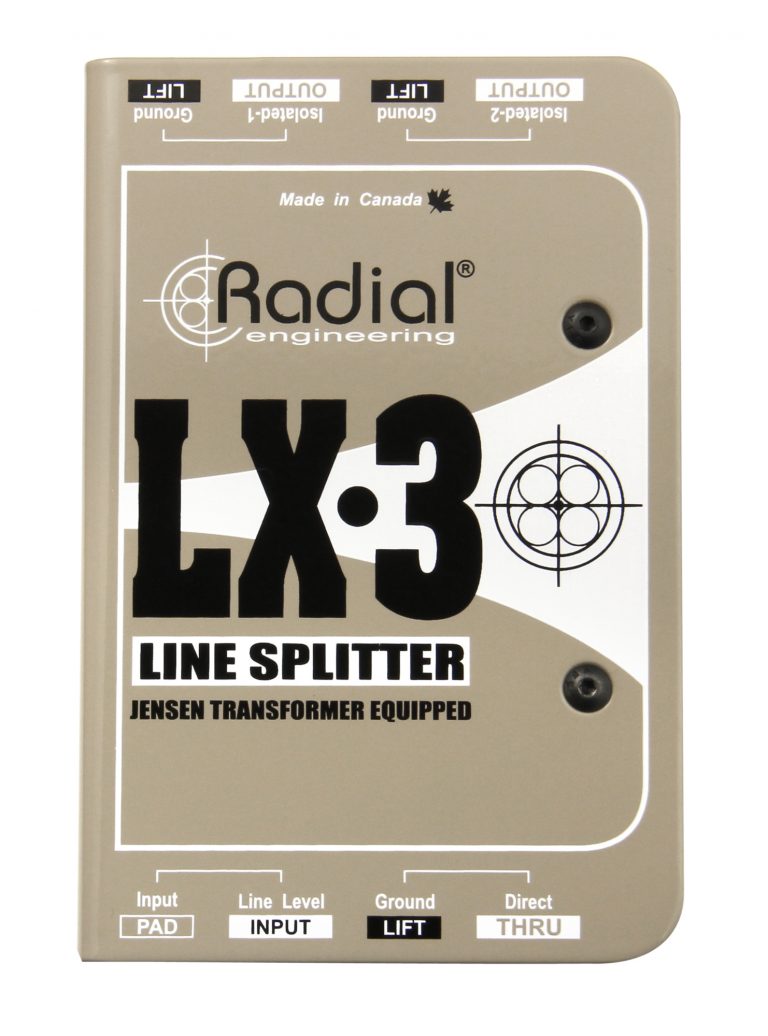

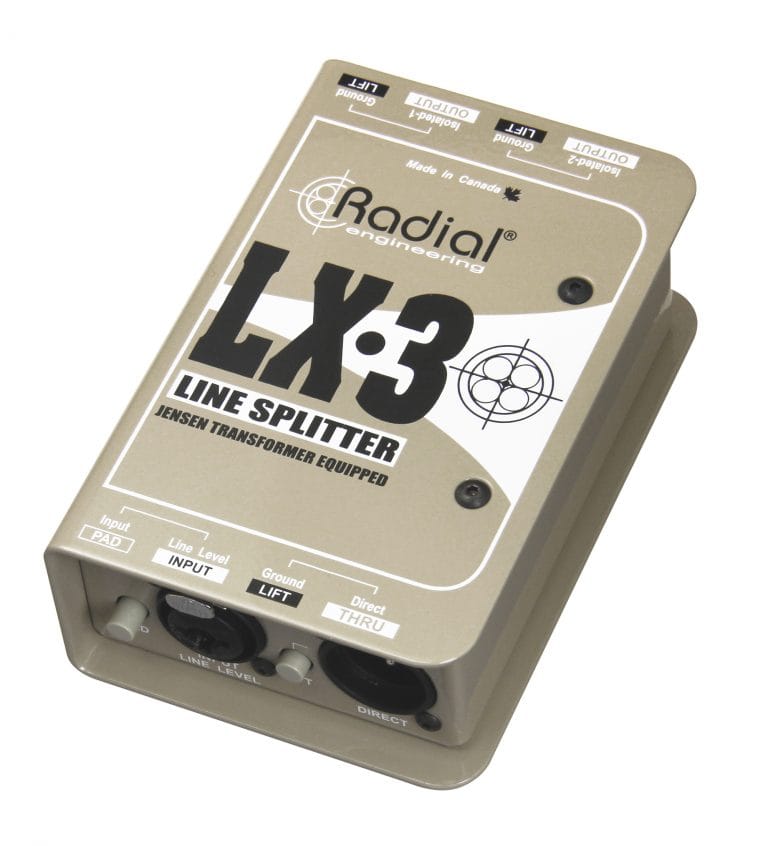

LX-3 Specifications

The LX-3 is a simple yet very powerful problem-solving device. It allows you to split any line-level signal to up to three destinations simultaneously without signal degradation or noise. The heart of this unit is the Jensen® JT-123-FLPCH transformer, which boasts an exceptionally wide bandwidth, low distortion, and minimal deviation from linear phase. Two isolated outputs help eliminate buzz and hum from ground loops, and an input pad allows very hot line-level signals to be used without distortion. An additional direct output is also available for connection to a third destination, and all outputs have ground lifts for further noise abatement. A 14-gauge solid steel enclosure helps protect against signal interference and prevents the circuit board from being torqued.

Specifications
Audio circuit type: Passive, transformer based
Transformer: Jensen JT-123-FLPCH
Number of channels: 1 In, 3 Out
Frequency response: 20Hz - 20kHz +/-0.5dB
Dynamic range: 140dB
Gain: -1.5dBu
Phase Deviation: +0.6° @ 20Hz
Input Impedance: 712Ω
Output Impedance: 112Ω
Common Mode Rejection Ratio: 105dB @ 60Hz, 70dB @3kHz
Noise Floor: -120dBu
Maximum Input: +20dBu
Features
Input pad, Ground lift

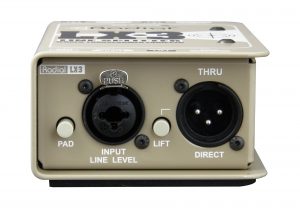

Input Connectors: Combo XLR / 1/4"

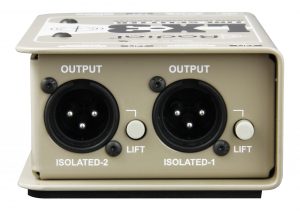

Output Connectors: XLR iso and direct
General
Construction: 14-gauge steel
Size (L x W x D): 84mm x 127mm x 48mm (3.3" x 5" x 2")
Weight: 0.7kg (1.5lbs)
Shipping size (L x W x D): 102 x 76 x 165mm (4" x 3" x 6.5")
Shipping weight: 0.87 kg (1.92 lbs)
Power: Passive, no power required
Conditions: For use in dry locations only between 5°C and 40°C
Warranty: Radial 3-year, transferable

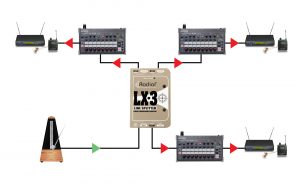

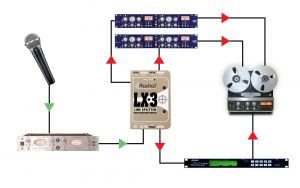

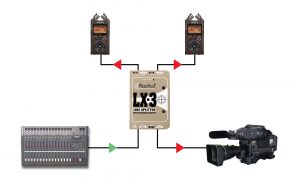

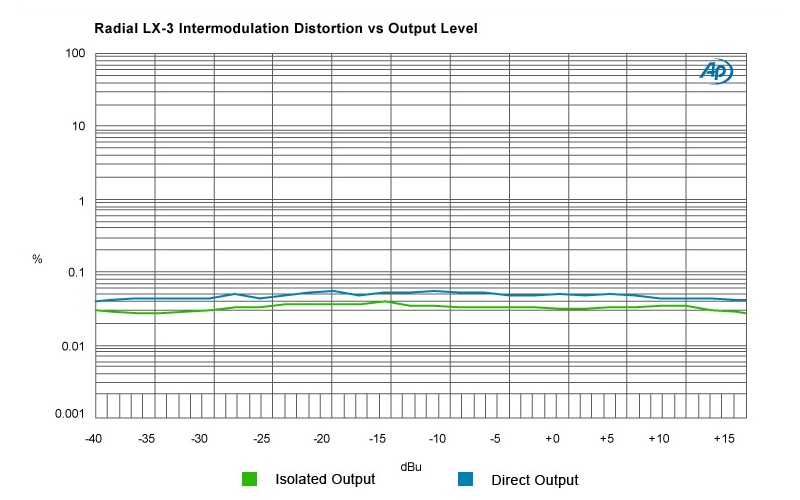

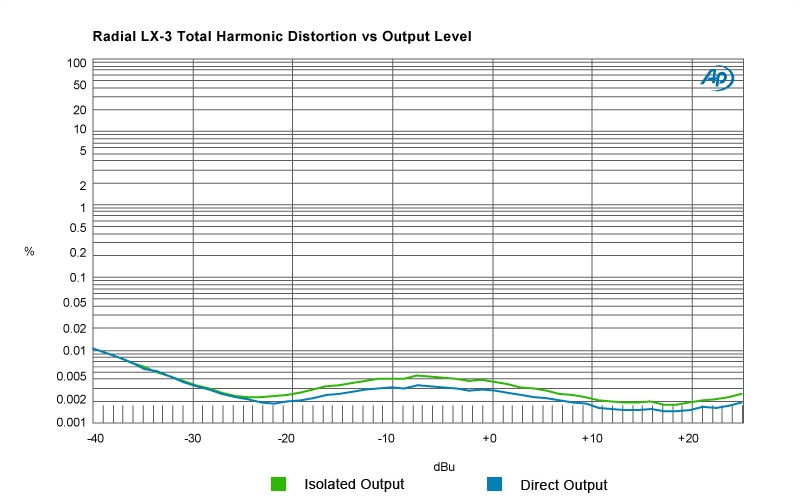

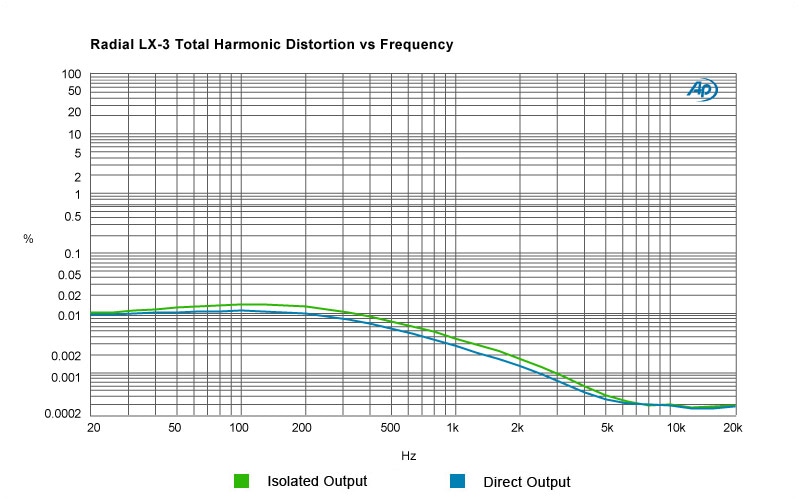

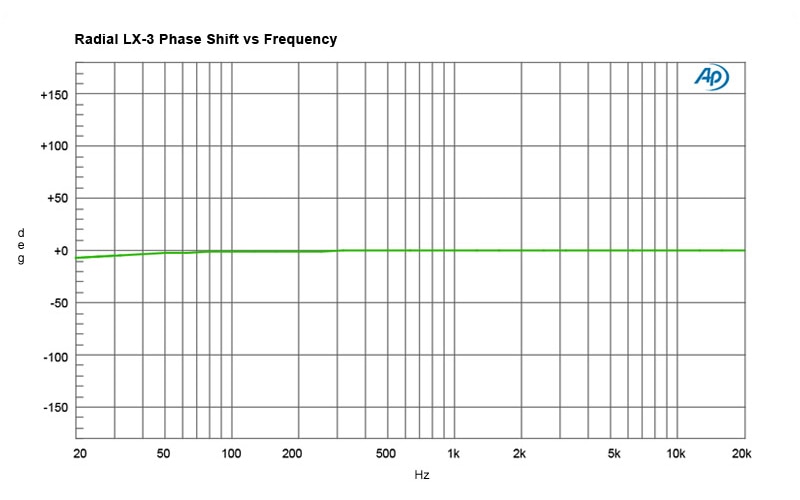

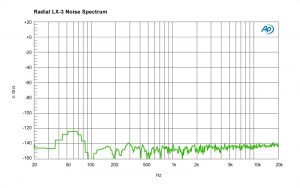

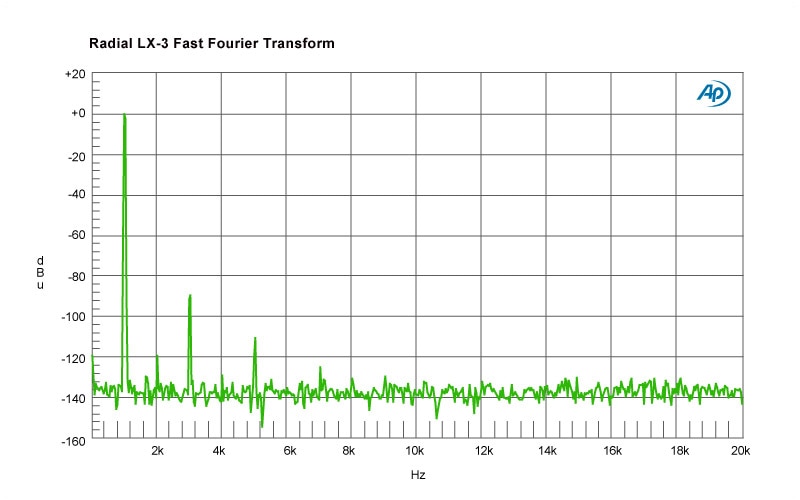

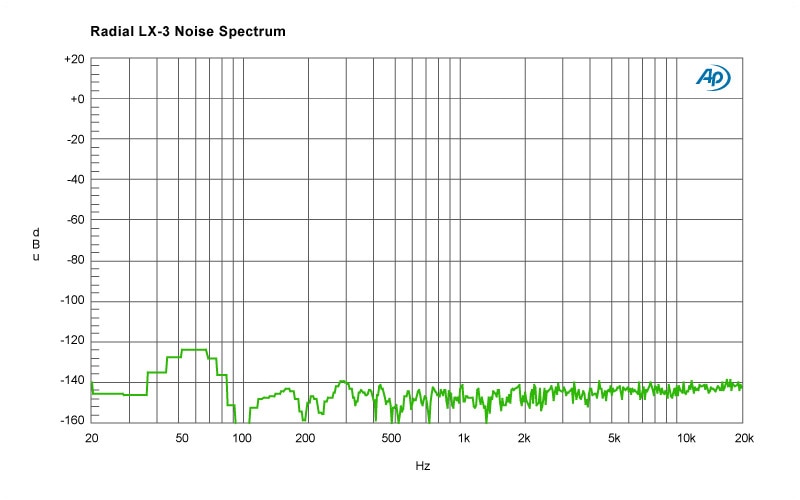

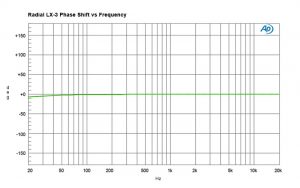

Frequency Response
