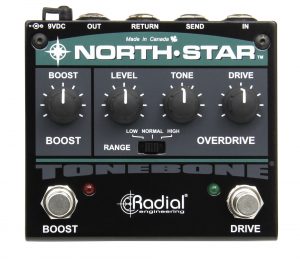

Boost Gain
Variable Class-A power booster – 100% discrete with up to +24dB of clean gain.
Boost Footswitch
Activates the power booster and the effects loop.
Out
¼” output for connection to your amp.
Range
3-position switch used to boost or cut high frequencies to suit your guitar and amp setup.
Level
Sets the output volume level for the overdrive

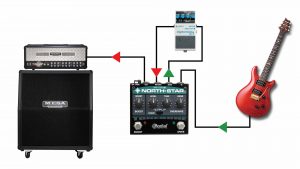

EXF Loop
Send & return ¼” jacks used to connect pedals. The EFX Loop is activated by using the Boost footswitch and used to add effects when soloing.
Tone
Brightens or darkens the overdrive circuit to suit your guitar and amp setup.
Drive
Used to adjust the overall amount of distortion introduced in the overdrive circuit.
Drive Footswitch
Activates the overdrive circuit.
14-Gauge Steel
I-beam enclosure makes it impossible to torque the PC board, eliminating cold solder joints.
Powder Coat
Durable finish keeps your North-Star looking great for years.
PSU
Connection for 9VDC power supply (center-pin negative)
