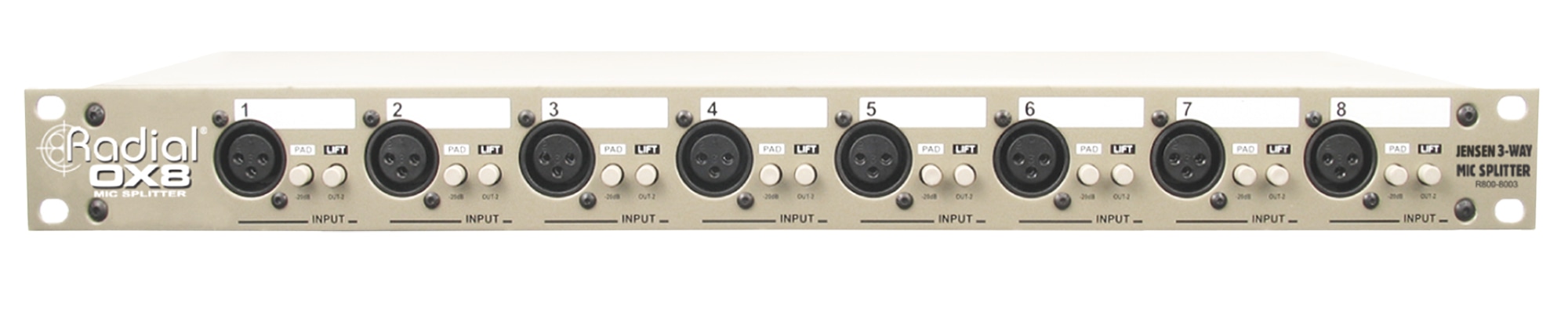

XLR Mic Input
Standard 600Ω balanced microphone input wired in parallel with rear panel D-sub.
ID Labels
For wax pencil makes setups easy. A great help when troubleshooting!
-36dB Pad
Reduces sensitivity to enable line level signals to be connected without distortion.
Ground Lift
Disconnects the ground at the auxiliary output to help eliminate ground loops.

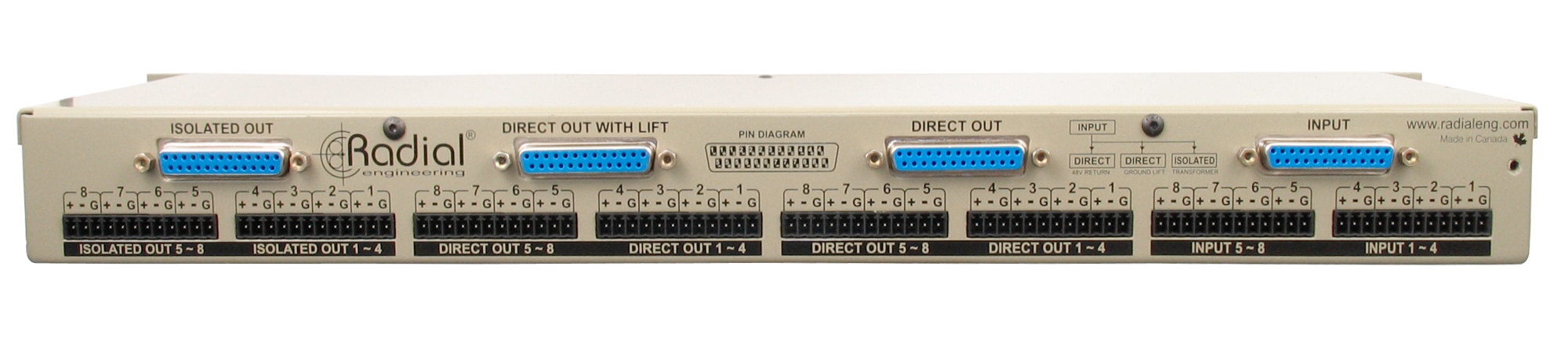

Isolated Out
Output provides ultra-quiet connection by eliminating hum & buzz caused by ground loops.
Auxiliary
Direct ouput with front-panel ground lift switch allows hard-wire passive split to be used for monitors or broadcast feed.
Direct Out
output set offers choice of 25-pin D-sub connector for 8 channel cable harness or Phoenix Euroblock connection for permanent installation.
Input
Is hardwired to the direct out to provide return path for 48V phantom power to supply condenser mics and active direct boxes.
