The Radial OX8 is an 8-channel passive microphone splitter. The passive design enables a microphone to feed two or even three consoles at the same time. The transformer coupled output provides isolation to eliminate DC from travelling between mixers, thus reducing noise caused by ground loops. The result is exceptionally low noise in even the most difficult environments. A choice of Jensen or Radial transformer is offered, thus enabling the specifying engineer to select the transformer that best suits performance and budget criteria. The rest of the features are identical.
Specifications
Block Diagram

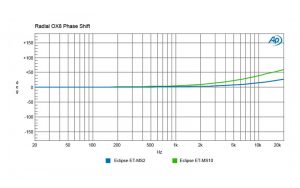

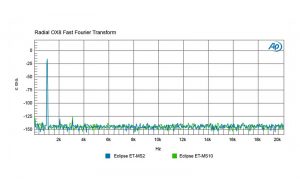

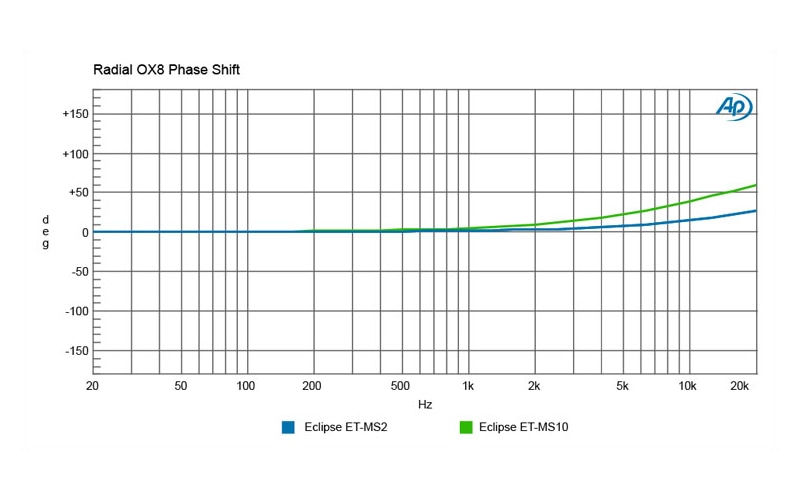

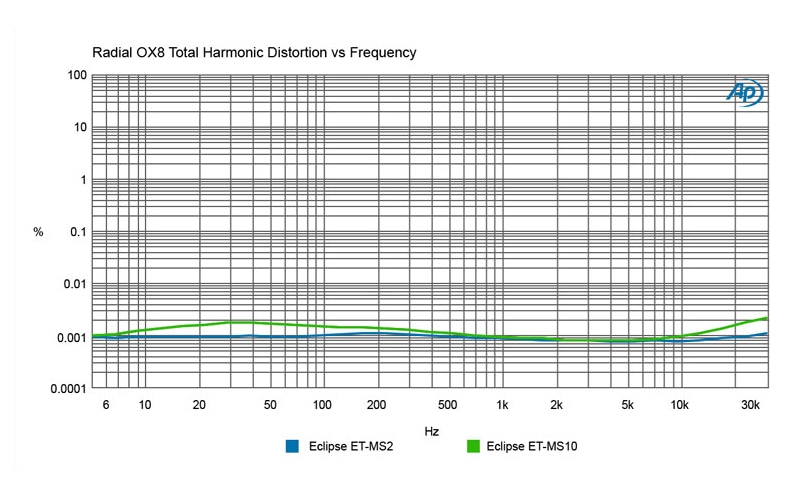

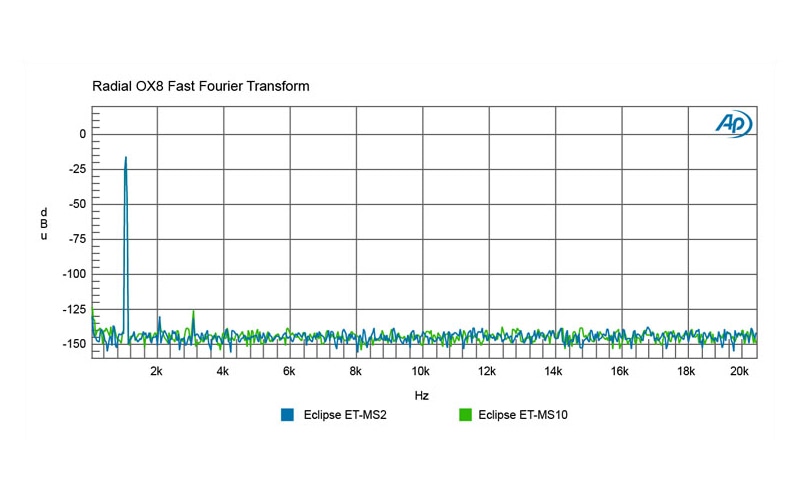

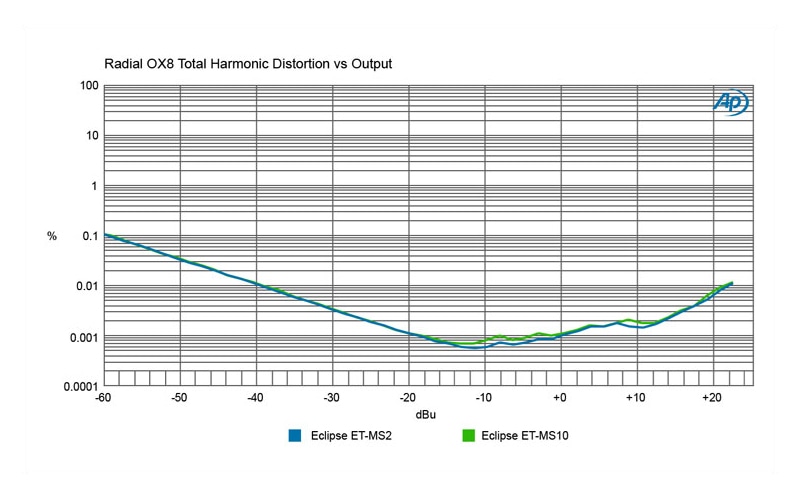

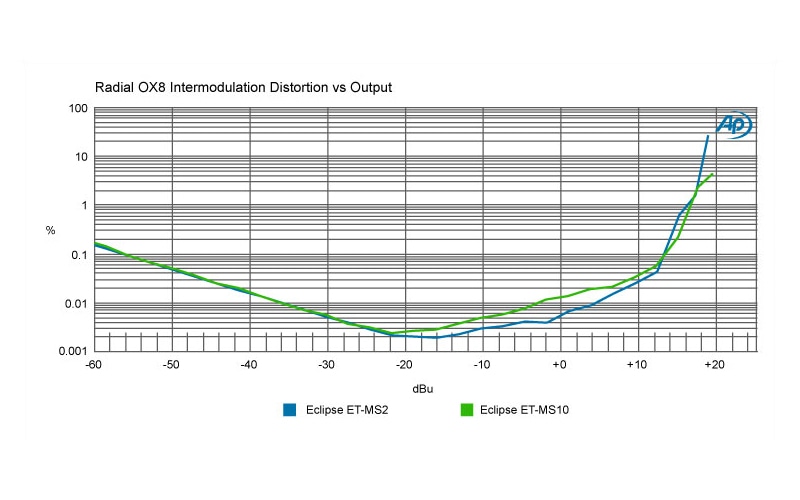

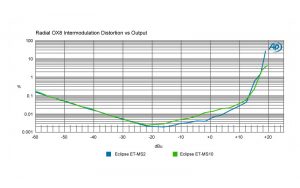

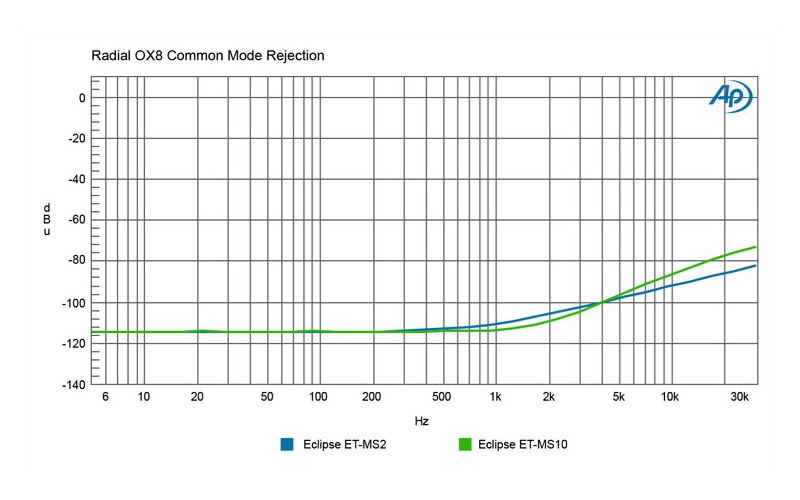

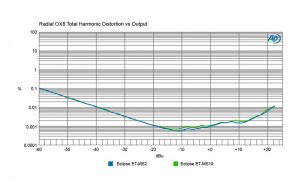

Graphs
Specifications | ||
---|---|---|
Audio circuit type: | Passive transformer based mic level splitter | |
Transformer: | choice of Jensen JT-MB-CPC or Radial Eclipse MS10 | |
Number of channels: | 8 | |
Frequency response: | Jensen 20Hz ~ 20KHz (+0dB/-0.2dB) | Radial 20Hz ~ 18KHz (+0dB/-3dB) | |
Dynamic range: | Jensen 140dB | Radial 140dB | |
Total harmonic distortion: | Jensen 0.003% @ 1kHz | Radial 0.005% @ 1kHz | |
Phase Deviation: | Jensen 0.7° @ 100Hz; 2.8° @ 20Hz | Radial 1° @ 100Hz; 5° @ 20Hz | |
Input Impedance: | Source dependent, 10kΩ with Pad on, balanced | |
Output Impedance: | Source dependent, 10kΩ with Pad on, balanced | |
Common Mode Rejection Ratio: | Jensen -115dB @ 60Hz | Radial 114dB @ 60Hz | |
Maximum Input: | Jensen +2dBu @ 20Hz | Radial +2dBu @ 20Hz | |
Features | ||
Input pad, Ground lift | ||
Input Connectors: | XLR, Euroblock, DB-25 | |
Output Connectors: | Euroblock, DB-25 | |
General | ||
Construction: | 14-gauge steel | |
Size (L x W x D): | 19" x 6" x 1.75" (48.25cm x 15.25cm x 4.45cm) | |
Weight: | 7.5lb (3.4 kg) | |
Shipping size (L x W x D): | 22" x 10.375" x 4.5" (55.9cm x 26.4cm x 11.4cm) | |
Shipping weight: | 8lb (3.63kg) | |
Power: | Passive, no power required | |
Conditions: | For use in dry locations only between 5°C and 40°C | |
Warranty: | Radial 3-year, transferable |
![](https://www.radialeng.com/wp-content/uploads/2018/04/ox8-block-diagram.jpg)
Frequency Response
![](https://www.radialeng.com/wp-content/uploads/2018/04/ox8-graph-frequency-768x295.jpg)
