This outlet will supply power even when the device is switched off, allowing you to easily connect and charge devices without powering on the entire rack.
1

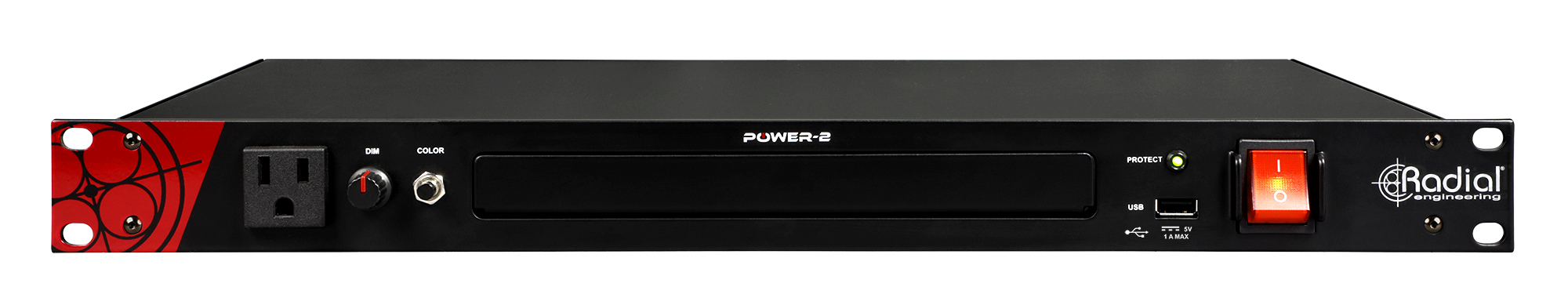

Dim Control
Adjusts the brightness level of the lights in the sliding LED tray.
2
Color Switch
Pressing this switch selects between seven color options for the lights in the sliding LED tray.
3
Sliding LED Tray
This adjustable panel illuminates devices mounted below the Power-2 in equipment racks.
4
USB Charging Port
5V/1A USB Type-A charging port for mobile devices such as smartphones and tablets.
5
Fault Protection Indicator
This LED illuminates when the Power-2’s Metal Oxide Varistor (MOV) is actively working. The MOV is designed to provide continuous protection for your equipment, against varying resistance and high-voltage spikes from the AC main power source.
6
ON/OFF
Backlit LED switch, which activates the eight rear panel power outlets.
7
1
2
Circuit Breaker
To help prevent damage to the Power-2 and connected devices, the circuit breaker will pop if the load exceeds 15A of current.
1

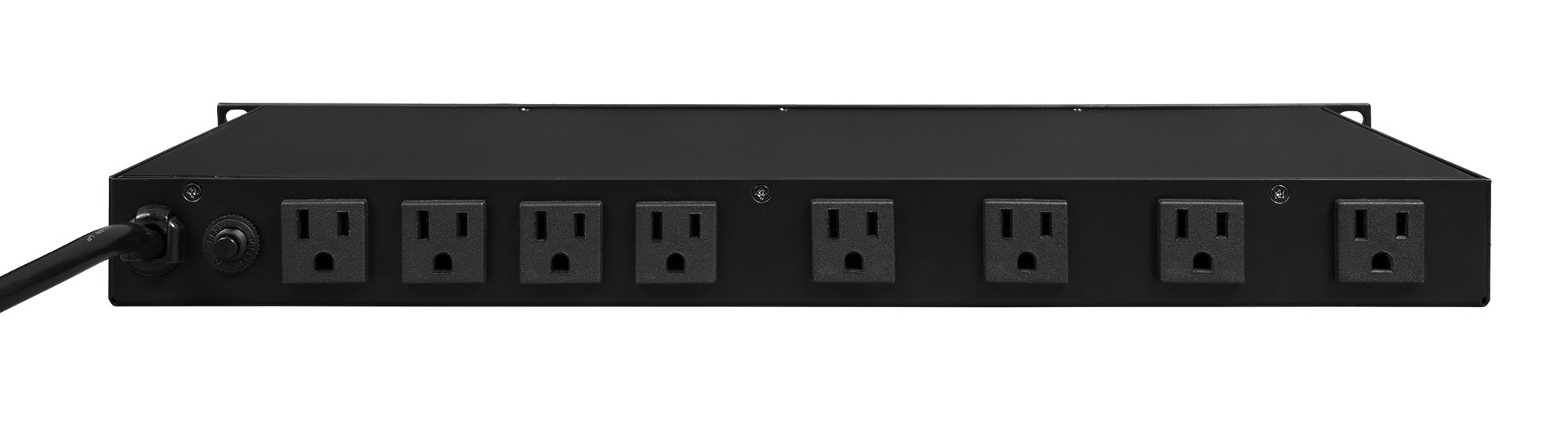

Rear Panel Outlets
The Power-2's eight rear power outlets are controled by the front panel on/off switch. Four of these include additional spacing between eachother to accomodate large ‘wall-wart’ power supplies.
