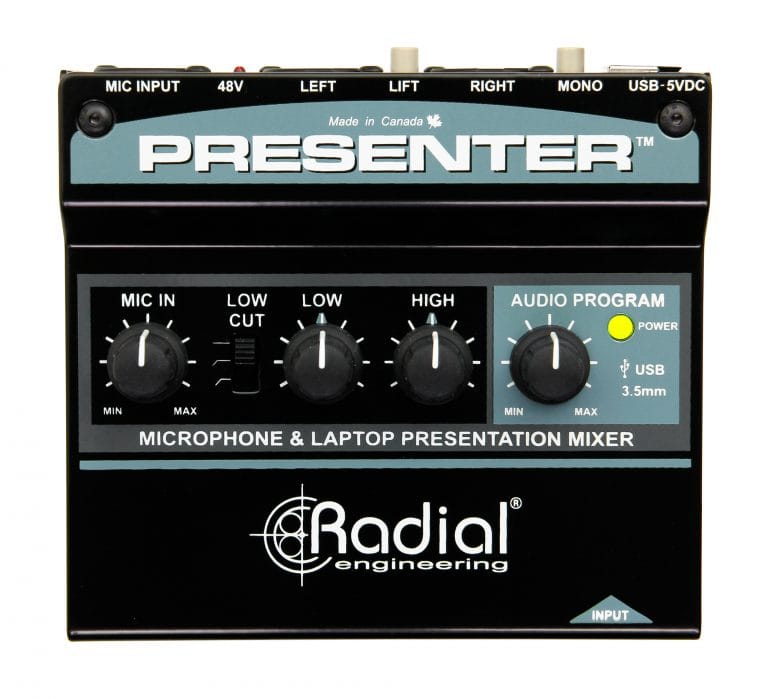

Presenter Features

1
2
3
4
5
6

Mic In

Controls the level of the XLR mic input.

1

Low Cut

3-position switch rolls excessive low frequencies.

2

EQ

Low and High controls allow you to adjust the tone of the microphone.

3

Audio Program

Controls the level of the USB audio input and the 3.5mm input.

4

Power LED

Illuminates when the Presenter is receiving power via USB.

5

3.5mm Program Input

Stereo TRS input allows you to playback audio from a smartphone or tablet.

6
1
2
3
4
5
6

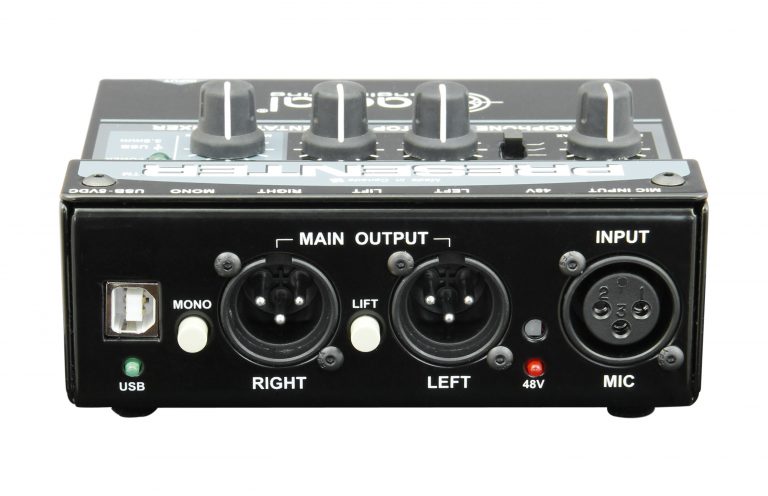

USB

Provides power for the Presenter and allows playback of high quality audio from a laptop.

1

Mono

Sums the left and right outputs to mono.

2

Main Outputs

Balanced XLR line outputs connect directly to powered PA speakers or mixing console.

3

Ground Lift

Ground lift switch disconnects pin-1 at the XLR outputs to remove buzz and hum.

4

48V

Recessed switch engages phantom power for condenser microphones.

5

Mic Input

Balanced XLR input to connect a microphone.

6

Presenter Resources

Part no: R800 8011 00
