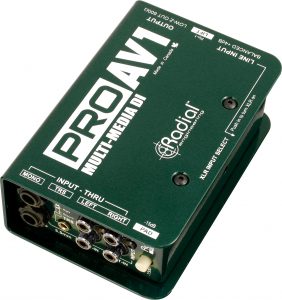

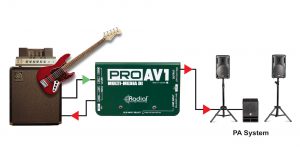

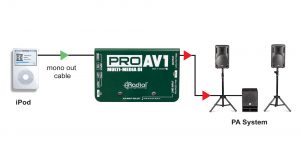

The Radial ProAV1 is a passive direct box designed to handle the extreme dynamics and frequency range that is now common with digital sources. Linear across the audio range, it exhibits low distortion at all frequencies, amazing signal handling and very little phase shift. The result is a clean, natural sounding rendition that is both noise-free and dependable.
Specifications

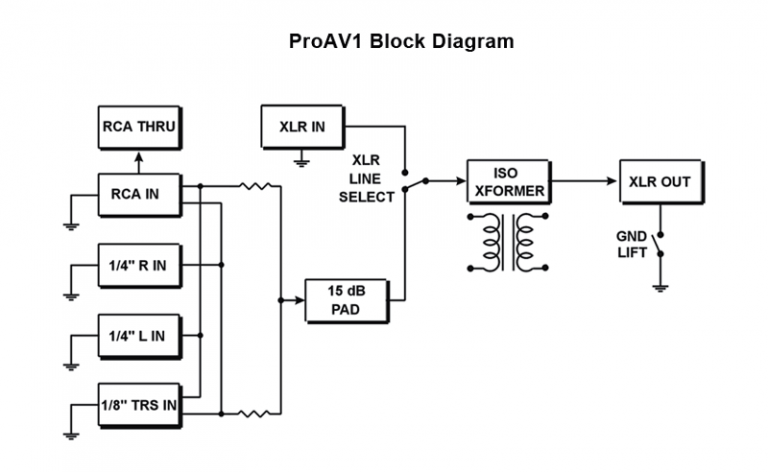

Block Diagram

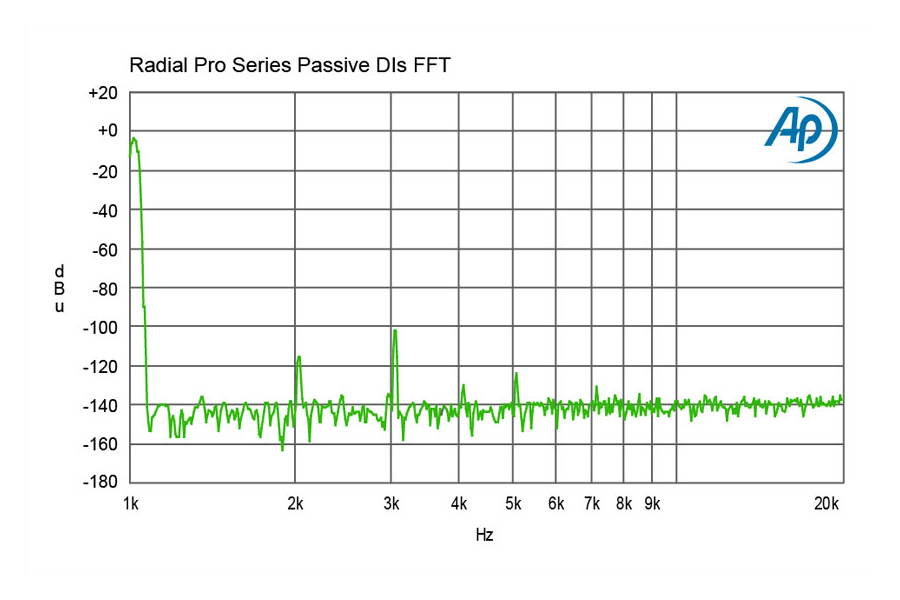

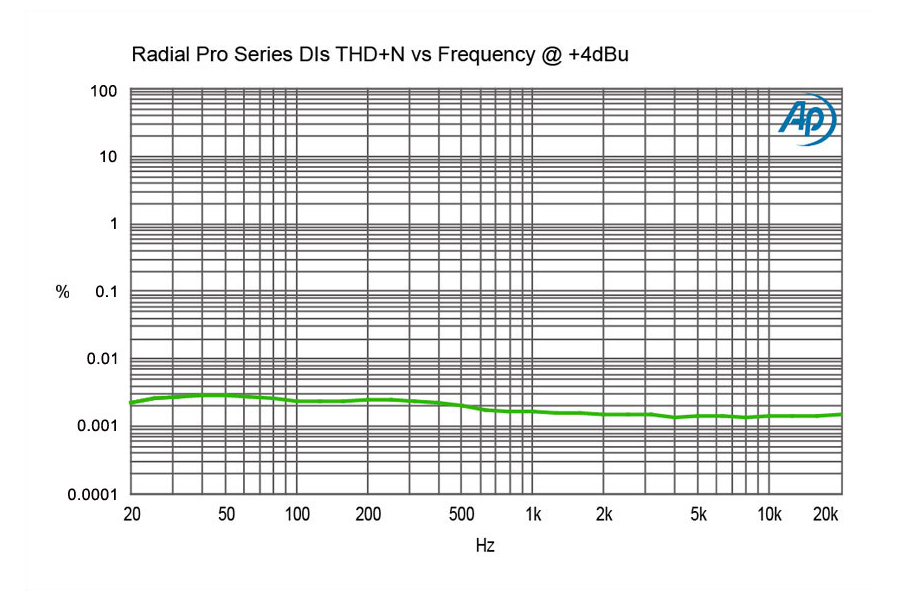

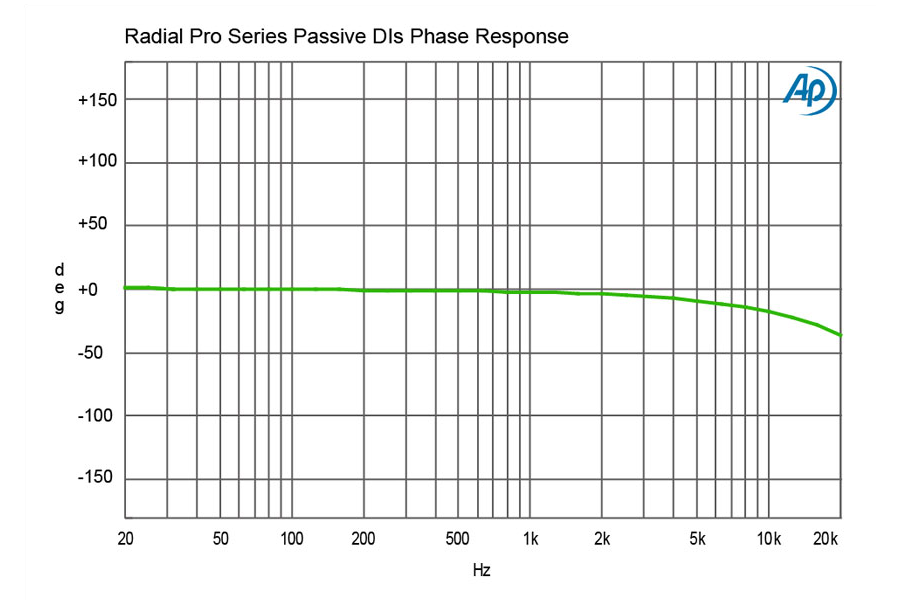

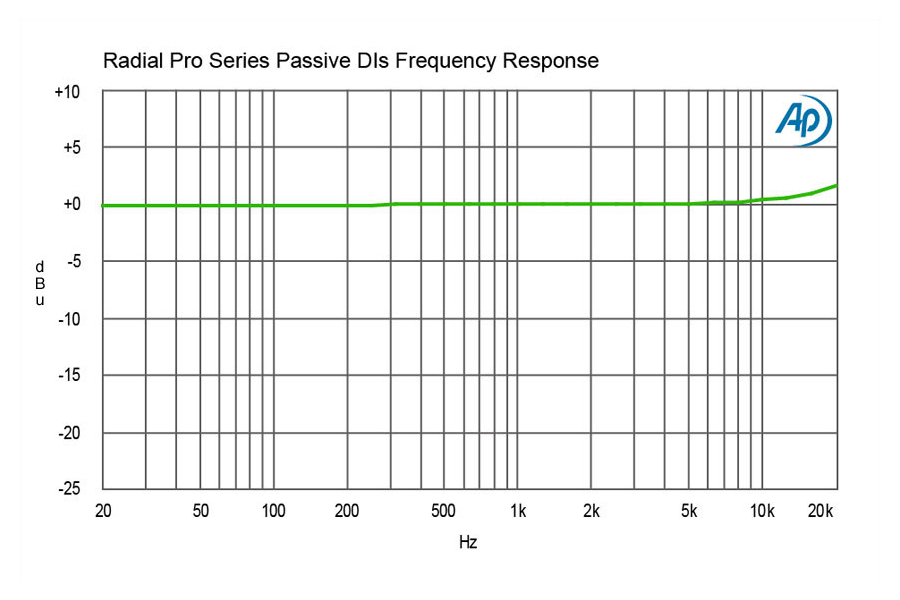

Graphs

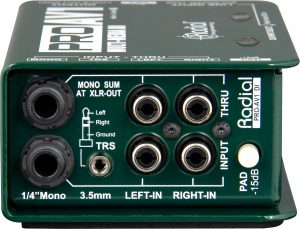

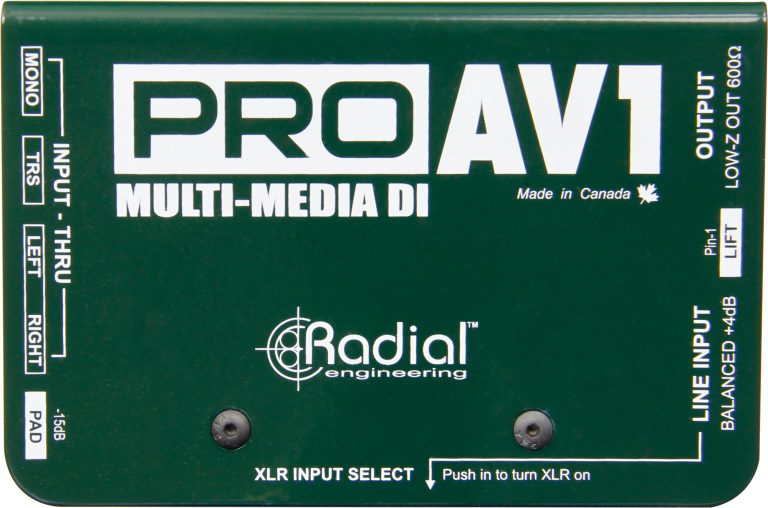

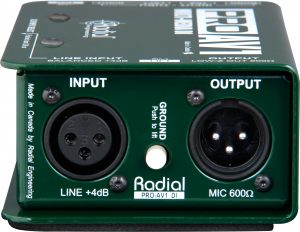

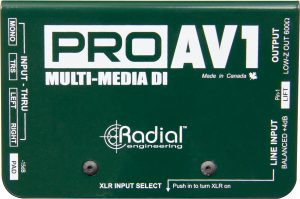

Specifications | ||
---|---|---|
Audio circuit type: | Passive, transformer based | |
Transformer: | Eclipse ET-DB2, 12:1 ratio | |
Number of channels: | Single channel (mono) | |
Frequency response: | 20Hz ~ 18.5KHz (± 0.2dB) | |
Dynamic range: | 128dB | |
Total harmonic distortion: | 0.01% from 20Hz~20kHz @-10dB | |
Phase Deviation: | 1° @ 100Hz; 8° @ 20Hz | |
Input Impedance: | 140k Ohms, unbalanced | |
Output Impedance: | 150 Ohms, balanced | |
Common Mode Rejection Ratio: | 100dB @ 60Hz | |
Maximum Input: | +18dB @ 20Hz | |
Features | ||
Input pad, Mono Sum, Ground lift | ||
Input Connectors: | 1/4", RCA, 3.5mm TRS, XLR | |
Output Connectors: | XLR | |
Extras: | 1/4" thru, RCA thru | |
General | ||
Construction: | 14 gauge steel chassis & shell | |
Size (L x W x D): | 3.25” x 5” x 1.875” | |
Weight: | 0.73kg (1.6 lbs) | |
Shipping size (L x W x D): | 102 x 76 x 165mm (4.00" x 3.00" x 6.50") | |
Shipping weight: | 0.87 kg (1.92 lbs) | |
Power: | Passive, no power required | |
Conditions: | For use in dry locations only between 5°C and 40°C | |
Warranty: | Radial 3-year, transferable |
![](https://www.radialeng.com/wp-content/uploads/2018/05/proav1-block-diagram-768x472.png)

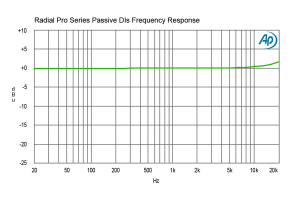

What do these graphs mean? Learn what to look for and why it matters.
