Input Cable
Connecting to the SB-5 is done with an integral 1.5 meter (5ft) cable terminated with a 3.5mm (1/8”) TRS connector. Attached to ensure cable is not lost when stored.
1

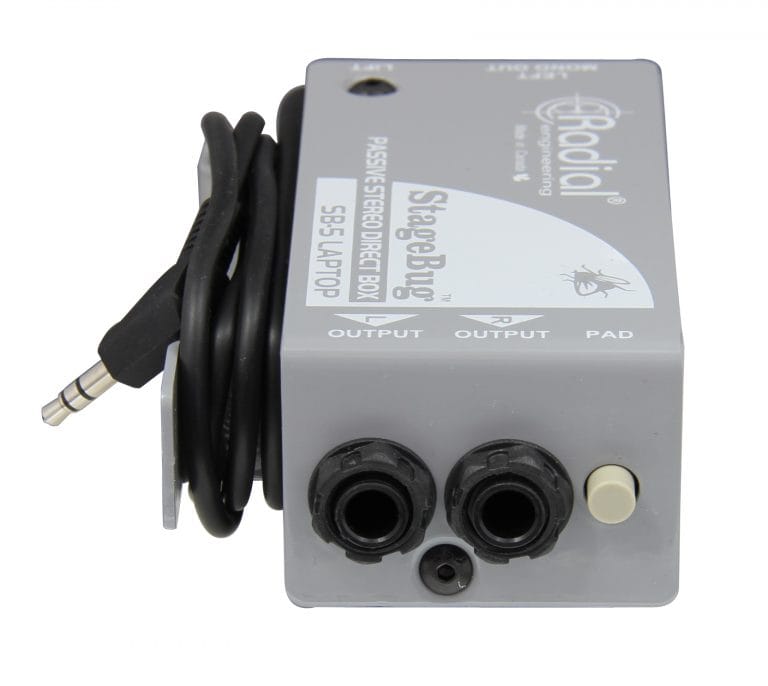

1/4" TRS Out
Set of connectors are balanced TRS for standard mic level output.
2
Pad
Reduces the input sensitivity by 15dB for louder sources.
3
![](https://www.radialeng.com/wp-content/uploads/2018/05/SB-5-output-1-768x713.jpg)
1
2
3

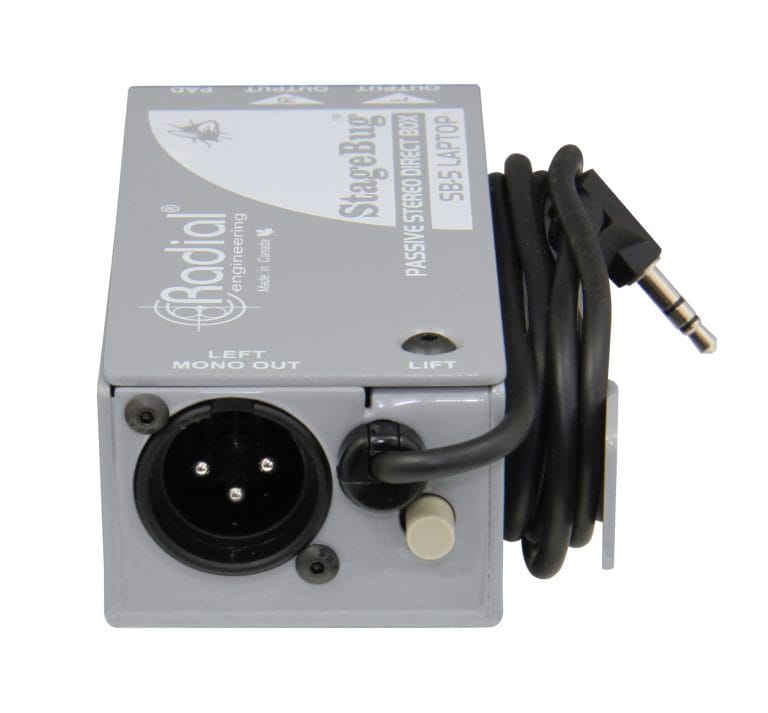

XLR Out
Summed mono output combines the left and right inputs to save valuable mixer channels.
1
Strain Relief
Retains the integral cable to ensure pulling it will not harm the internal circuit board and solder connection.
2
Lift
Used to help eliminate hum and buzz caused by ground loops.
