The Radial Stage Bug SB-5 Laptop is a stereo direct box designed to easily integrate with laptop computers and other audio sources that employ a mini 3.5mm (1/8″ TRS) connector. It features an integral cable and storage cleat for easy deployment. inside, the passive design features two custom transformers that perform the balancing and impedance conversion. Transformer isolation benefits by eliminating hum and buzz caused by ground loops. Although remarkably compact and affordable, the SB-5 produces a exceptionally linear response with almost zero phase shift and less than 0.2% distortion at all frequencies. This makes the Stage Bug SB-5 an excellent choice for audio playback via PA systems, audio-visual integration and portable DJ setups.
Specifications | ||
---|---|---|
Audio circuit type: | Passive, transformer based | |
Number of channels: | Two channels | |
Frequency response: | 20Hz ~ 20KHz (± 1dB) | |
Dynamic range: | 100dB | |

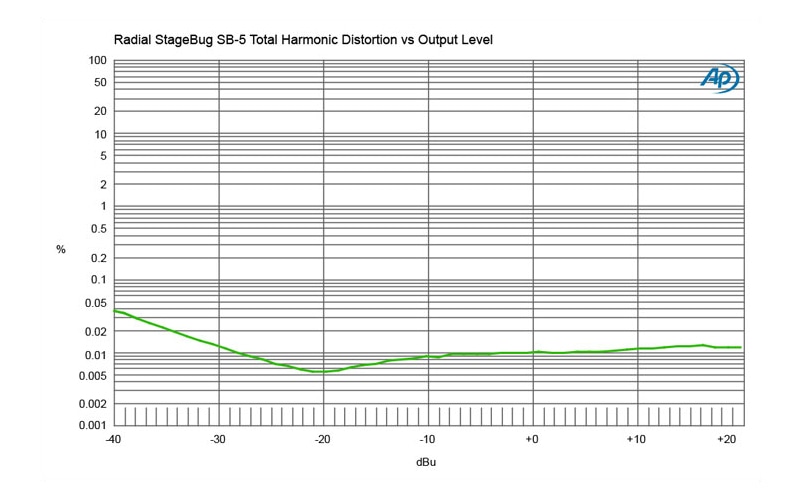

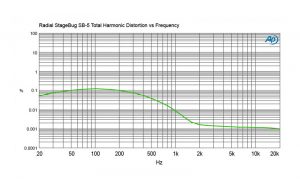

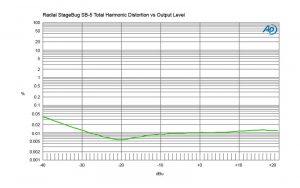

Total harmonic distortion: | 0.01% @ 1kHz | |

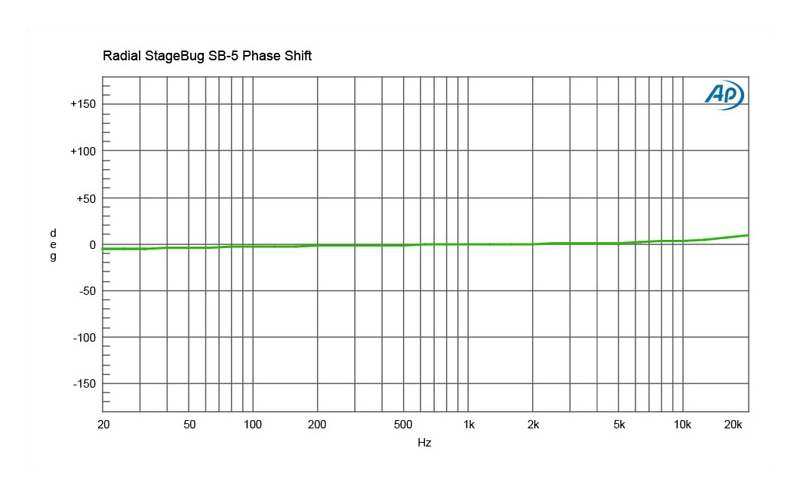

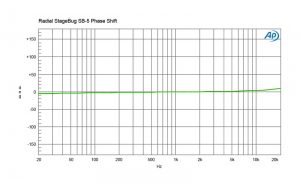

Phase Deviation: | 2° @ 100Hz; 5° @ 50Hz | |
Input Impedance: | 40k Ohms, unbalanced | |
Output Impedance: | 2.8k Ohms, balanced | |
Maximum Input: | +20dB | |
Features | ||
Input pad, Mono Sum, Ground lift | ||
Input Connectors: | 3.5mm | |
Output Connectors: | 1/4" TRS, XLR | |
General | ||
Construction: | 14 gauge steel chassis & outer shell | |
Size (L x W x D): | 4.5" x 1,85" x 1.35" (114mm x 47mm x 34mm) | |
Weight: | 0.55 lbs (250 grams) | |
Shipping size (L x W x D): | 8" x 5" x 3" (203mm x 127mm x 76mm) | |
Shipping weight: | 0.8 lbs (365 grams) | |
Power: | Passive, no power required | |
Conditions: | For use in dry locations only between 5°C and 40°C | |
Warranty: | Radial 3-year, transferable |
![](https://www.radialeng.com/wp-content/uploads/2018/05/sb5-block-diagram.jpg)
Frequency Response
![](https://www.radialeng.com/wp-content/uploads/2018/05/sb5-freq-response-768x320.jpg)

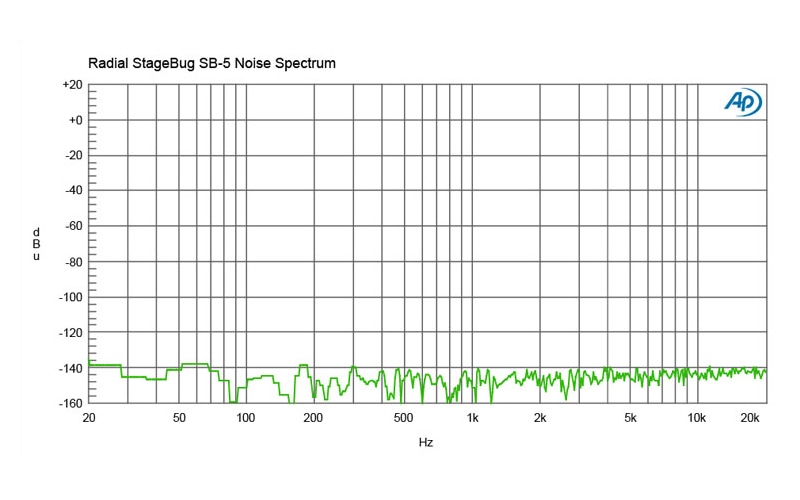

What do these graphs mean? Learn what to look for and why it matters.
