![](https://www.radialeng.com/wp-content/uploads/2018/05/SB-6-Input-768x909.jpg)
1
2
3

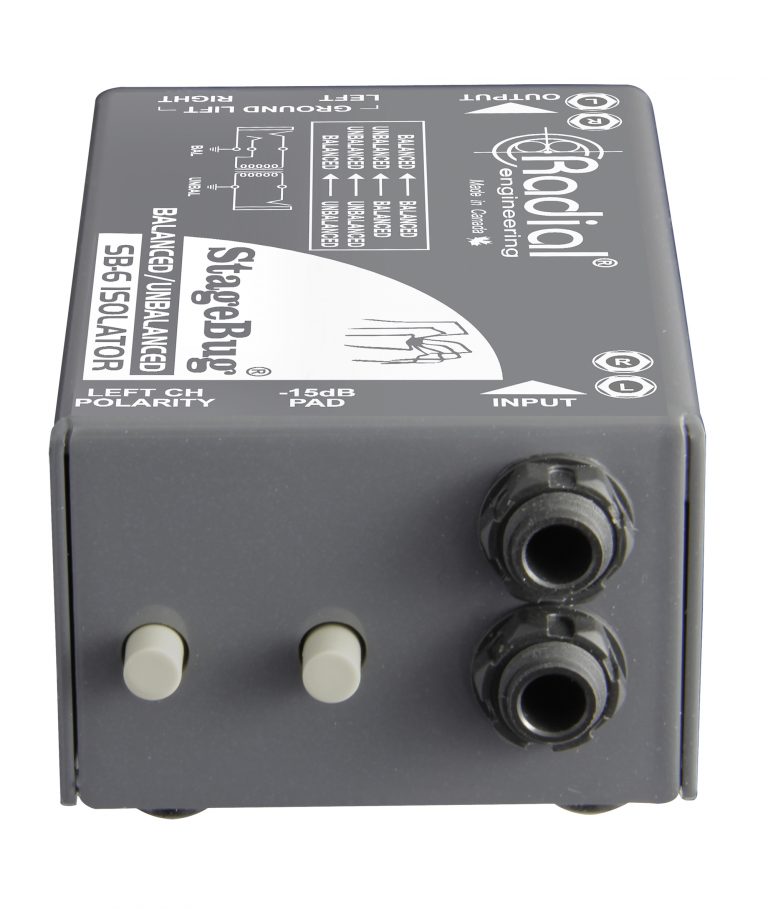

Left Phase
reverses the polarity on the left output to help phase-align stereo signals.
1
Pad
reduces the input sensitivity by 15dB for louder sources.
2
Input
1/4” balanced TRS or unbalanced input. The StageBug SB-6 will auto-configure depending on the jack that is used.
3
![](https://www.radialeng.com/wp-content/uploads/2018/05/SB-6-Output-768x811.jpg)
1
2
3

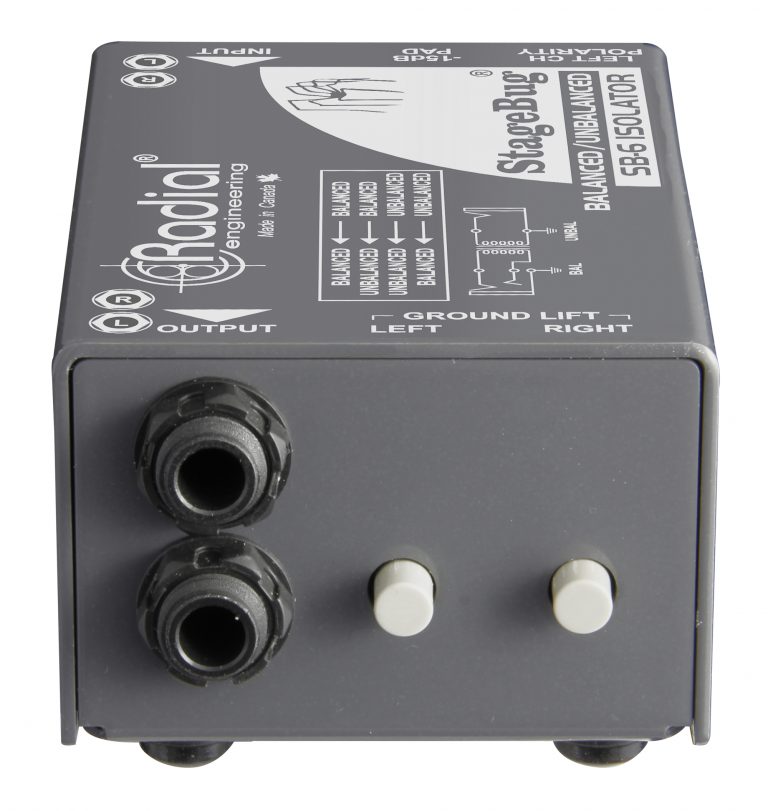

Outputs
1/4” balanced TRS or unbalanced output. The StageBug SB-6 will auto-configure depending on the jack that is used.
1
Ground Lift Left
lifts the ground on the left output to reduce hum and buzz caused by ground loops.
2
Ground Lift Right
lifts the ground on the right output to reduce hum and buzz caused by ground loops.
3
