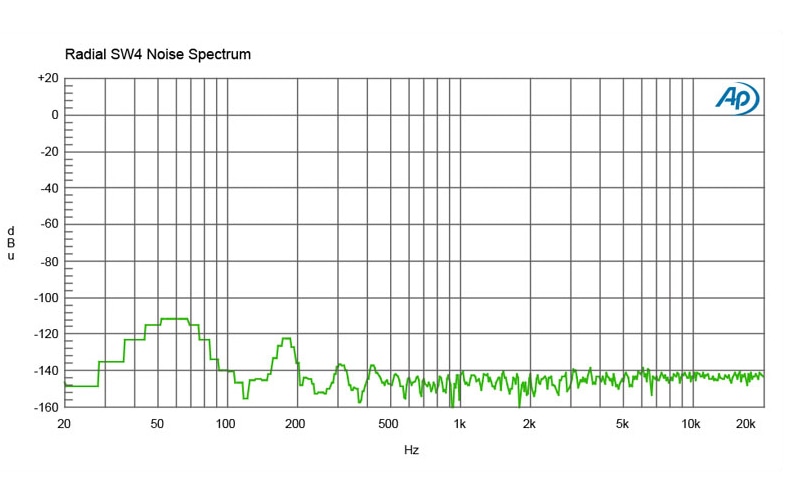

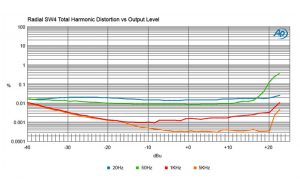

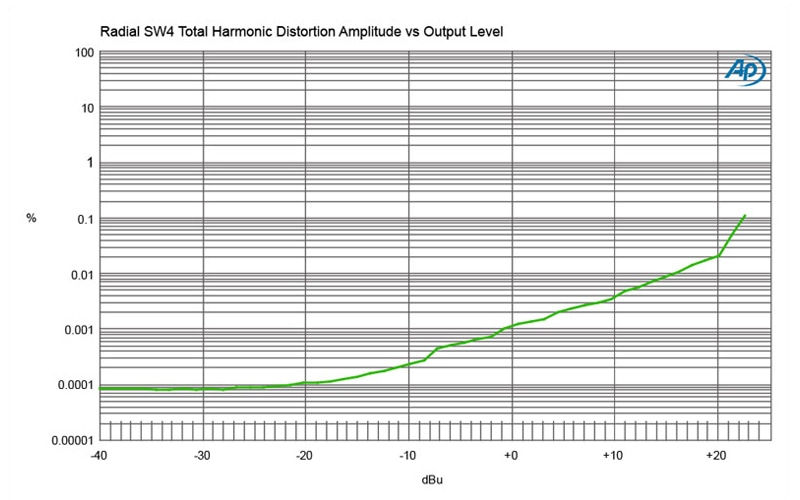

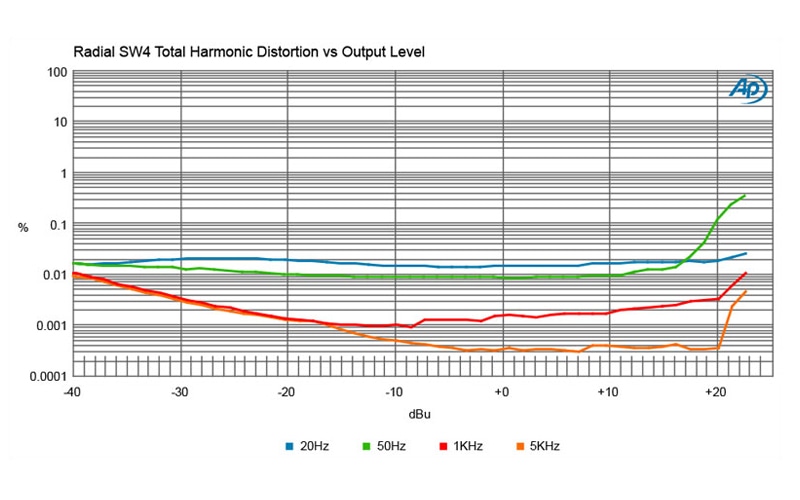

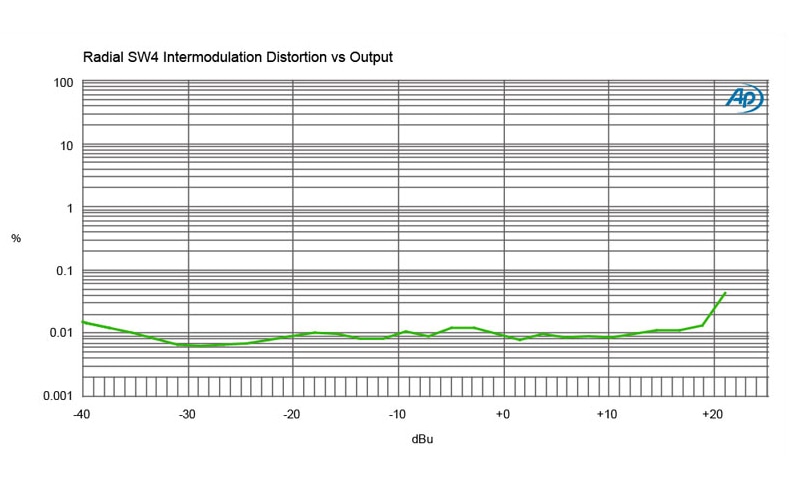

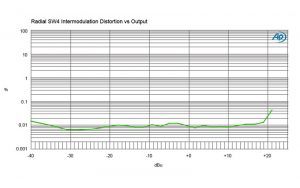

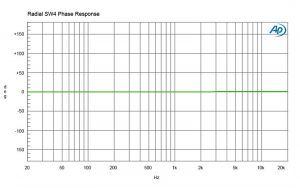

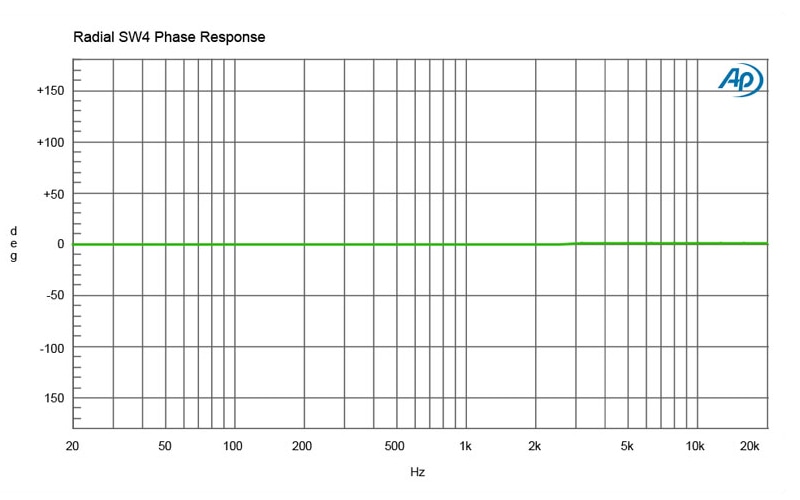

| Specifications | ||
|---|---|---|
| Audio circuit type: | Passive Transformer Coupled with Relay Switching | |
| Transformer: | Eclipse ET-LD2 line output | |
| Number of channels: | 4 x AB select | |
| Frequency response: | 10Hz to 40Khz | |
| Dynamic range: | 136dB | |
| Gain: | -0.26dB with 10k Ohm load, -2.3dB with 600 Ohm load (Channel to Channel gain), + 8dB with 10k Ohm load (Channel to Bus gain) | |
| Total harmonic distortion: | 0.002% | |
| Intermodulation Distortion: | 0.01% | |
| Phase Deviation: | <3° at all frequencies | |
| Input Impedance: | Load impedance in parallel with 10K | |
| Output Impedance: | 160 Ohms (Channel), 500 Ohms (Bus) | |
| Maximum Input: | +26dBu (Channel to Channel), +17dBu (Channel to Bus) | |
| Features | ||
| Input pad, Ground lift | ||
| Input Connectors: | XLR female | |
| Output Connectors: | XLR male, ¼" guitar | |
| Extras: | Bus output: stereo or mono assignable | |
| General | ||
| Construction: | 14 gauge steel chassis & outer shell | |
| Size (L x W x D): | 17.5" x 6" x 1.75" (445mm x 152.5mm x 44.5mm) | |
| Shipping size (L x W x D): | 22" x 10.375" x 4.5" (559mm x 264mm x 114mm) | |
| Power: | External 100V - 240V AC with 48V Phantom | |
| Conditions: | For use in dry locations only between 5°C and 40°C | |
| Warranty: | Radial 3-year, transferable | |

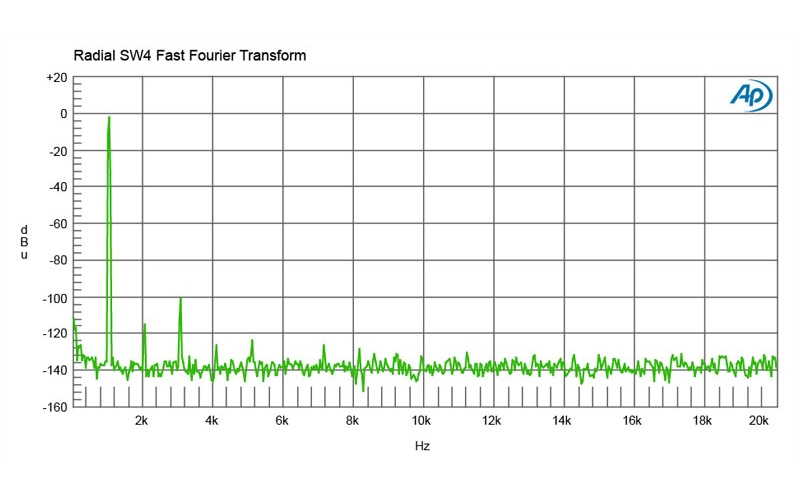

Frequency Response
