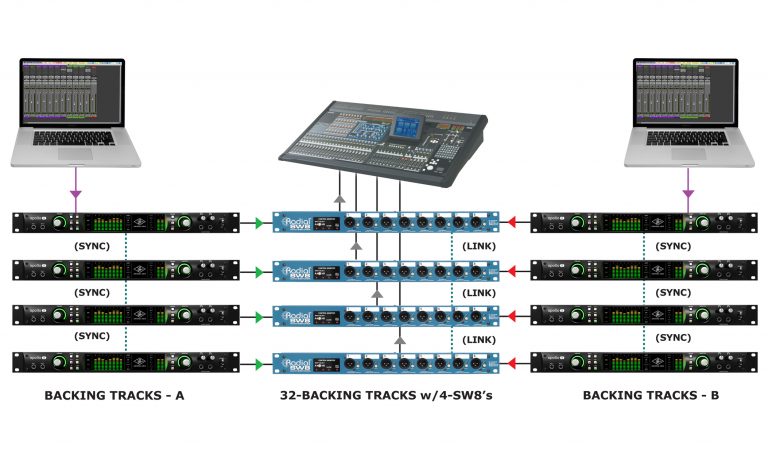

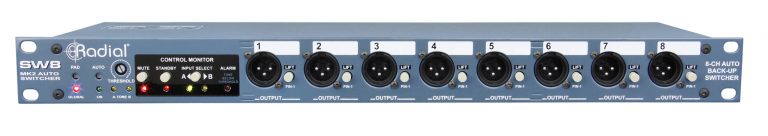

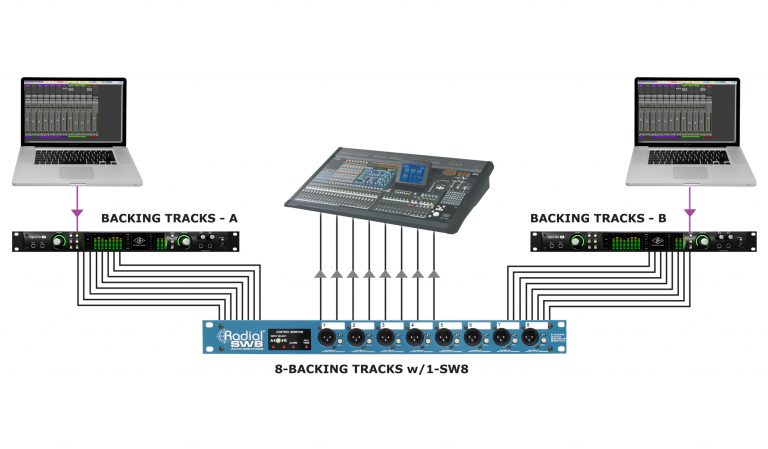

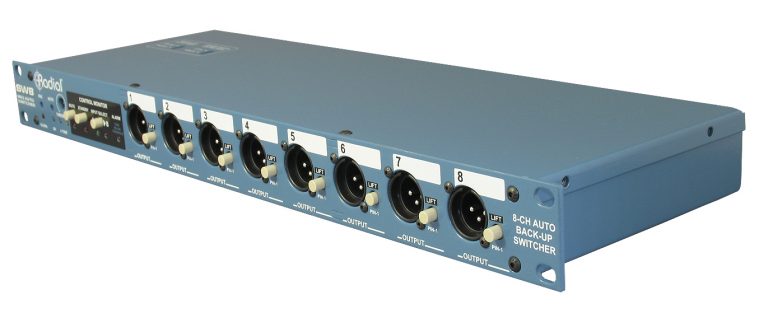

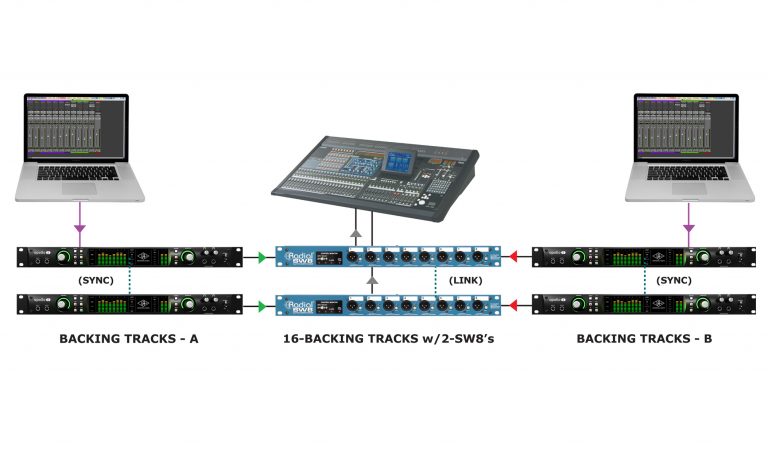

The Radial SW8 is an 8-channel auto-switcher designed to switch balanced and unbalance audio sources and deliver them via a straight wire or transformer coupled interface. As solid wire specifications cannot be measured, the graphs below depict the performance of the SW8 using the transformer isolated XLR outputs. it is also important to note that the direct box outputs are designed to reduce a +4dB balanced source to a lower mic level source, thus resulting in a -20dB drop in level. This enables the SW8 to be used in a typical snake system without fear or overload and crosstalk.
Specifications

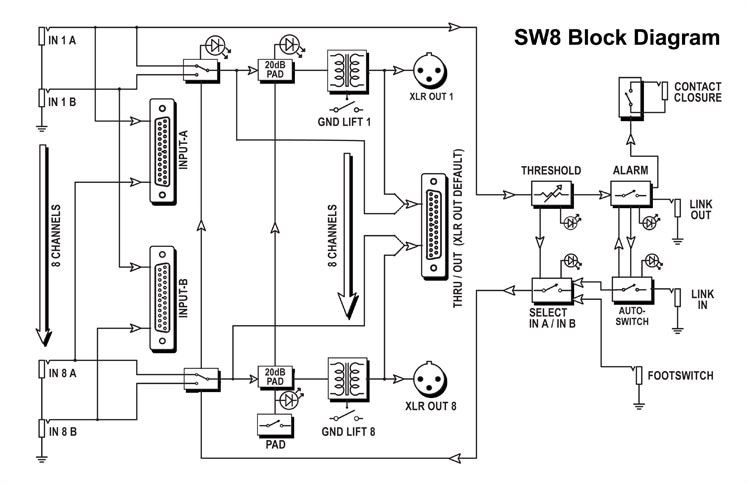

Block Diagram

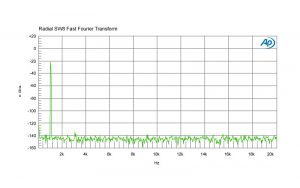

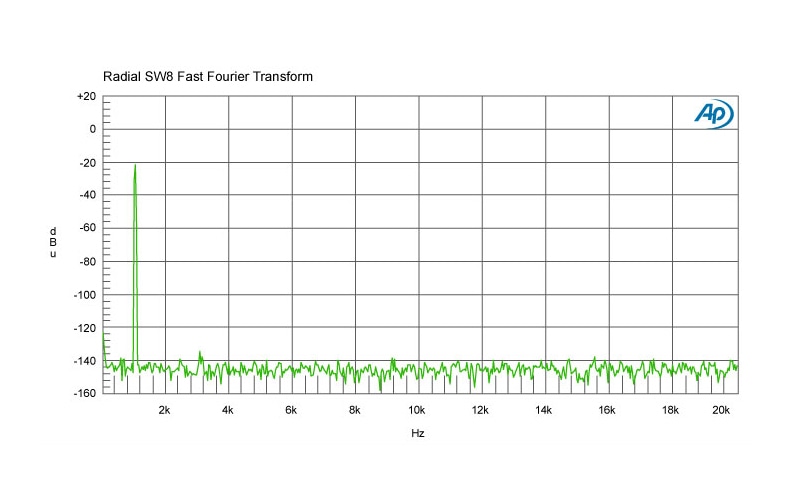

Graphs
Specifications | ||
---|---|---|
Audio circuit type: | Passive signal path with active relay switching | |
Transformer: | Eclipse ET-DB2 | |
Number of channels: | 8 | |
Frequency response: | 20Hz ~ 20KHz | |
Dynamic range: | >120dB | |
Gain: | -20dB | |

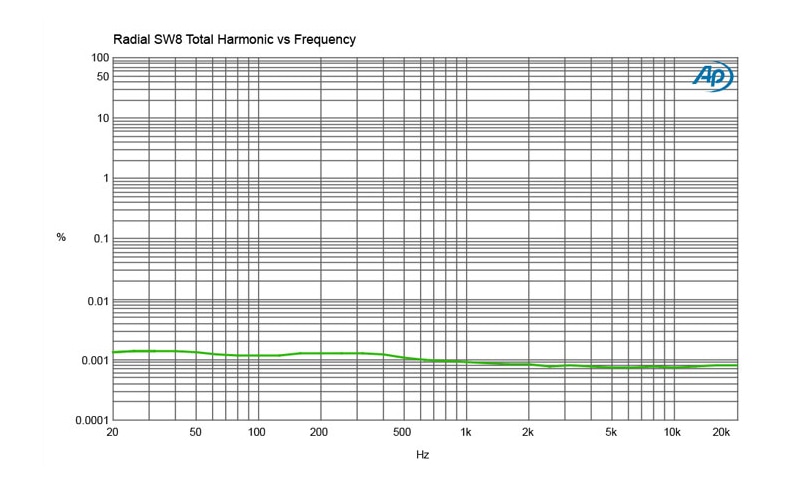

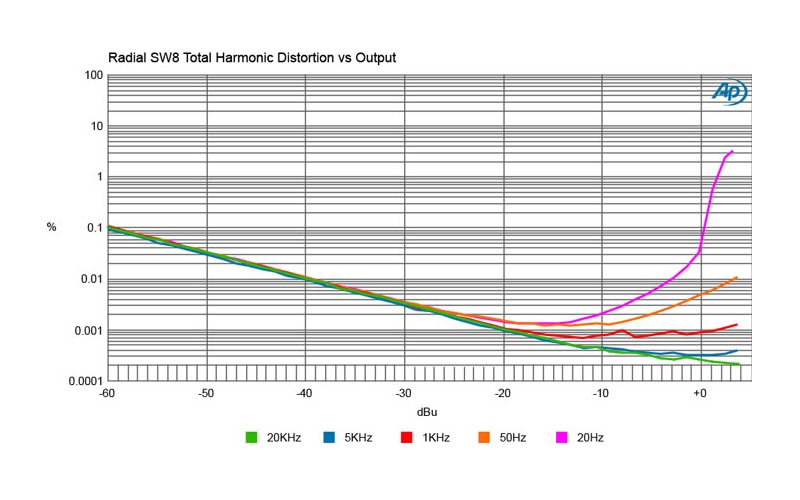

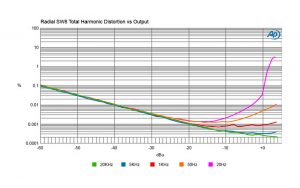

Total harmonic distortion: | 0.002% | |

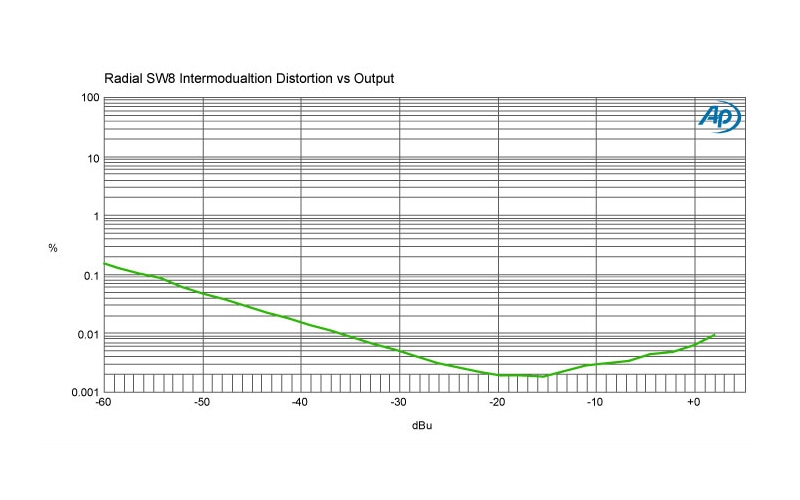

Intermodulation Distortion: | >0.002% | |

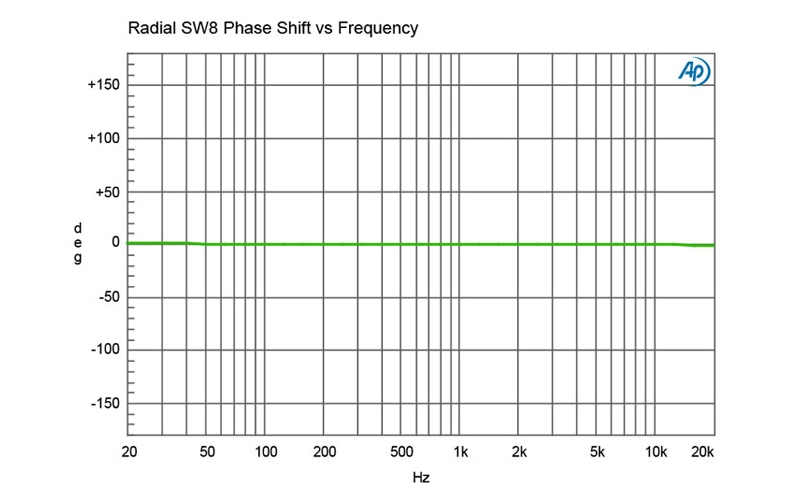

Phase Deviation: | -2° @ 20Hz | |
Input Impedance: | 140k Ohms, balanced | |
Output Impedance: | 150 Ohms, balanced | |

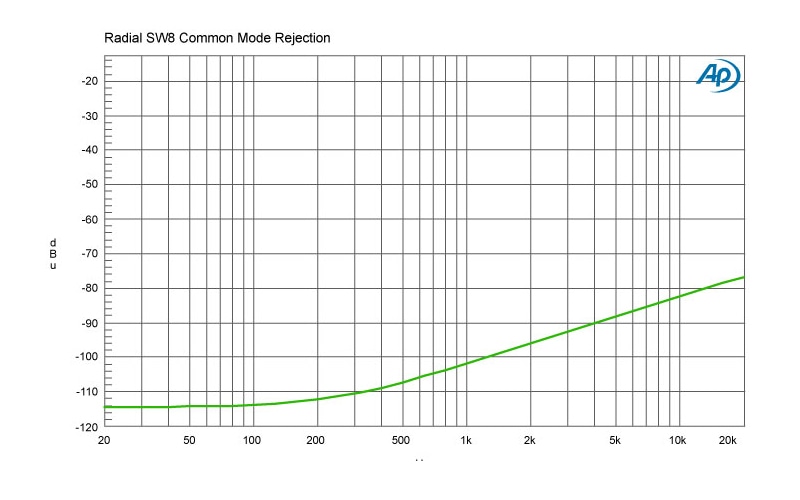

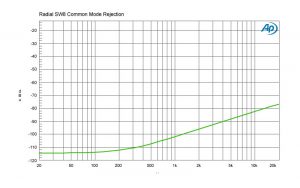

Common Mode Rejection Ratio: | -112dB at 50/60Hz | |
Equivalent Input Noise: | -95dBu | |

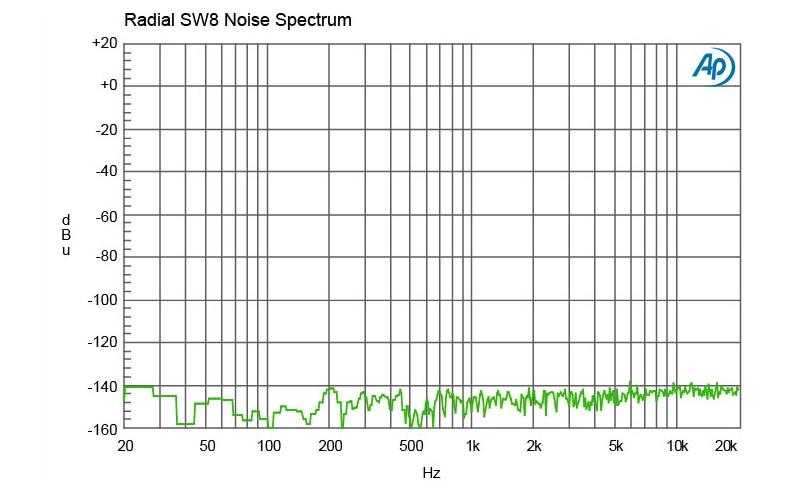

Noise Floor: | -115dBu | |
Maximum Input: | 26dBu | |
Features | ||
Input pad, Ground lift, Remote Footswitch | ||

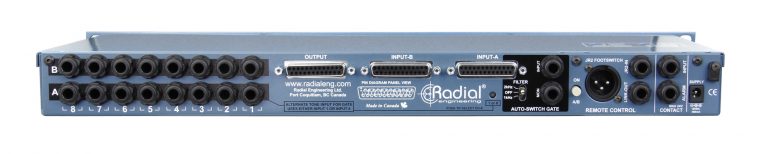

Input Connectors: | 1/4" TRS, D-sub | |
Output Connectors: | XLR, D-sub | |
Extras: | Contact Alarm Input, JR-2 XLR | |
General | ||
Construction: | 14 gauge steel chassis & outer shell | |
Size (L x W x D): | 17.5" x 6" x 1.75" (44.5cm x 15.25cm x 4.5cm) | |
Weight: | 9.2 lb (4.2kg) | |
Shipping size (L x W x D): | 22" x 10.375" x 4.5" (55.9cm x 26.4cm x 11.4cm) | |
Shipping weight: | 9.7 lb (4.4 kg) | |
Power: | Two +15VDC/400mA power supplies included | |
Conditions: | For use in dry locations only between 5°C and 40°C | |
Warranty: | Radial 3-year, transferable |
Frequency Response
![](https://www.radialeng.com/wp-content/uploads/2018/04/sw8-graph-freq-response.jpg)
What do these graphs mean? Learn what to look for and why it matters.
