Specifications
Block Diagram

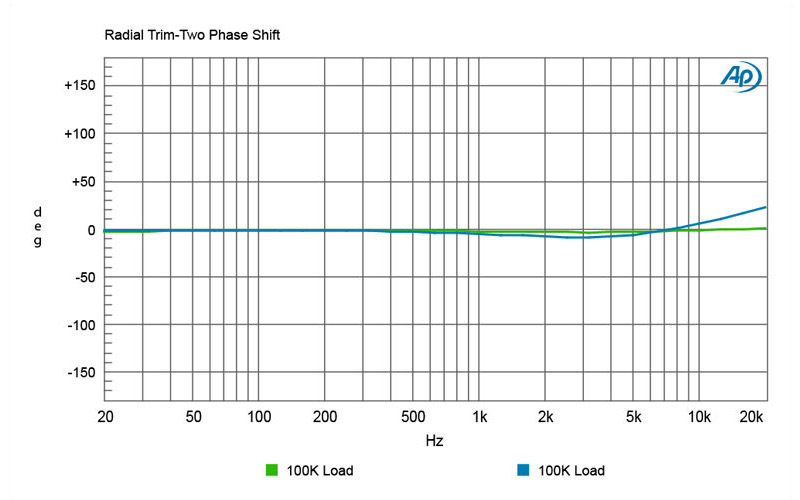

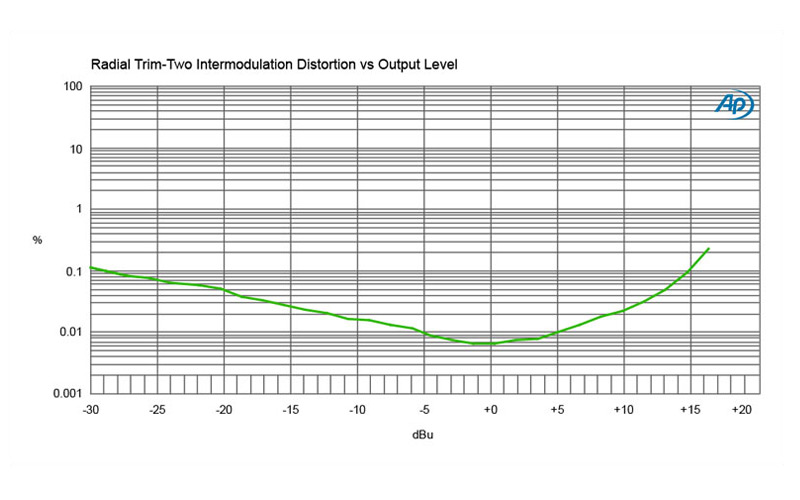

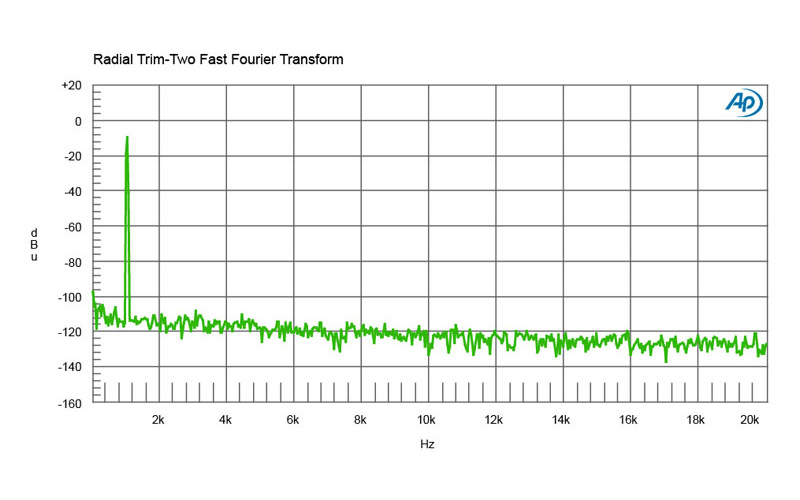

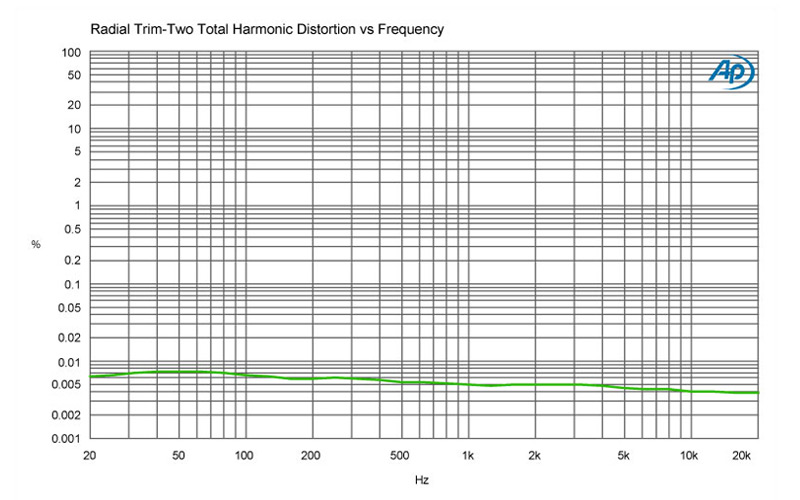

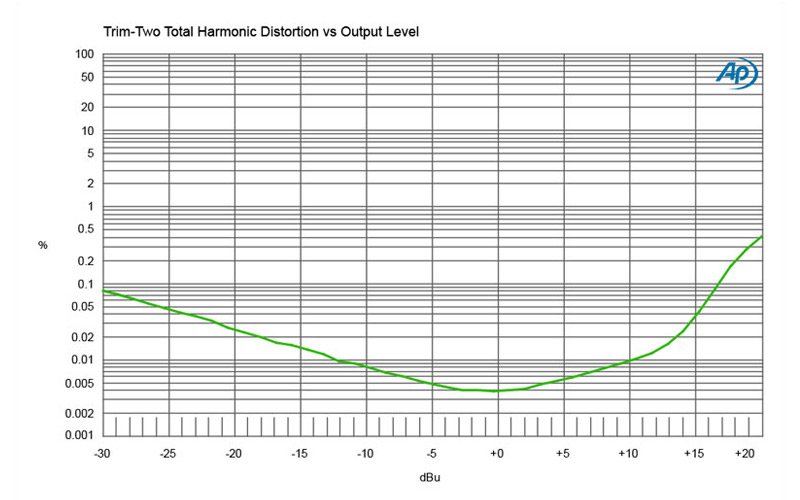

Graphs
| Specifications | ||
|---|---|---|
| Audio circuit type: | Passive, transformer based | |
| Transformer: | Custom | |
| Number of channels: | Dual channel (stereo) | |
| Frequency response: | 20Hz to 20KHz | |
| Dynamic range: | >100dB | |
| Total harmonic distortion: | 0.009% | |
| Phase Deviation: | <10° | |
| Input Impedance: | 10K Ω, unbalanced | |
| Output Impedance: | 2.8K Ω, balanced | |
| Maximum Input: | +20dB @ 20Hz | |
| Features | ||
| Input pad, Mono Sum, Ground lift | ||
| Input Connectors: | 1/4" RCA and 3.5mm input | |
| Output Connectors: | XLR-M output | |
| General | ||
| Construction: | 14 gauge steel chassis & outer shell | |
| Size (L x W x D): | 3.3" x 5.0" x 2" (84 x 127 x 48mm) | |
| Weight: | 1.55 lbs (0.70 kg) | |
| Shipping size (L x W x D): | 4" x 3" x 6.5" (102 x 76 x 165mm) | |
| Shipping weight: | 1.92 lbs (0.87 kg) | |
| Power: | Passive, no power required | |
| Conditions: | For use in dry locations only between 5°C and 40°C | |
| Warranty: | Radial 3-year, transferable | |
Frequency Response
