The Twinline is an effects loop router that may be remotely switched to follow the active amplifier in an advanced stage setup. This enables the pedalboard or effects rack to utilize the two amplifier rear-panel effects loops while sharing the same effects. The circuit design is optimized to work from -30dB to +10dB, providing plenty of range for both guitar pedals and professional studio effects while introducing minimal artefact.
Specifications

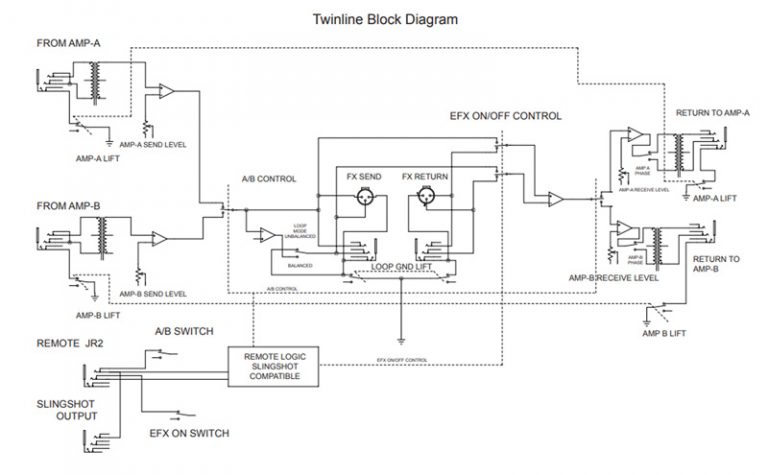

Block Diagram

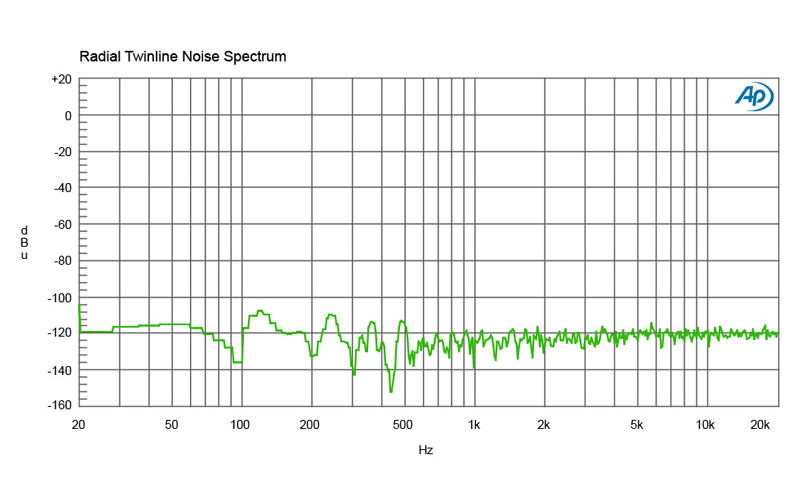

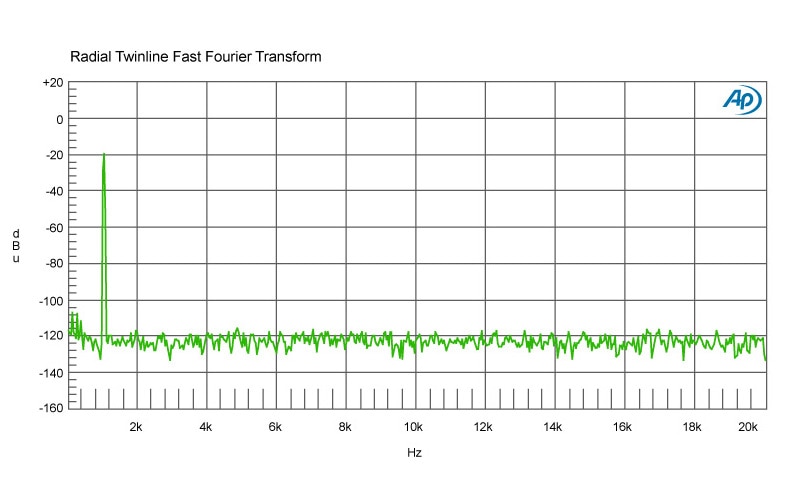

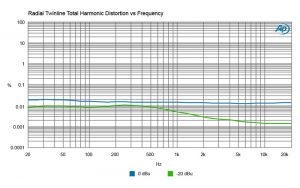

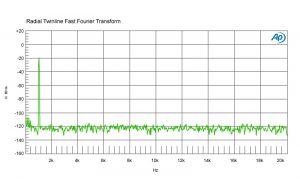

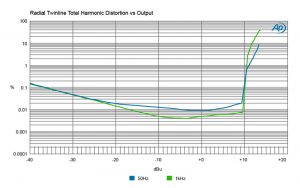

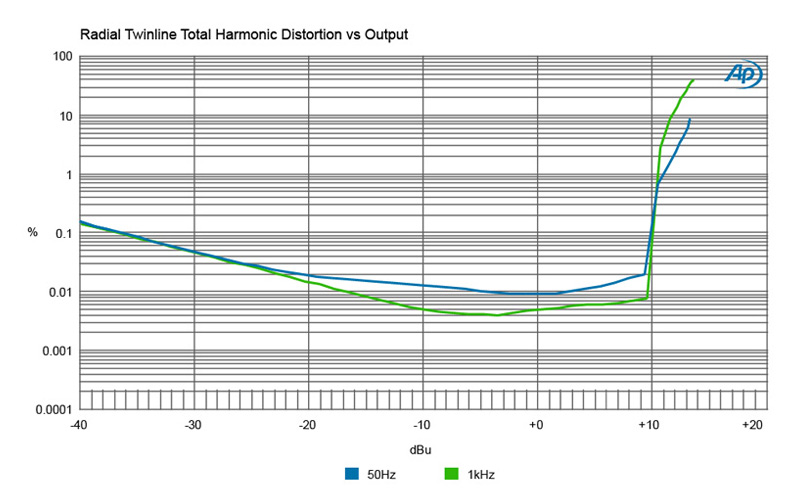

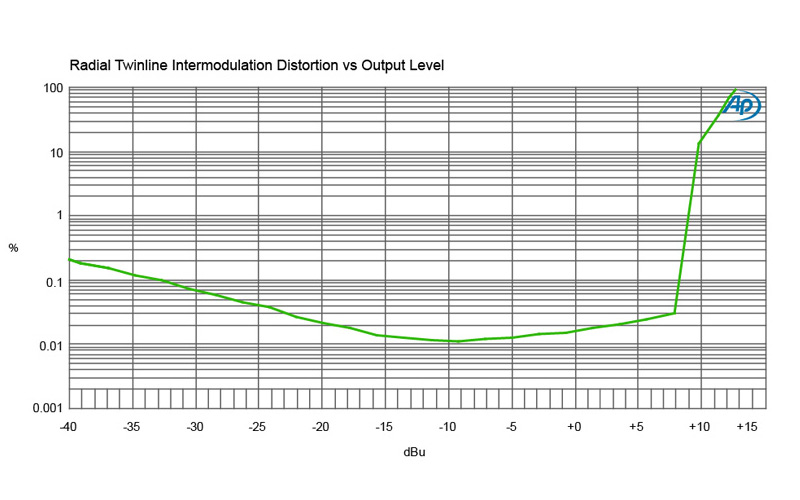

Graphs
| Specifications | ||
|---|---|---|
| Audio circuit type: | Class-A FET with transformer isolation | |
| Dynamic range: | 105dB | |
| Gain: | Variable from -2.7dB ~ +3.6dB (From Amp Jack to EFX Send) | |

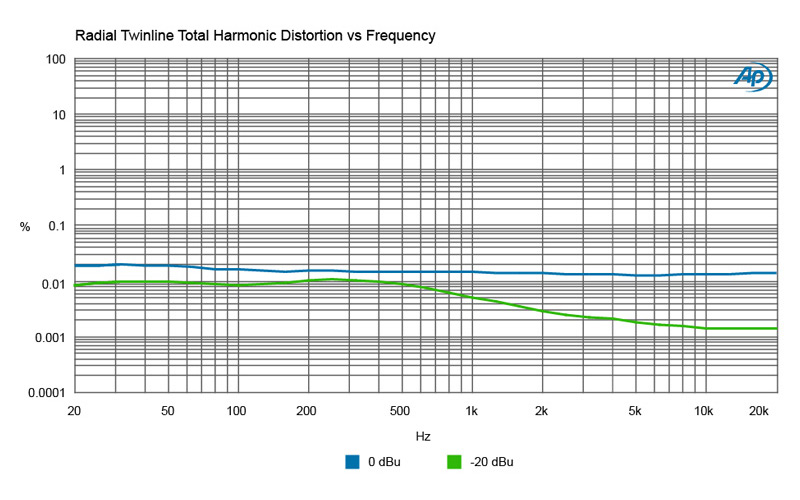

| Total harmonic distortion: | 0.005% @ 1kHz | |

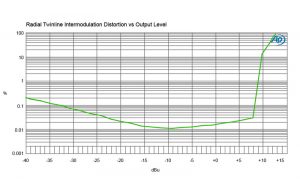

| Intermodulation Distortion: | 0.01% | |
| Input Impedance: | 10KΩ (From Amp), 1MΩ (FX Return) | |
| Output Impedance: | 2200Ω (To Amp), 1KΩ (FX Send) | |

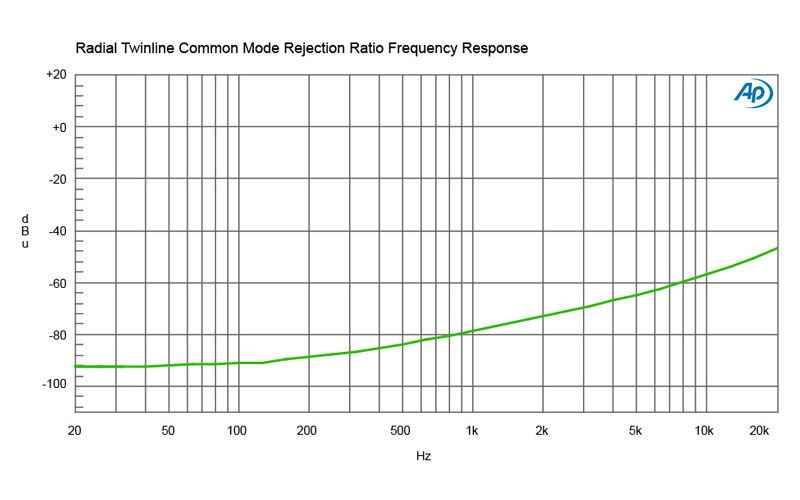

| Common Mode Rejection Ratio: | 91dB @ 55Hz | |
| Equivalent Input Noise: | -103dB | |

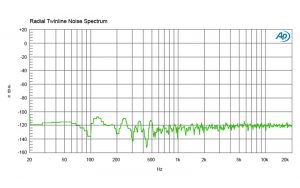

| Noise Floor: | -92dBu | |
| Maximum Input: | +25dBu (From Amp Jack), +8dBu (FX Input) | |
| Features | ||
| Ground lift, Effects Loop | ||
| Input Connectors: | Balanced ¼" TRS or unbalanced ¼" | |
| Output Connectors: | Balanced ¼" TRS or unbalanced ¼" | |
| Extras: | Unity Gain Control Position: About 10 O'Clock on send & return EFX | |
| General | ||
| Construction: | 14-gauge steel | |
| Size (L x W x D): | 4.3" x 1.9" x 5.8" (109mm x 48mm x 147mm) | |
| Weight: | 2.4lbs (1.1kg) | |
| Shipping size (L x W x D): | 4.7" x 2.6" x 11.6" (119mm x 66mm x 294mm) | |
| Shipping weight: | 3.4lbs (1.54kg) | |
| Power: | 15V 100mA Unregulated/Center Pin Positive | |
| Conditions: | For use in dry locations only between 5°C and 40°C | |
| Warranty: | Radial 3-year, transferable | |
Frequency Response
