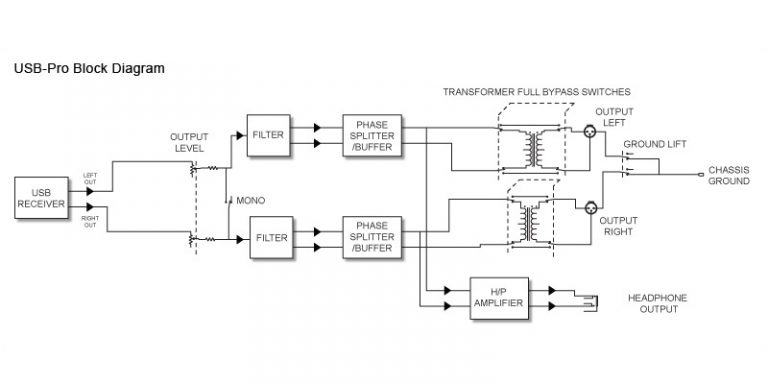

Block Diagram
Graphs
| Specifications | ||
|---|---|---|
| Audio circuit type: | Custom decoder with analog line drive | |
| Frequency response: | 5Hz ~ 40kHz (30Hz ~ 18kHz with isolation) | |
| Dynamic range: | >90dB | |
| Gain: | +8dBu | |
| Total harmonic distortion: | 0.01% | |
| Output Impedance: | 250Ω nominal | |
| Noise Floor: | -90dB | |
| Maximum Output: | +8dBu | |
| Combatibility: | Software compatibility: Windows XP/Vista/Win7/Win8/Win10 and Mac OS, Sound file compatibility: WDM, MME, CoreAudio, DirectSound, WASAPI and .WAV | |
| Features | ||
| Mono Sum, Ground lift, Level Control, Headphone | ||
| Input Connectors: | USB connector B-type | |
| Output Connectors: | 2 x XLR-M, 3.5mm headphone output | |
| Extras: | USB 1.1 full speed, Sampling Rate: 44.1kHz / 48kHz / 96kHz auto sensing, 75dBu stereo separation | |
| General | ||
| Construction: | 14-gauge steel | |
| Size (L x W x D): | 5.0" x 3.3" x 2" (127 x 84 x 48mm) | |
| Weight: | 1.5 lb (0.68kg) | |
| Power: | USB bus powered 500mA maximum | |
| Conditions: | For use in dry locations only between 5°C and 40°C | |
| Warranty: | Radial 3-year, transferable | |

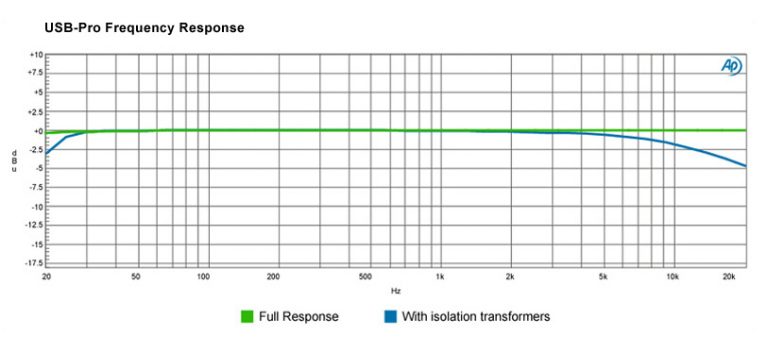

Frequency Response
