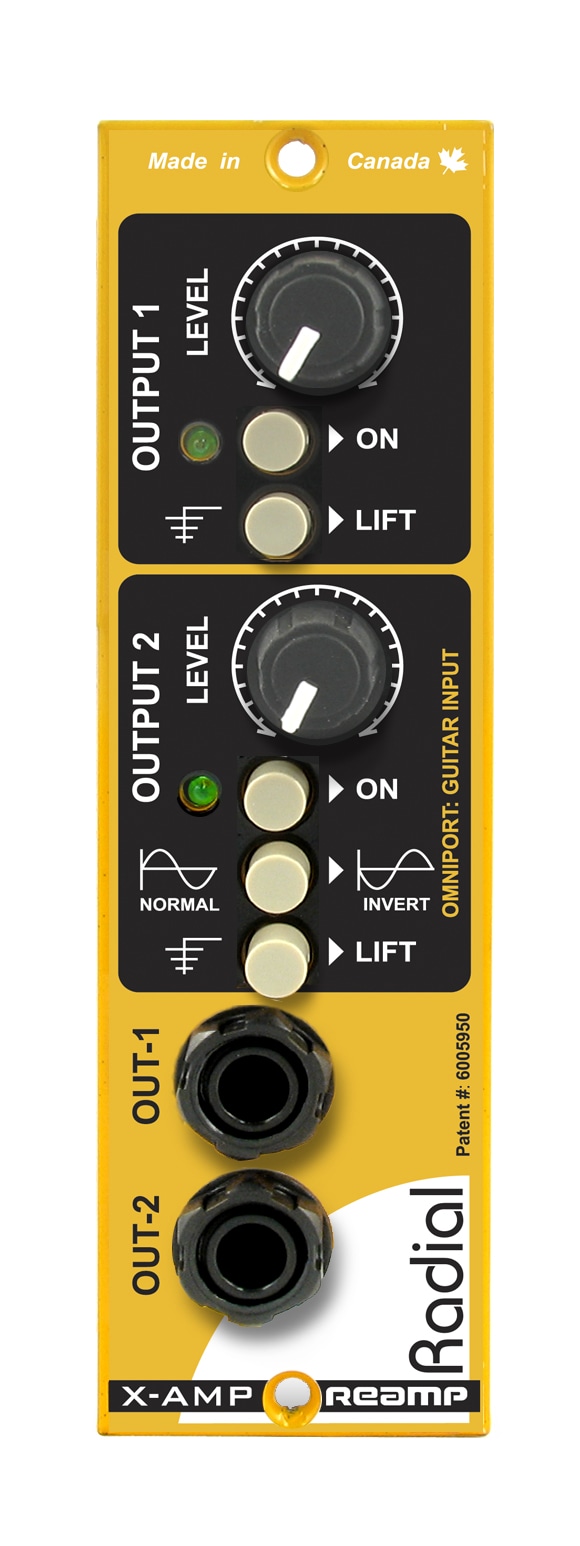

Lets you adjust the output level to amp-1 right from the control room. This is particularly useful for fine-tuning front end drive distortion.
1
On-Off
Lets you mute the output going to amp-1.
2
Lift
Lifts the ground on the ¼” cable so it eliminates a potential ground loop between the 500 series rack and the guitar amp.
3
Output-2 Level
Lets you adjust the output level to amp-2 right from the control room. This is particularly useful for fine-tuning front-end drive distortion.
4
On-Off
Lets you mute the output going to amp-2.
5
180°
Reverses the phase going to amp-2 to time-align the amps if needed; can also be used to create some interesting effects.
6
Lift
Lifts the ground on the ¼” cable so that it eliminates a potential ground loop between the 500 series rack and the guitar amp.
7
Outputs
Two outputs let you drive two amps at the same time. These are transformer isolated to help eliminate hum and buzz caused by ground loops. Class-A buffered to let you drive long cables.
8
OmniPort
Configured as a Hi-Z guitar input to allow the X-Amp to be used like an ABY box to allow a guitarist to play two amps at once.
